PU8281Si10.00A101

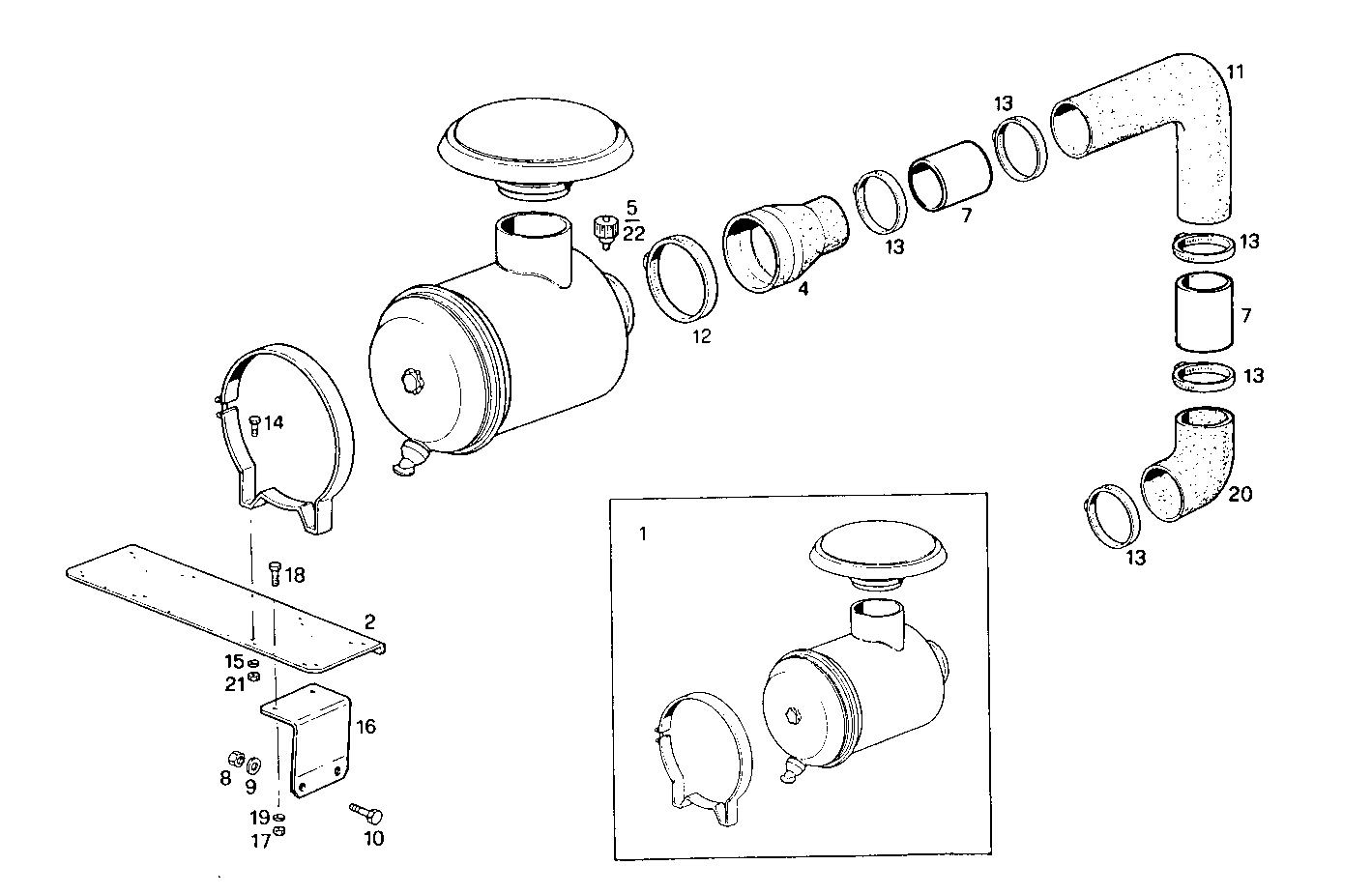

A21210901 DRY AIR CLEANER - with mechanical clogging gauge

Iveco/FPT DRY AIR CLEANER

Item Part number Description
1 8016665 AIR CLEANER ASSY
2 8023104 SUPPORT
4 4917737 RUBBER SLEEVE
5 4936137 CHOCKED FILTER INDIC. MECHANICAL
7 8109322 AIR PIPE/DUCT RIGHT
8 17038421 HEXAGON NUT M12 (8)
9 17091074 WASHER Ø12X24X2,8 MM
10 16610124 HEXAGON BOLT M12X40 MM
11 8020230 FILTER HOSE
12 17765691 CLIP Ø120/140 MM
13 17765491 CLIP Ø70/90 MM
14 16607624 SCREW M10X25
15 17090474 SPRING WASHER Ø10X27 MM SP=2,5
16 8109320 RETAINER
17 17037931 HEXAGON NUT M8X1,25
18 16603724 HEXAGON BOLT M6X20 MM (8.8)
19 17089774 SPRING WASHER Ø8,4X22 MM SP=2,4 MM
20 8106719 CONNECTOR SLEEVE
21 17038121 HEXAGON NUT M10
