PU8281Si10.00A101

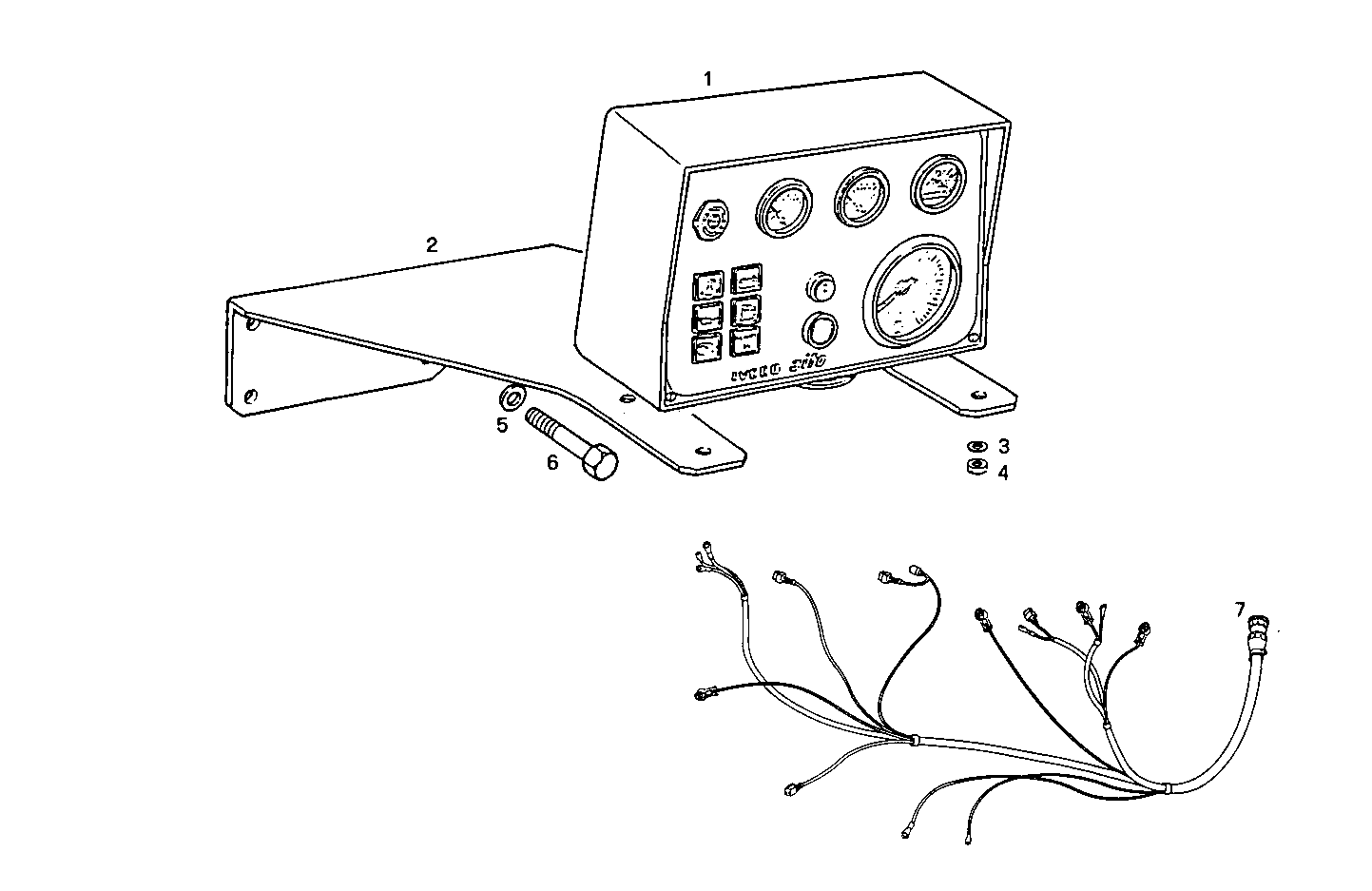

A38680900/01 ELECTRIC INSTRUMENTS PANEL - VEGLIA 24V
| Item | Part number | Description |
|---|---|---|
| 1 | 8005746 | INSTRUMENTS BOARD ASSY |
| 2 | 8111182 | RETAINER |
| 3 | 17088474 | WASHER Ø6X12 MM |
| 4 | 17037821 | HEXAGON NUT M6X1 |
| 5 | 17090174 | SPRING WASHER Ø10X20 MM |
| 6 | 15970621 | SCREW M10X1,25X22 |
| 7 | 8107644 | ENGINE HARNESS ASSY |
