PU8281SI10.00A103

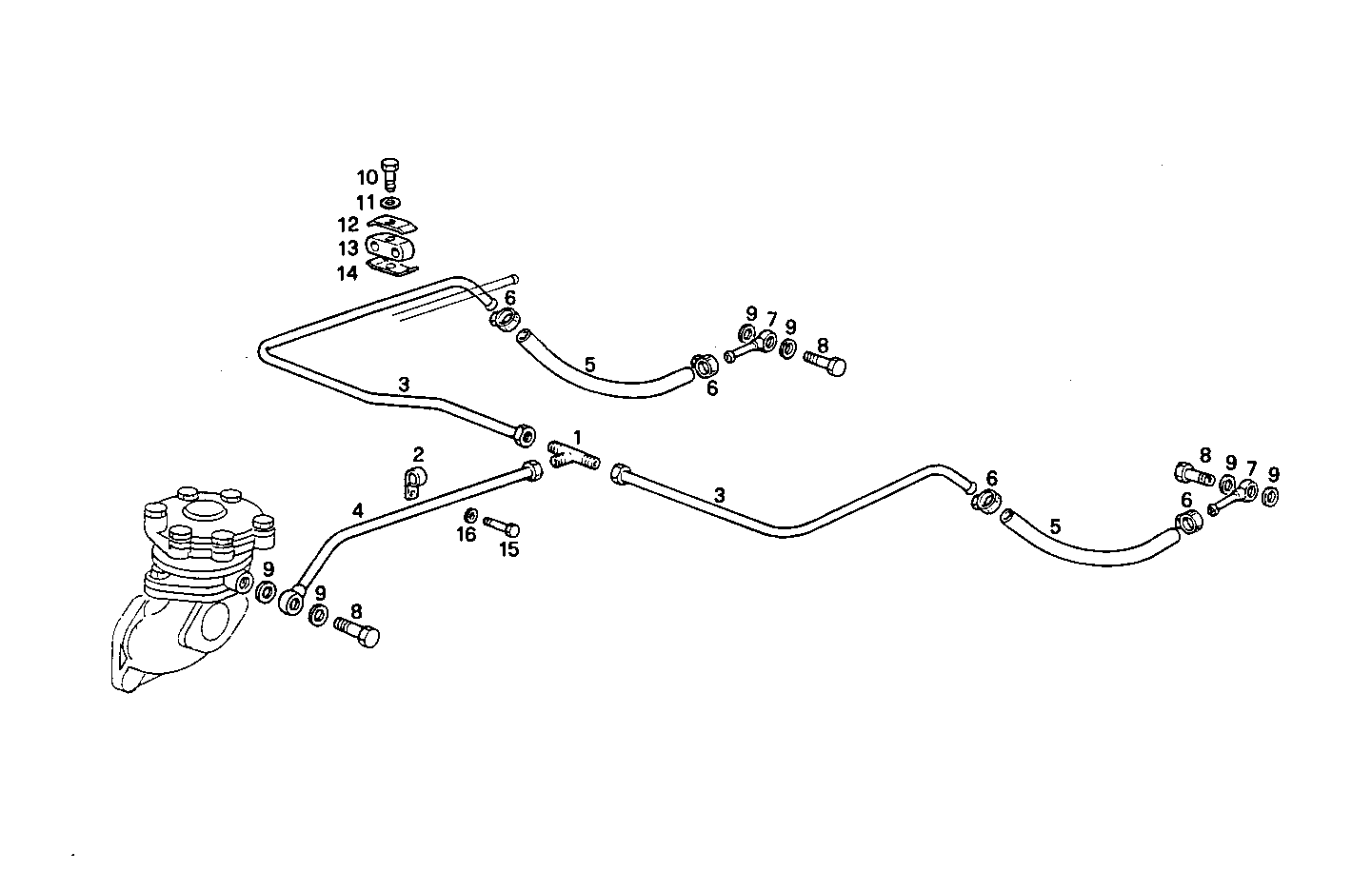

0450.033/02 ENGINE BREATHERS
| Item | Part number | Description |
|---|---|---|
| 1 | 4677909 | T-COUPLING |
| 2 | 4656139 | FASTENING BRACKET |
| 3 | 8108689 | BREATHER PIPE |
| 4 | 8014189 | AIR PIPE/DUCT |
| 5 | 17724487 | RUBBER HOSE �6X13 MM |
| 6 | 18087991 | CLIP �8/16 MM |
| 7 | 8014188 | SWIVEL COUPLING |
| 8 | 4864080 | SCREW CONNECTOR M10X1,25 |
| 9 | 4858606 | GASKET �10X14X1 MM |
| 10 | 10977921 | HEXAGON BOLT M5X18 MM |
| 11 | 11199271 | SPRING WASHER �5X10 MM |
| 12 | 4641873 | RETAINER BOTTOM |
| 13 | 4592280 | DOWEL |
| 14 | 4641874 | RETAINER TOP |
| 15 | 16605624 | HEXAGON BOLT M8X25 MM (8.8) |
| 16 | 17089574 | WASHER �8X16 MM |
