PU8281SI10.00A103

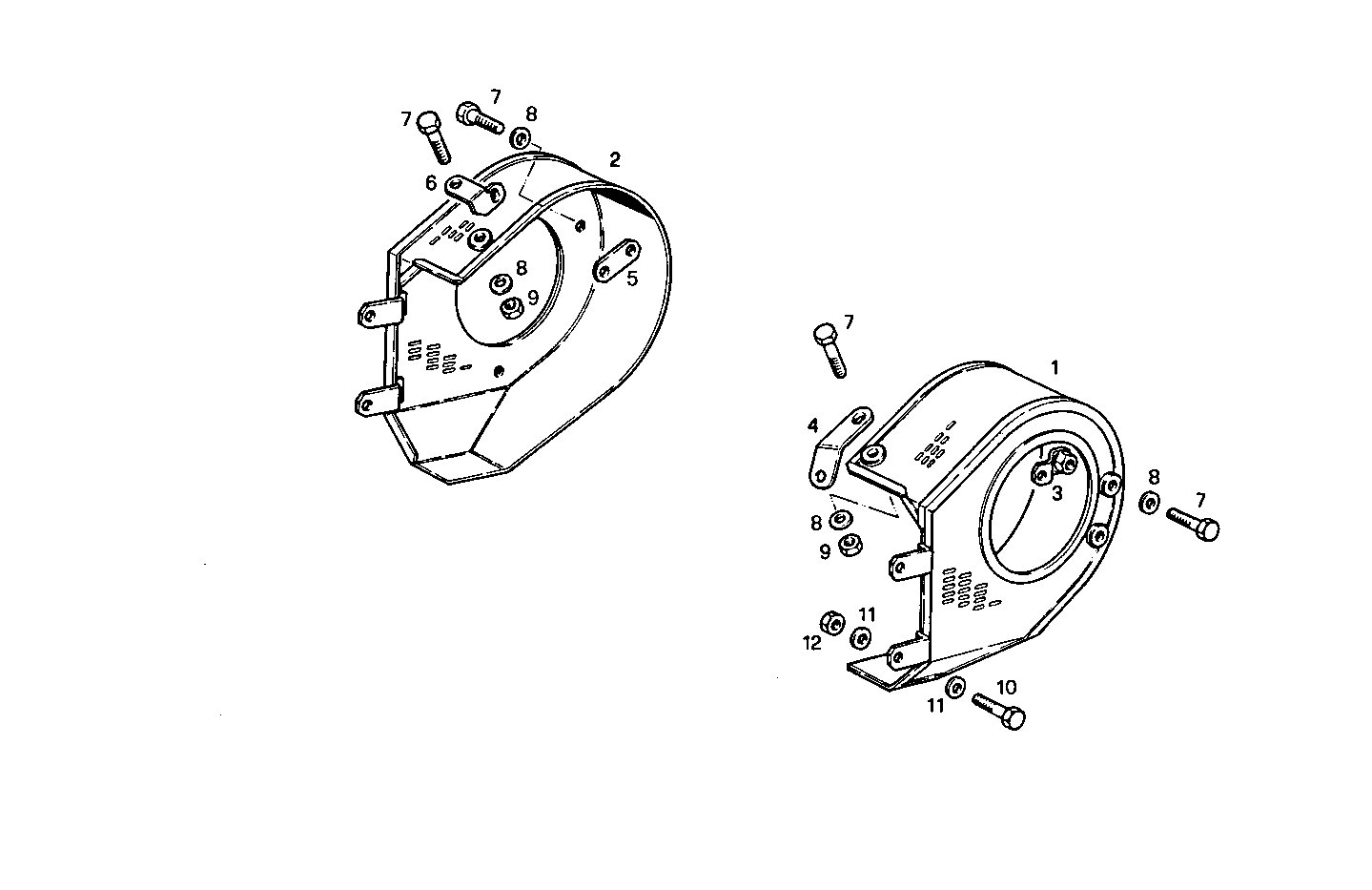

A48030001 GUARD - for turbocharger
| Item | Part number | Description |
|---|---|---|
| 1 | 8107194 | PROTECTION |
| 2 | 8107195 | PROTECTION |
| 3 | 8107203 | RETAINER |
| 4 | 8008962 | RETAINER |
| 5 | 8107204 | RETAINER |
| 6 | 8107409 | RETAINER |
| 7 | 16043221 | HEXAGON BOLT M8X16 MM |
| 8 | 11193879 | SPRING WASHER Ø8X16 MM |
| 9 | 17037931 | HEXAGON NUT M8X1,25 |
| 10 | 15970521 | HEXAGON BOLT M10X20 MM |
| 11 | 11190579 | SPRING WASHER Ø10X20 MM SP=2,3 |
| 12 | 12164711 | HEXAGON NUT M10X1,25 |
