PU8281SI10.00A103

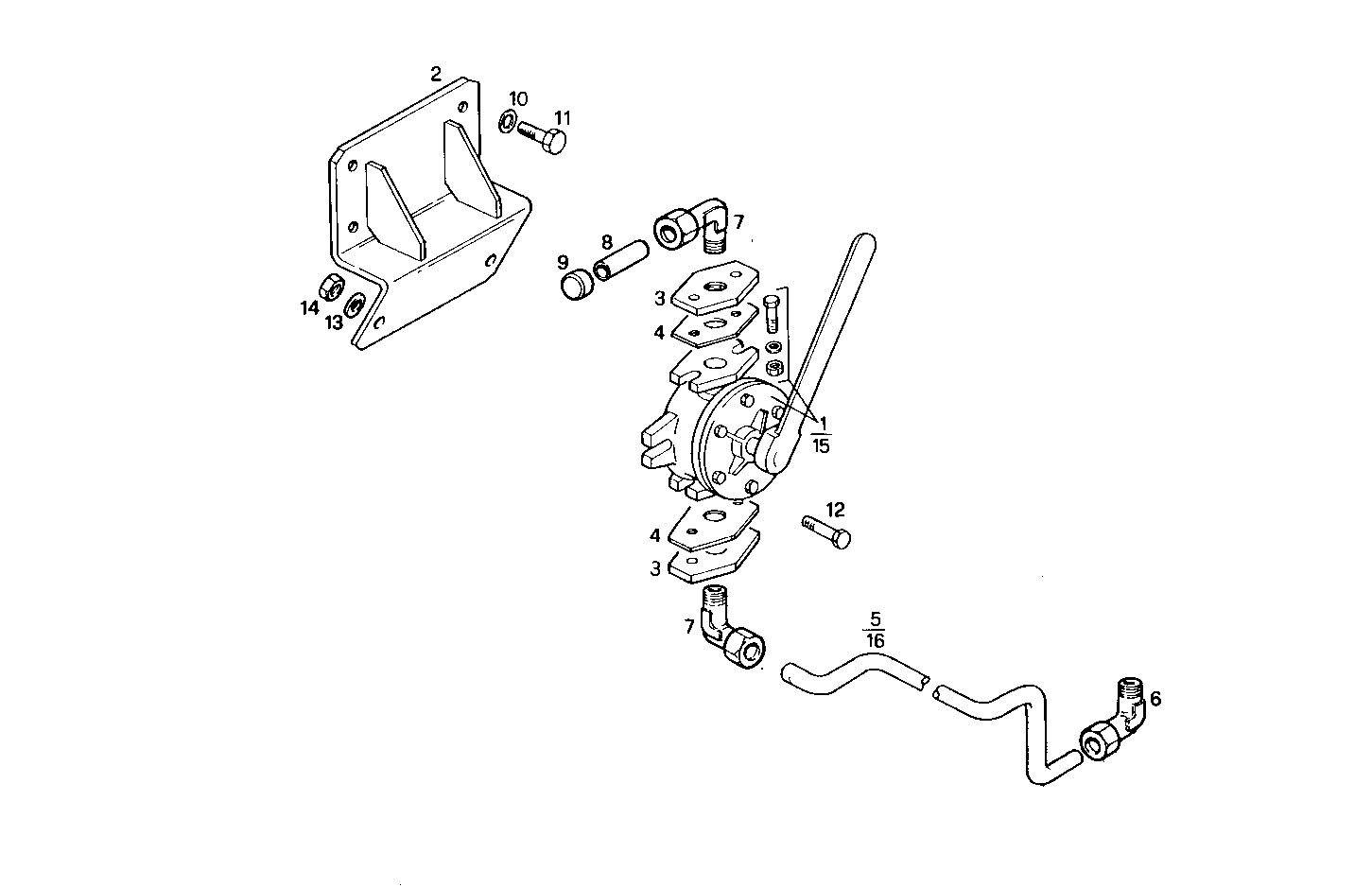

A49010013 OIL DRAIN PUMP
| Item | Part number | Description |
|---|---|---|
| 1 | 8103366 | HAND PUMP [up to 05-93] |
| 2 | 8104079 | RETAINER |
| 3 | 8103585 | FLANGE |
| 4 | 8105075 | GASKET |
| 5 | 8112595 | OIL LINE [up to 02-93] |
| 6 | 8111454 | PIPE SOCKET M22X1,5 |
| 7 | 8111456 | PIPE SOCKET |
| 8 | 8104754 | OIL LINE |
| 9 | 93013662 | PLUG |
| 10 | 11190579 | SPRING WASHER �10X20 MM SP=2,3 |
| 11 | 15004021 | HEXAGON BOLT M10X1,25X25 MM |
| 12 | 16043821 | HEXAGON BOLT M8X30 MM |
| 13 | 11193879 | SPRING WASHER �8X16 MM |
| 14 | 17037931 | HEXAGON NUT M8X1,25 |
| 15 | 8012424 | MAR. ENG. SUCTION PUMP |
| 16 | 8015424 | OIL LINE [from 02-93] |
