PU8281SRI10.00A102

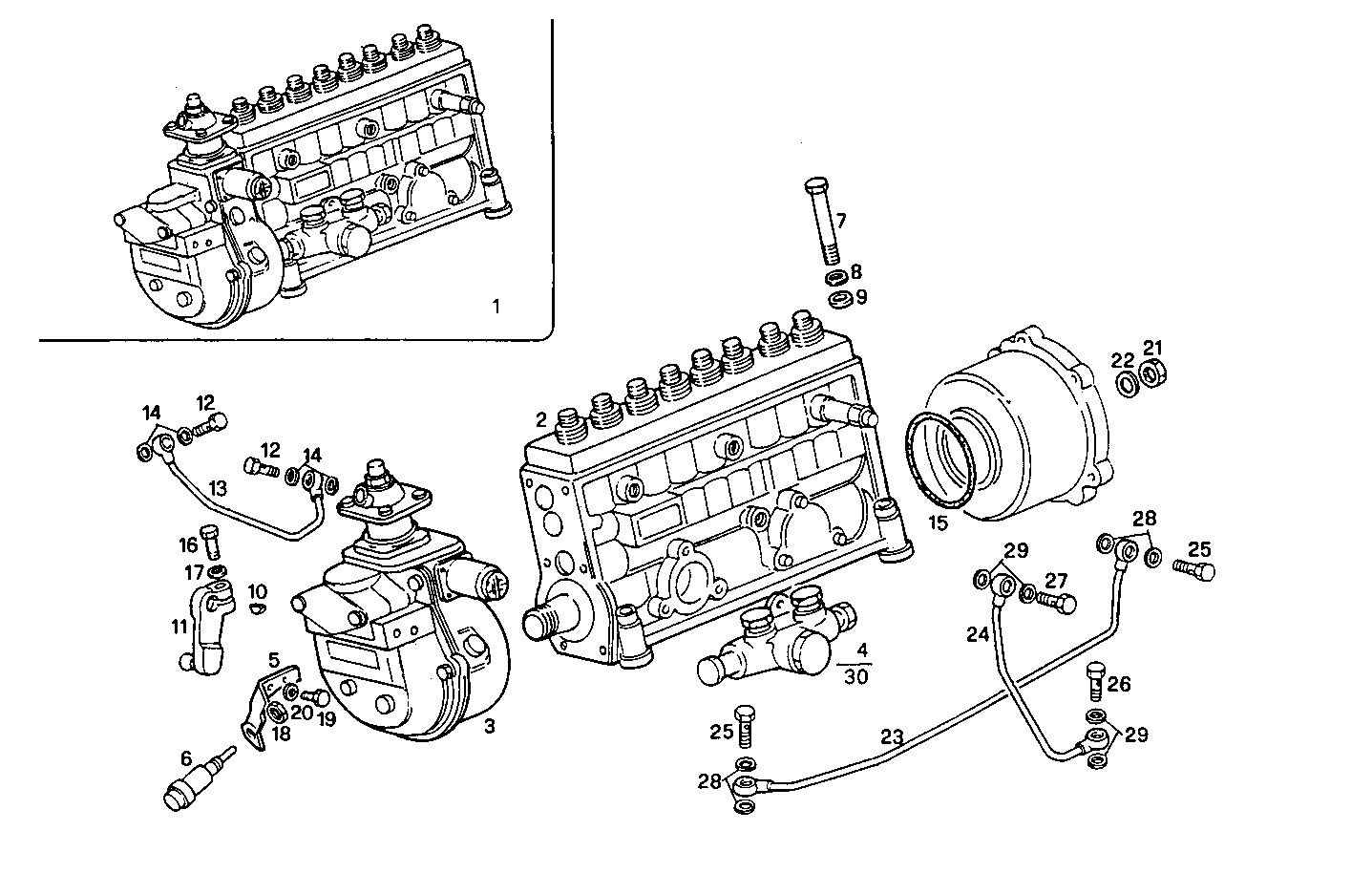

1400.063 INJECTION PUMP ASSY

Iveco/FPT INJECTION PUMP ASSY

Item Part number Description
1 8110166 INLINE INJECT.PUMP ASSY
4 772173 FUEL PUMP ASSY WEBER ALTECNA
5 771369 RETAINER
6 4746917 THRUST ROD
7 15971330 HEXAGON BOLT M10X75 MM
8 17090274 WASHER Ø10X20 MM
9 756671 WASHER
10 10205720 KEY 3X5 MM
11 4719841 LEVER
12 4864082 BANJO BOLT M12X1,5X25 MM
13 98423793 FUEL LINE
14 98474306 WASHER Ø12X20 MM SP=1,9 MM
15 17291081 O-RING Ø88,49X3,53 MM
16 16603824 SCREW M6X25
17 17494631 SPRING WASHER Ø5 MM
18 16102311 HEXAGON NUT M8
19 10902111 HEXAGON BOLT M6X14 MM
20 10516471 SPRING WASHER Ø6 MM
21 12164211 HEXAGON NUT M18X1,5
22 10520301 WASHER Ø18,4 MM
23 98420453 OIL LINE
24 98420456 OIL LINE
25 4864083 SCREW CONNECTOR M14X1,5X30 MM
26 4864080 SCREW CONNECTOR M10X1,25
27 4864079 SCREW CONNECTOR M10X1
28 98474308 SEAL GASKET Ø14X22 MM
29 98474305 WASHER Ø10X17 MM SP=2,3
30 9981532 FUEL PUMP BOSCH
