PU8281SRI10.00A102

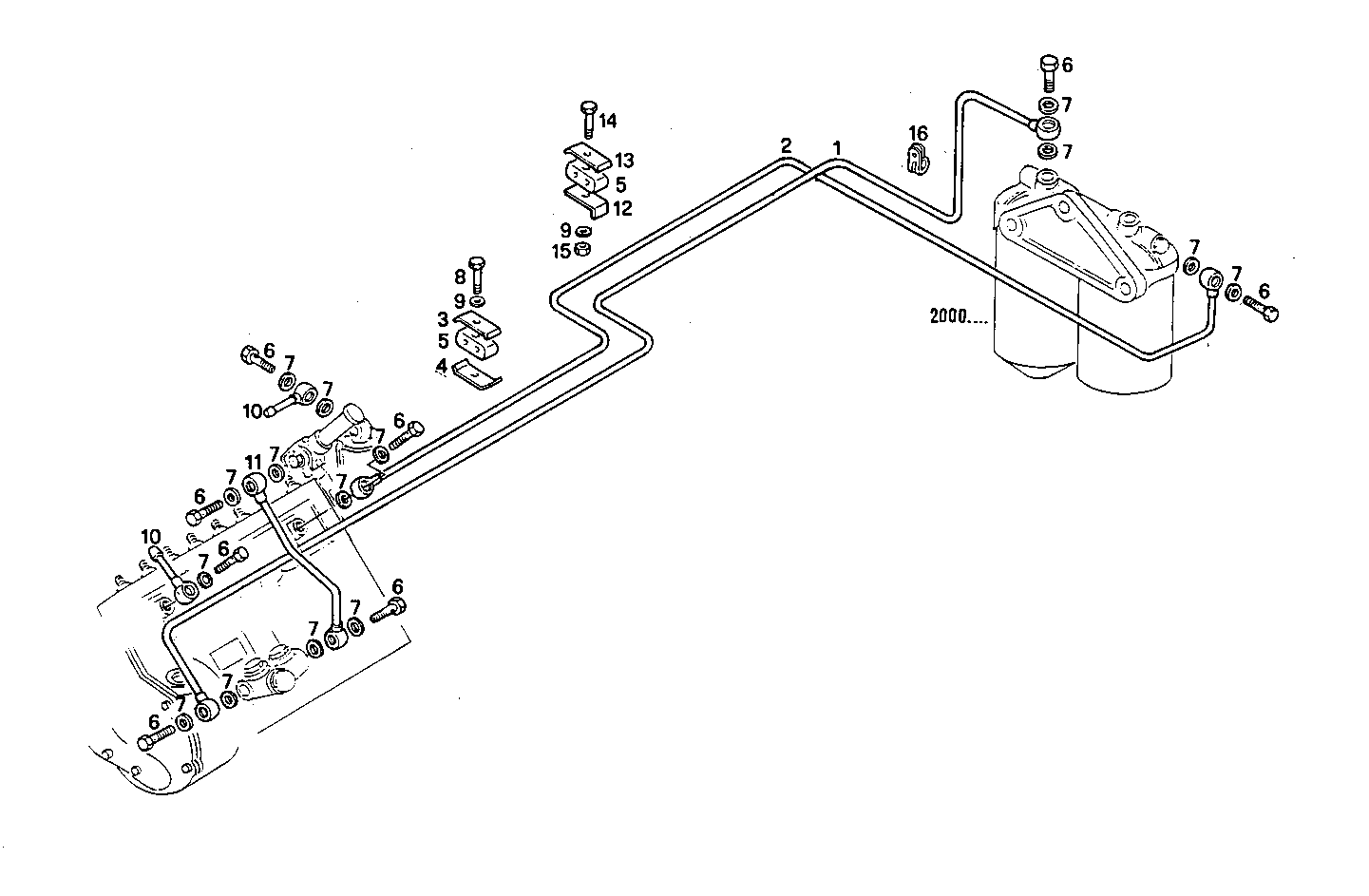

2030.044 FUEL LINES
| Item | Part number | Description |
|---|---|---|
| 1 | 8108619 | FUEL LINE |
| 2 | 8108620 | FUEL LINE |
| 3 | 4644288 | CLIP |
| 4 | 4644289 | CLIP |
| 5 | 4871771 | RUBBER LUG |
| 6 | 10184311 | SCREW CONNECTOR M14X1,5 |
| 7 | 10280060 | WASHER �14X20 MM SP=1,5 MM |
| 8 | 10902621 | SCREW M6X25 MM |
| 9 | 11197771 | SPRING WASHER �6X12 MM SP=1,2 MM |
| 10 | 79010214 | PIPE SOCKET 1C |
| 11 | 8112480 | FUEL LINE |
| 12 | 8104447 | RETAINER |
| 13 | 4641551 | CLAMP |
| 14 | 10902821 | HEXAGON BOLT M6X30 MM |
| 15 | 15896211 | HEXAGON NUT M6 |
| 16 | 10449890 | PIPE CLIP �53 MM |
