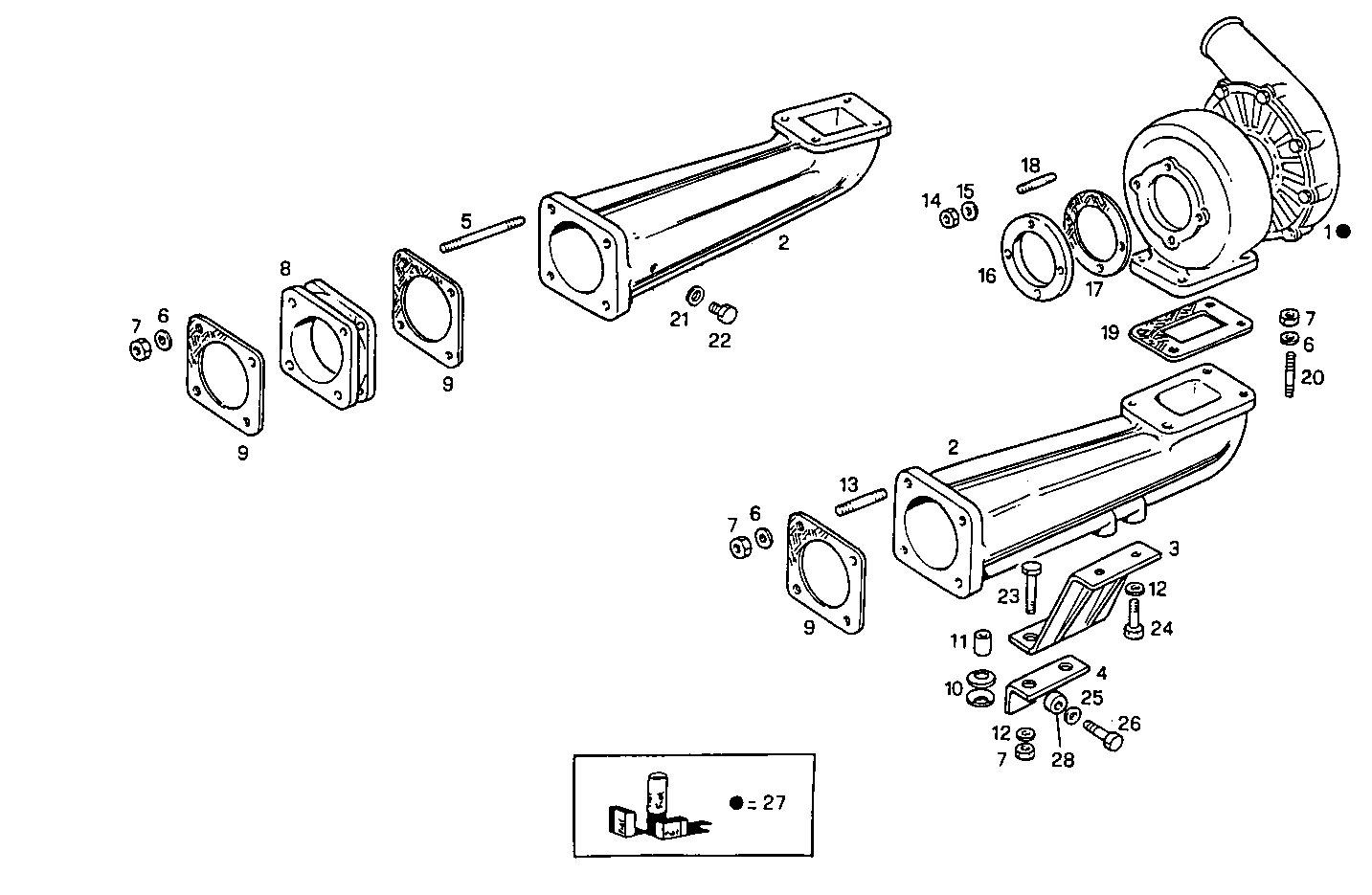

| Item |
Part number |
Description |
|
1 |
8108015 |
TURBOCHARGER ASSY HOLSET |
|
2 |
8108482 |
EXHAUST ELBOW |
|
3 |
8110049 |
RETAINER |
|
4 |
8110048 |
RETAINER |
|
5 |
13547430 |
STUD |
|
6 |
10730521 |
WASHER �10,2 MM |
|
7 |
17038221 |
HEXAGON NUT M10 |
|
8 |
8108490 |
SPACING BAR |
|
9 |
4706264 |
FLAT ENGINE GASKET |
|
10 |
8110051 |
SPRING |
|
11 |
8110050 |
BUSH |
|
12 |
17090174 |
SPRING WASHER �10X20 MM |
|
13 |
13546730 |
STUD M10X1,25X40 MM |
|
14 |
17037931 |
HEXAGON NUT M8X1,25 |
|
15 |
10730301 |
WASHER �8,15 MM |
|
16 |
8112977 |
FLANGE |
|
17 |
4729026 |
GASKET |
|
18 |
13517221 |
STUD M8X12X30 MM |
|
19 |
98428396 |
FLAT ENGINE GASKET |
|
20 |
13449830 |
STUD M10X1,25X35 MM |
|
21 |
10296160 |
SEAL GASKET �12X18 MM SP=1 MM |
|
22 |
16992211 |
THREADED PLUG M12X1,5 |
|
23 |
11234721 |
HEXAGON BOLT M10X1,25X45 MM |
|
24 |
15970621 |
SCREW M10X1,25X22 |
|
25 |
17092374 |
SPRING WASHER �16X34X3,6 MM |
|
26 |
11391521 |
HEXAGON BOLT M16X45 MM |
|
27 |
8090147 |
KIT-TURBOCHARGER HOLSET |
|
28 |
4934451 |
SPACING BAR |
