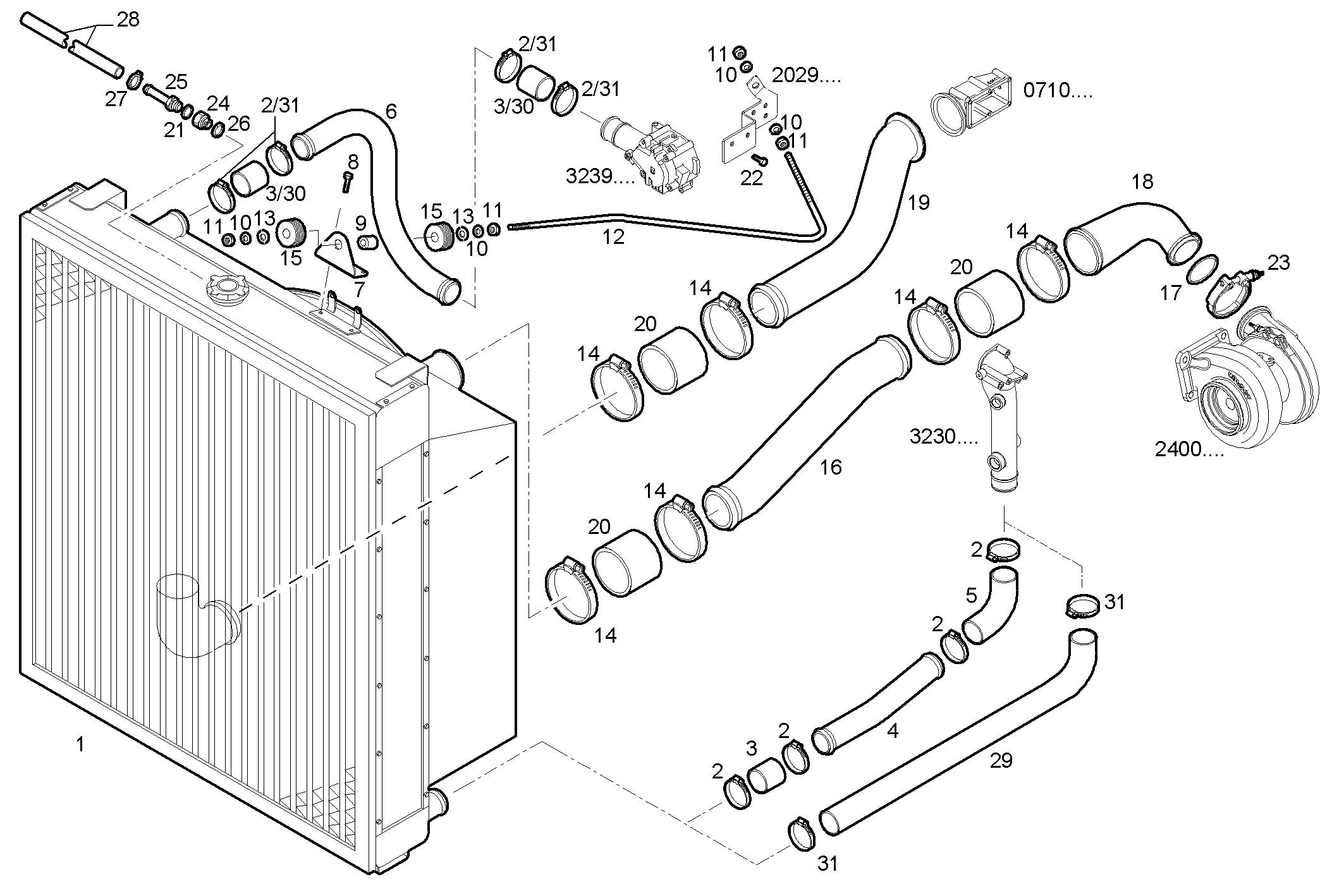

| Item |
Part number |
Description |
|
1 |
8036502 |
WATER RADIATOR ASSY |
|
2 |
17765091 |
CLIP Ø60/80 MM |
|
3 |
98421391 |
RUBBER SLEEVE [UP TO 30-11-07] |
|
4 |
8042060 |
WATER PIPE [UP TO 30-11-07] |
|
5 |
8041922 |
RUBBER SLEEVE [UP TO 30-11-07] |
|
6 |
8042565 |
WATER PIPE |
|
7 |
8019397 |
RETAINER |
|
8 |
16605625 |
HEXAGON BOLT M8X25 |
|
9 |
741571 |
SPACING BAR Ø10X17 MM SP=2,3 |
|
10 |
17091074 |
WASHER Ø12X24X2,8 MM |
|
11 |
17038425 |
HEXAGON NUT M12 (8) |
|
12 |
8044624 |
TIE ROD |
|
13 |
741570 |
WASHER Ø10X17 MM SP=2,3 |
|
14 |
4788410 |
CLIP Ø92/98 MM |
|
15 |
741569 |
RUBBER LUG |
|
16 |
8042675 |
AIR PIPE/DUCT |
|
17 |
17284681 |
O-RING Ø61,6 MM SP=2,62 MM |
|
18 |
61318365 |
AIR PIPE/DUCT |
|
19 |
8045041 |
AIR PIPE/DUCT |
|
20 |
8030531 |
TURBOCHARGER HOSE |
|
21 |
10284460 |
SEAL GASKET Ø10X16 MM |
|
22 |
16675835 |
HEXAGON BOLT M10X30 MM |
|
23 |
4800661 |
CLIP Ø 75 mm. |
|
24 |
4935727 |
PIPE SOCKET |
|
25 |
4935134 |
OIL LINE |
|
26 |
4858607 |
WASHER Ø12X17 MM SP=1,5 MM |
|
27 |
18087993 |
CLIP Ø8/16 MM |
|
28 |
8034635 |
BREATHER PIPE |
|
29 |
8049678 |
RUBBER SLEEVE [FROM 01-12-07] |
