PUC10ENTD20.00A100

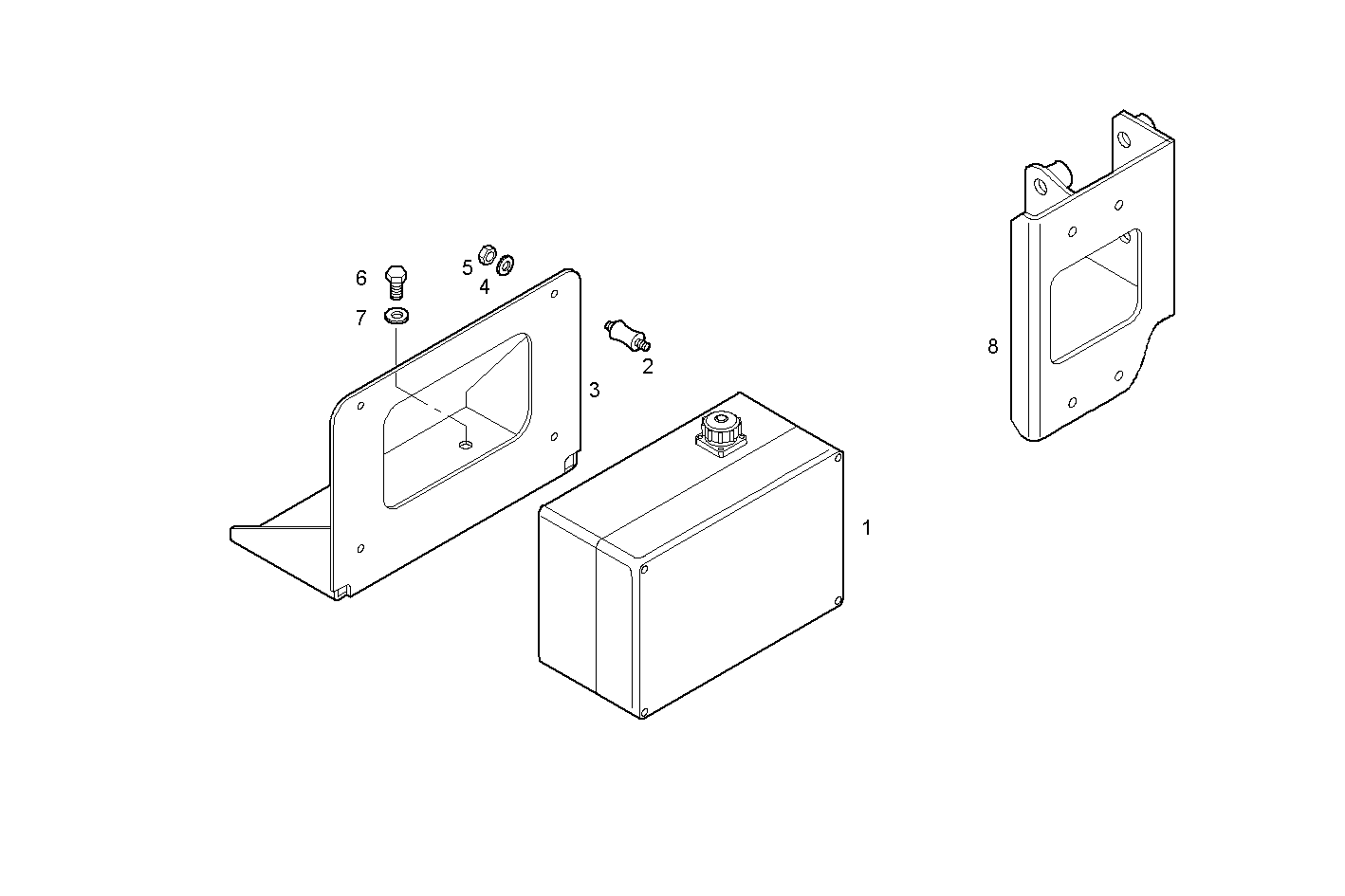

5630.002 PANEL WITH ELECTRICAL INSTRUMENTS

Iveco/FPT PANEL WITH ELECTRICAL INSTRUMENTS

Item Part number Description
1 8047448 SWITCH PANEL
2 4910949 RUBBER LUG
3 8044200 RETAINER
4 17088474 WASHER Ø6X12 MM
5 17037821 HEXAGON NUT M6X1
6 16607625 SCREW M10X25
7 17090174 SPRING WASHER Ø10X20 MM
8 8042900 SUPPORT
