PUC13ENTD20.20A100

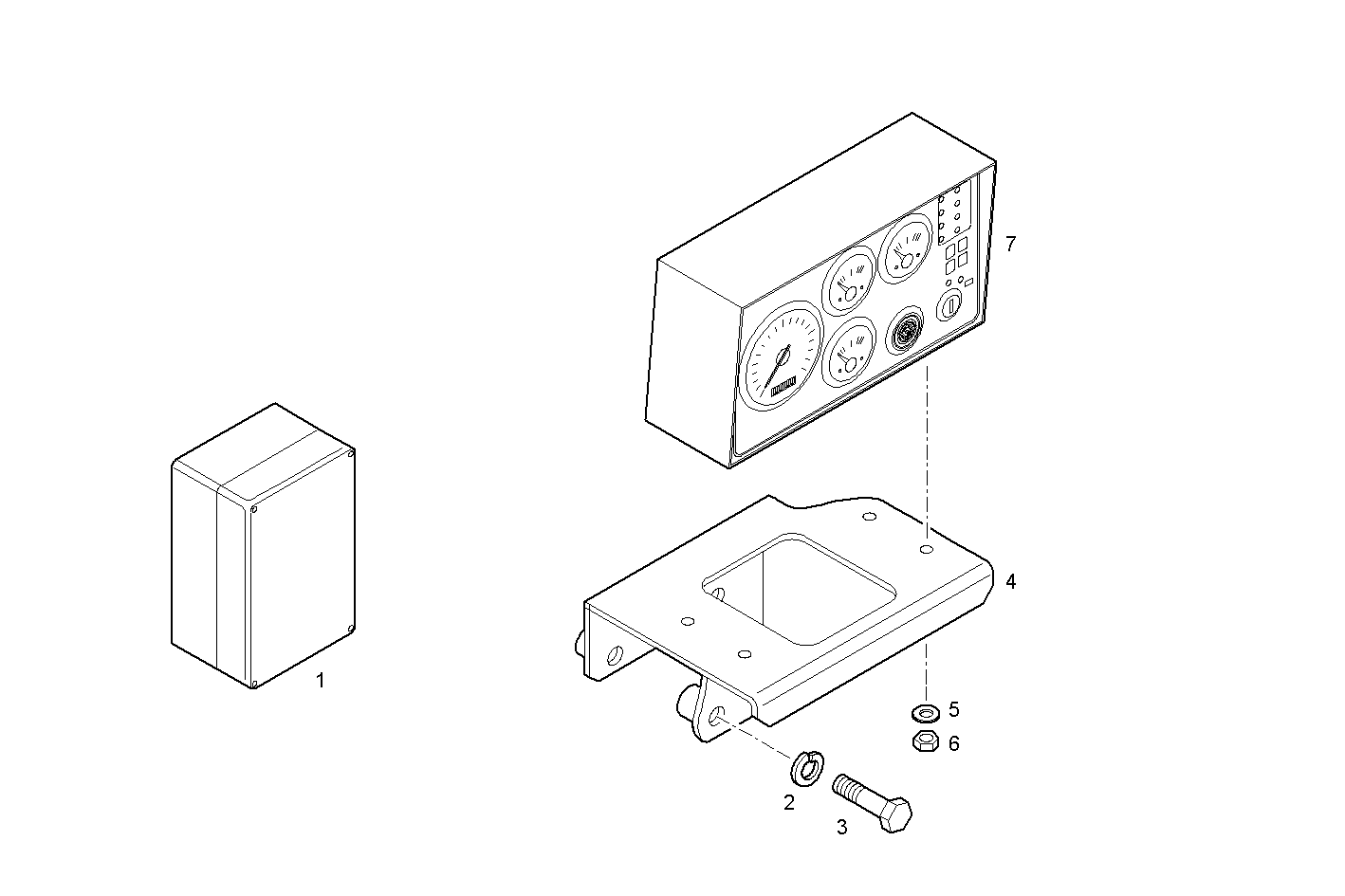

5630.011 PANEL WITH ELECTRICAL INSTRUMENTS
| Item | Part number | Description |
|---|---|---|
| 1 | 8047353 | SWITCHGEAR |
| 2 | 17090174 | SPRING WASHER Ø10X20 MM |
| 3 | 16607624 | SCREW M10X25 |
| 4 | 8042900 | SUPPORT |
| 5 | 17088974 | SPRING WASHER Ø6X18X1,4 MM |
| 6 | 17037821 | HEXAGON NUT M6X1 |
| 7 | 8044420 | CONTROL BOARD ASSY |
