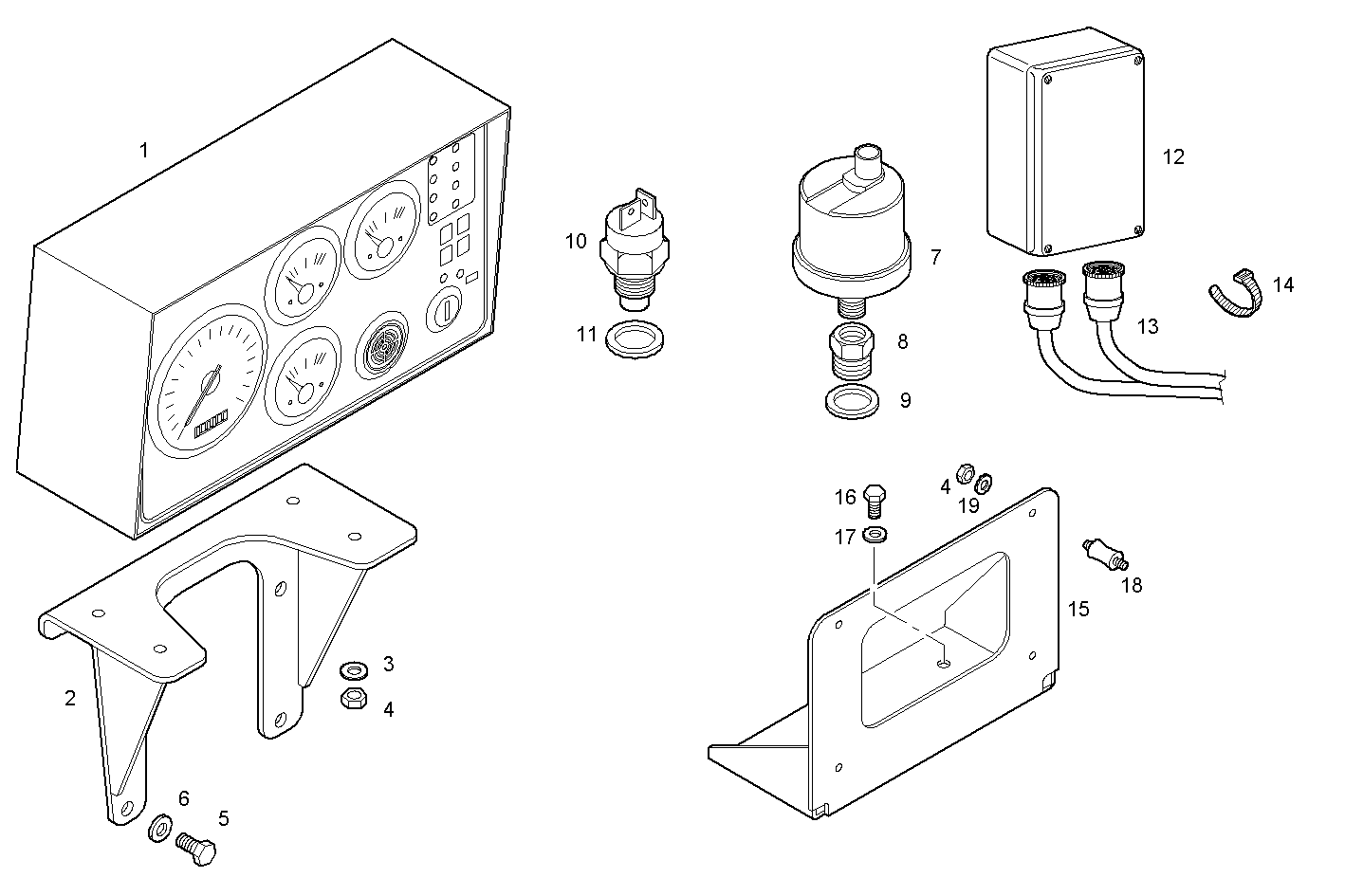

| Item |
Part number |
Description |
|
1 |
8038059 |
CONTROL BOARD ASSY |
|
2 |
8039650 |
SUPPORT |
|
3 |
17088974 |
SPRING WASHER Ø6X18X1,4 MM |
|
4 |
17037821 |
HEXAGON NUT M6X1 |
|
5 |
16605424 |
SCREW M8X16 MM (8.8) |
|
6 |
17089474 |
SPRING WASHER Ø8X16 MM SP=1,4 MM |
|
7 |
8036275 |
TRANSMITTER TPO |
|
8 |
4928113 |
PIPE SOCKET |
|
9 |
98474308 |
SEAL GASKET Ø14X22 MM |
|
10 |
8042846 |
TRANSMITTER TATA |
|
11 |
98474309 |
WASHER Ø16X24 MM SP=1,9 MM |
|
12 |
8040414 |
SWITCHGEAR ASSY |
|
13 |
8040410 |
ENGINE HARNESS |
|
14 |
14560187 |
CABLE STRAP |
|
15 |
8044200 |
RETAINER |
|
16 |
16607625 |
SCREW M10X25 |
|
17 |
17090174 |
SPRING WASHER Ø10X20 MM |
|
18 |
4910949 |
RUBBER LUG |
|
19 |
17088474 |
WASHER Ø6X12 MM |
