PUC78ENTD20.00A100

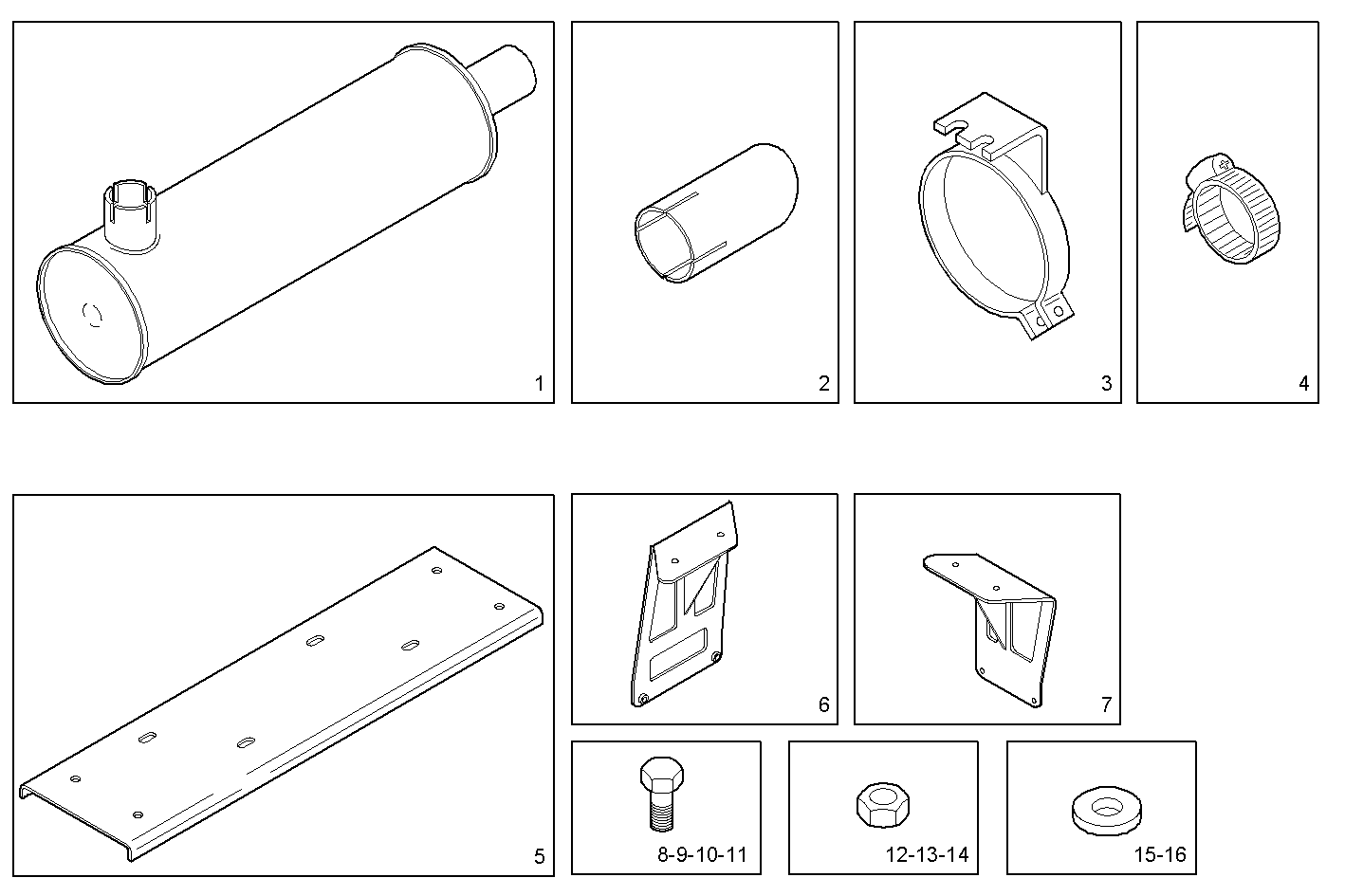

A23040501 SILENCER
| Item | Part number | Description |
|---|---|---|
| 1 | 500306919 | SILENCER |
| 2 | 8039809 | EXHAUST PIPE |
| 3 | 500328457 | CLIP |
| 4 | 42090154 | PIPE CLIP |
| 5 | 8039805 | PLATE |
| 6 | 8039803 | FASTENING BRACKET |
| 7 | 8039804 | FASTENING BRACKET |
| 8 | 16605424 | SCREW M8X16 MM (8.8) |
| 9 | 16605724 | SCREW M8X1,25X30 |
| 10 | 16607624 | SCREW M10X25 |
| 11 | 16609124 | HEXAGON BOLT M10X130 MM |
| 12 | 17037925 | HEXAGON NUT M8X1,25 |
| 13 | 17038131 | HEXAGON NUT M10 |
| 14 | 16750325 | HEXAGON NUT M10 |
| 15 | 17089474 | SPRING WASHER Ø8X16 MM SP=1,4 MM |
| 16 | 17090174 | SPRING WASHER Ø10X20 MM |
