PUC78ENTD20.20A100

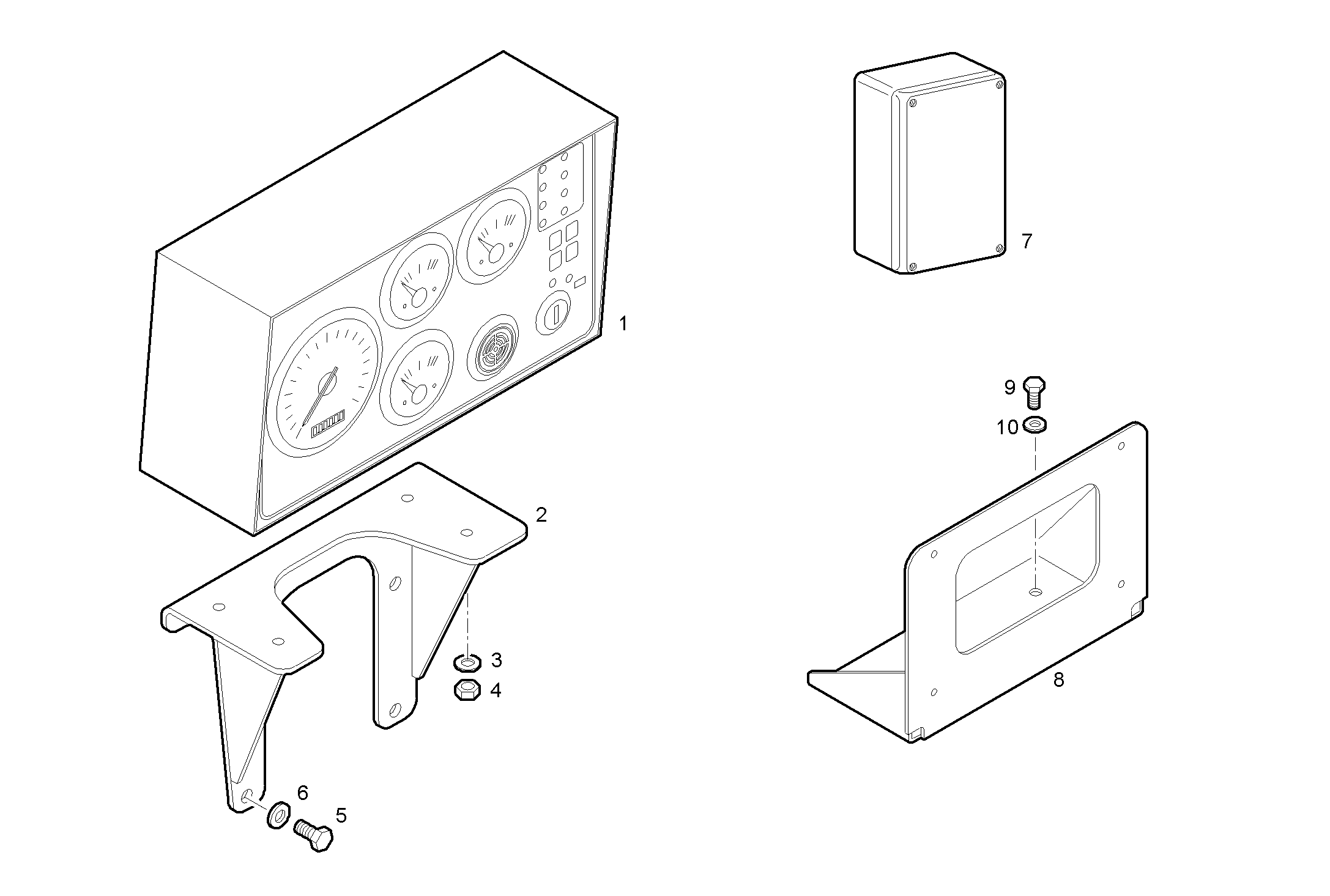

5630.012 PANEL WITH ELECTRICAL INSTRUMENTS
| Item | Part number | Description |
|---|---|---|
| 1 | 8044420 | CONTROL BOARD ASSY |
| 2 | 8039650 | SUPPORT |
| 3 | 17088974 | SPRING WASHER Ø6X18X1,4 MM |
| 4 | 17037821 | HEXAGON NUT M6X1 |
| 5 | 16605424 | SCREW M8X16 MM (8.8) |
| 6 | 17089474 | SPRING WASHER Ø8X16 MM SP=1,4 MM |
| 7 | 8052675 | SWITCHGEAR |
| 8 | 8044200 | RETAINER |
| 9 | 16607625 | SCREW M10X25 |
| 10 | 17090174 | SPRING WASHER Ø10X20 MM |
