PUN67MNTX20.00A100

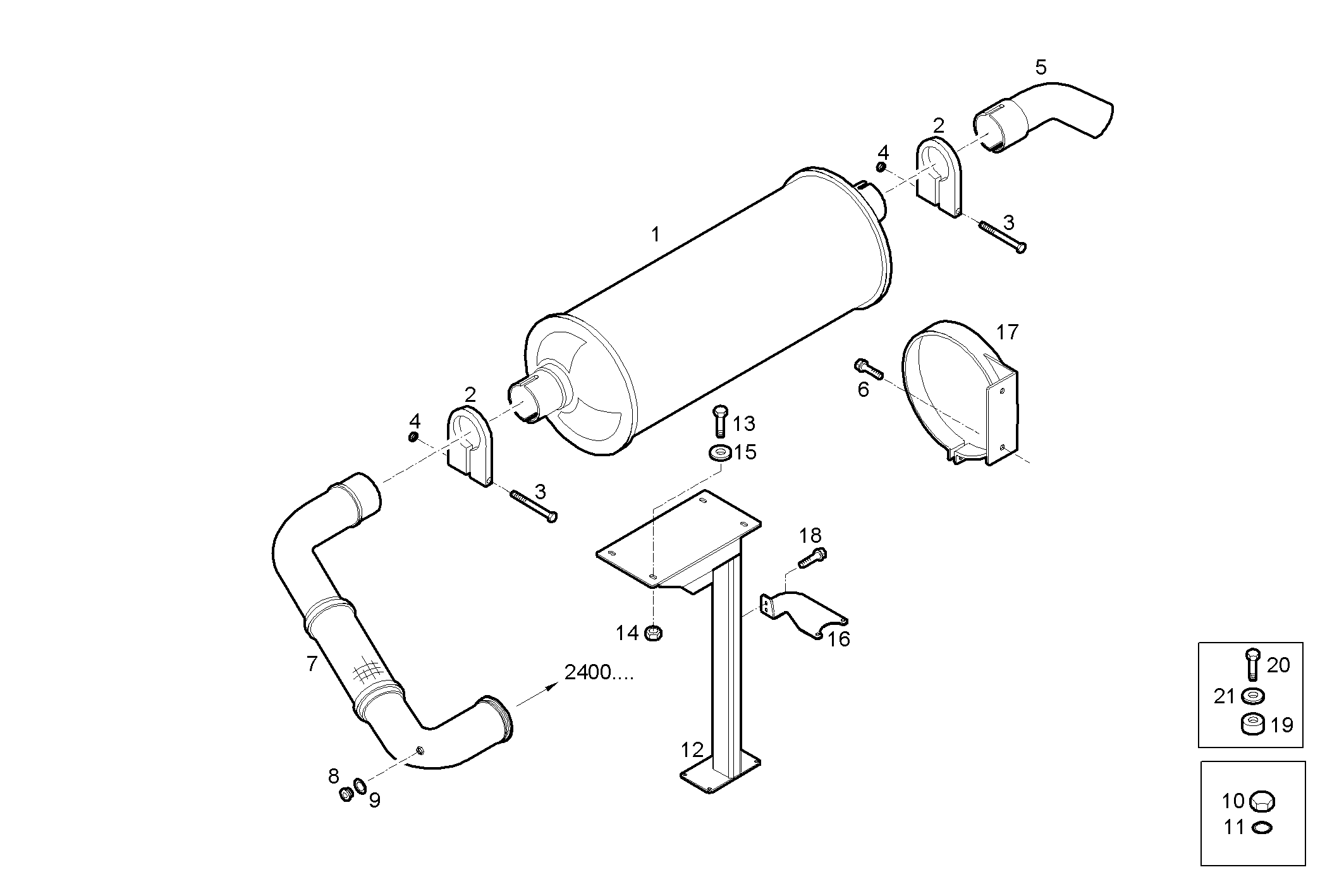

A23040503 SILENCER
| Item | Part number | Description |
|---|---|---|
| 1 | 500370649 | SILENCER |
| 2 | 4839513 | CLIP |
| 3 | 16599025 | SCREW M10X120 MM |
| 4 | 16750325 | HEXAGON NUT M10 |
| 5 | 504053677 | EXHAUST PIPE |
| 6 | 16607434 | HEXAGON BOLT M10X16 MM |
| 7 | 8049869 | EXHAUST PIPE |
| 8 | 16992211 | THREADED PLUG M12X1,5 |
| 9 | 16508060 | SEAL GASKET Ø12X15,5 MM |
| 10 | 8859246 | THREADED PLUG M22X1,5 |
| 11 | 17750585 | GASKET |
| 12 | 8049865 | SUPPORT |
| 13 | 16607625 | SCREW M10X25 |
| 14 | 17038131 | HEXAGON NUT M10 |
| 15 | 17090174 | SPRING WASHER Ø10X20 MM |
| 16 | 8049868 | FASTENING BRACKET |
| 17 | 8048596 | PIPE CLIP |
| 18 | 16598224 | HEXAGON BOLT M8X90 MM |
| 19 | 17816014 | SPACING BAR Ø8,5X18X5 MM |
| 20 | 16605524 | HEXAGON BOLT M8X20 MM |
| 21 | 17089774 | SPRING WASHER Ø8,4X22 MM SP=2,4 MM |
