S23ENS424.00A001

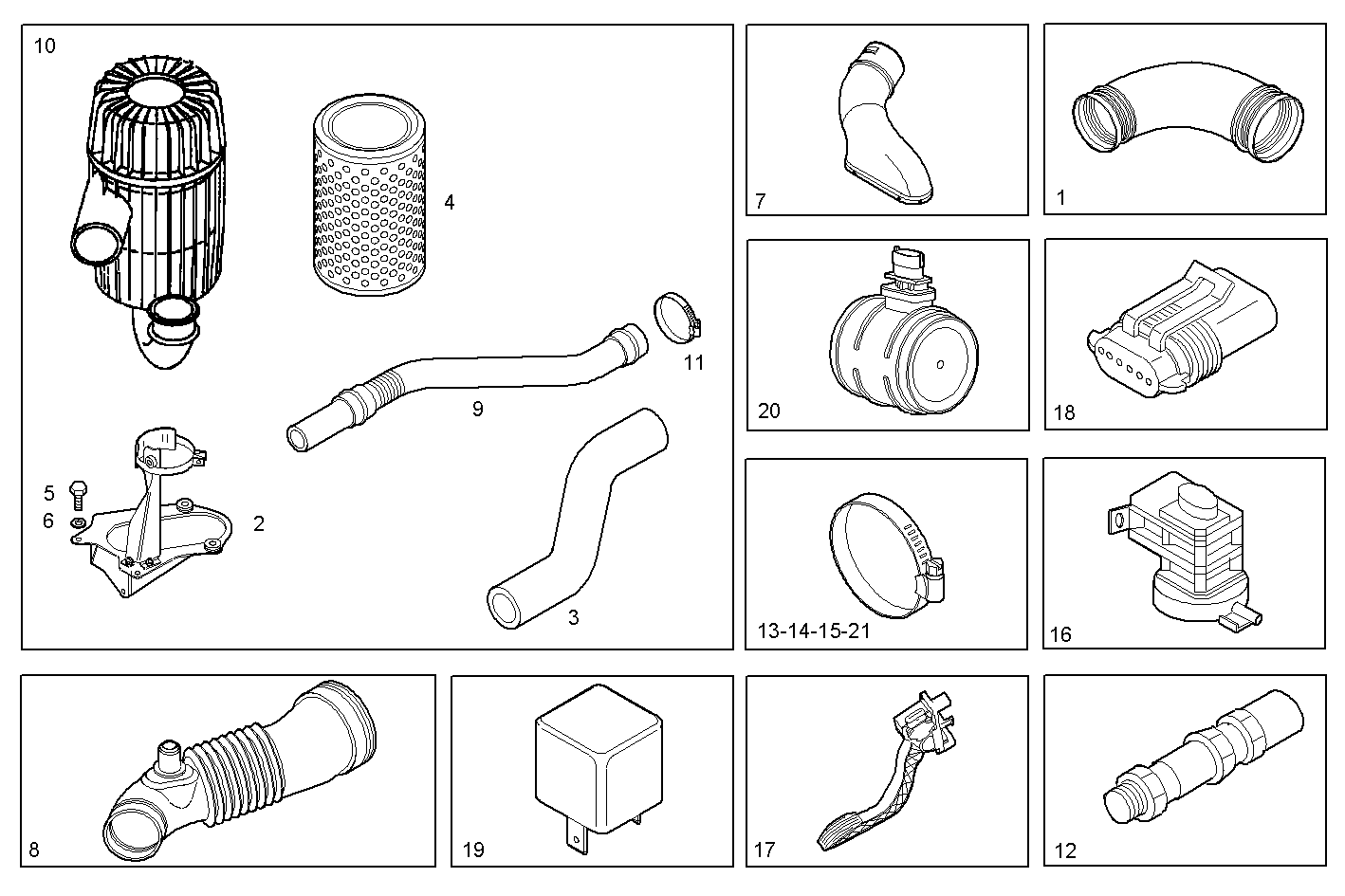

8600.327/01 ACCESSORIES
| Item | Part number | Description |
|---|---|---|
| 1 | 504135453 | SUCTION LINE |
| 2 | 504054585 | FASTENING BRACKET |
| 3 | 500396509 | BREATHER PIPE |
| 4 | 1903669 | AIR FILTER ELEMENT |
| 5 | 16604024 | HEXAGON BOLT M6X35 MM |
| 6 | 12647724 | WASHER Ø6X21 MM SP=1 MM |
| 7 | 504193548 | AIR INDUCT.FILTER |
| 8 | 504135452 | FILTER HOSE |
| 9 | 504032760 | SUCTION LINE |
| 10 | 504054587 | AIR CLEANER ASSY |
| 11 | 18088493 | CLIP |
| 12 | 500319244 | LIGHT STOP SWITCH |
| 13 | 18088892 | CLIP |
| 14 | 18089191 | CLIP |
| 15 | 4788410 | CLIP Ø92/98 MM |
| 16 | 46524556 | ELECTROVALVE EGR |
| 17 | 504061735 | ACCELERATOR PEDAL |
| 18 | 8029084 | CONNECTION kit for accelerator pedal |
| 19 | 500341925 | RELAY 50A - for EDC |
| 20 | 504136035 | METER AIR FÚOW |
| 21 | 13127770 | CLIP |
