S23ENS424.00A002

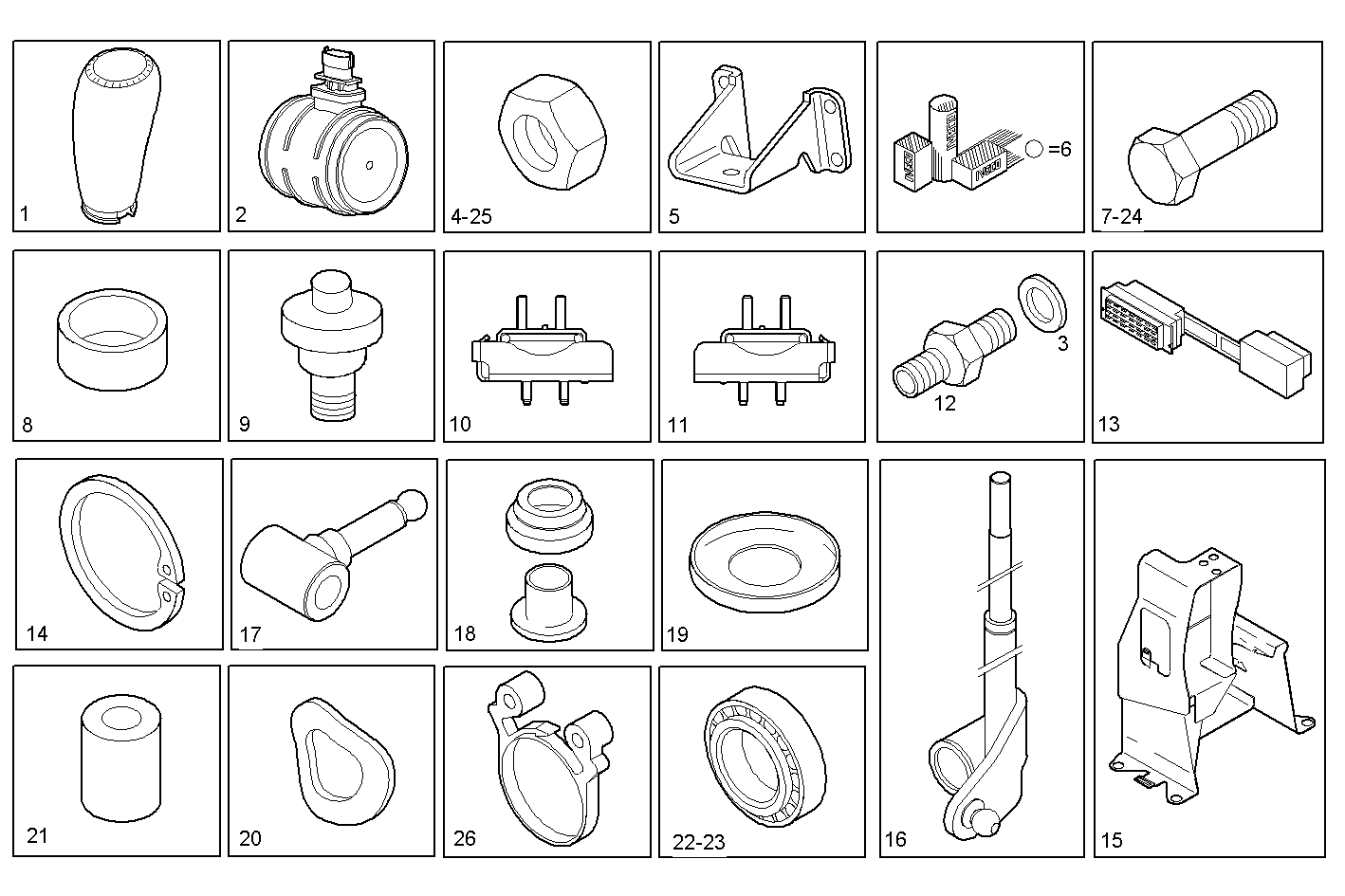

8600.328/02 ACCESSORIES
| Item | Part number | Description |
|---|---|---|
| 1 | 504061686 | LEVER KNOB |
| 2 | 504136035 | METER AIR FÚOW |
| 3 | 4858606 | GASKET Ø10X14X1 MM |
| 4 | 16750125 | HEXAGON NUT M6 |
| 5 | 504066007 | RETAINER |
| 6 | 500334937 | KIT-HYDRAULIC CLUTCH CYL. |
| 7 | 16585870 | HEXAGON BOLT M6X20 |
| 8 | 9150917480 | COVER |
| 9 | 8027294 | CHOCKED FILTER INDIC. MECHANICAL |
| 10 | 500339072 | DOWEL FRONT - RIGHT |
| 11 | 500345261 | DOWEL FRONT - LEFT |
| 12 | 500344937 | THREADED UNION M10X1 |
| 13 | 8046385 | CONNECTION OBD |
| 14 | 17852376 | SPRING LOCKWASHER |
| 15 | 504046932 | SUPPORT |
| 16 | 504058728 | SHIFT LEVER |
| 17 | 504040961 | PLUG-IN SLEEVE |
| 18 | 504046933 | BUSH |
| 19 | 500317507 | BUSH |
| 20 | 500317512 | CORRUGATED WASHER |
| 21 | 500317612 | SPACING BAR |
| 22 | 500317714 | ROLLER BEARING |
| 23 | 500317715 | ROLLER BEARING |
| 24 | 16604534 | HEXAGON BOLT |
| 25 | 17152721 | NUT M6 |
| 26 | 500317511 | SPRING CLAMP |
