S23ENS424.20A001

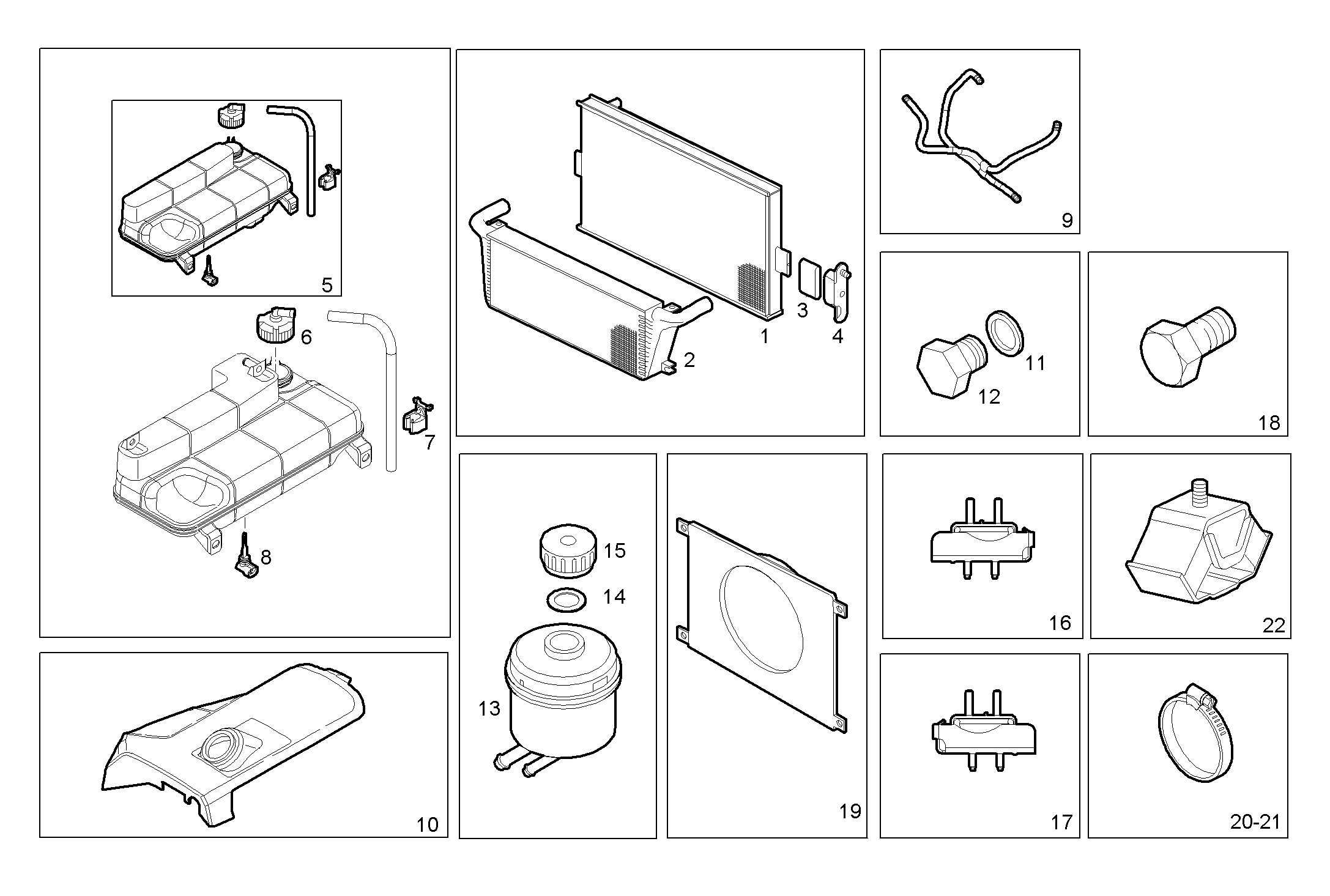

8600.342/04 ACCESSORIES
| Item |
Part number |
Description |
|
1 |
93818439 |
WATER RADIATOR |
|
2 |
93822683 |
INTERCOOLER |
|
3 |
504294809 |
RUBBER LUG |
|
4 |
93810564 |
SUPPORT |
|
5 |
504045819 |
EXPANSION TANK ASSY |
|
6 |
99489567 |
PLUG [from …] |
|
7 |
500386067 |
SPRING CLAMP |
|
8 |
504008619 |
SENSOR |
|
9 |
504152582 |
WATER PIPE |
|
10 |
504034872 |
CYL. HEAD COVER |
|
11 |
16508460 |
WASHER 22x27x1,5 |
|
12 |
16992611 |
THREADED PLUG M22X1,5 |
|
13 |
504073722 |
OIL TANK ASSY |
|
14 |
42546129 |
WASHER |
|
15 |
42547928 |
LOCK PLUG |
|
16 |
504046292 |
ENGINE SILENTBLOCK RIGHT |
|
17 |
504046294 |
ENGINE SILENTBLOCK LEFT |
|
18 |
17936007 |
HEXAGON BOLT |
|
19 |
93814558 |
AIR HOOD |
|
20 |
18088892 |
CLIP |
|
21 |
18088992 |
CLIP |
|
22 |
504085410 |
DOWEL |
