S23ENS424.20A002

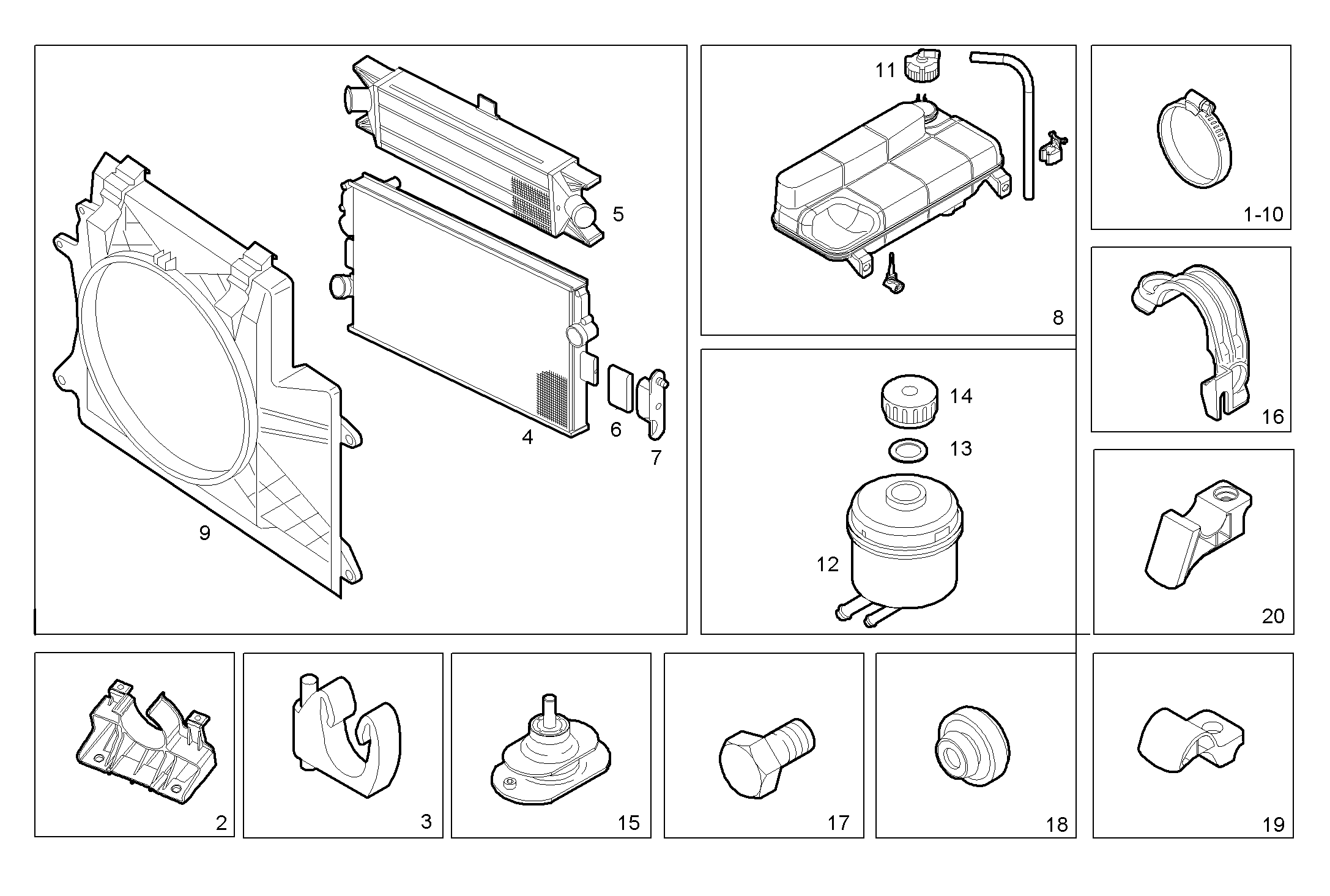

8600.343/05 ACCESSORIES
| Item |
Part number |
Description |
|
1 |
18088892 |
CLIP |
|
2 |
504066074 |
FASTENING BRACKET |
|
3 |
500350985 |
SPRING CLAMP |
|
4 |
504084141 |
WATER RADIATOR |
|
5 |
504084140 |
INTERCOOLER |
|
6 |
93809291 |
RUBBER PAD |
|
7 |
93810564 |
SUPPORT |
|
8 |
504045819 |
EXPANSION TANK ASSY |
|
9 |
504045486 |
AIR HOOD |
|
10 |
18088992 |
CLIP |
|
11 |
99489567 |
PLUG [from …] |
|
12 |
504073722 |
OIL TANK ASSY |
|
13 |
42546129 |
WASHER |
|
14 |
42547928 |
LOCK PLUG |
|
15 |
504074159 |
DOWEL |
|
16 |
504045490 |
FASTENING BRACKET |
|
17 |
17936007 |
HEXAGON BOLT |
|
18 |
500339000 |
SPRING SLEEVE |
|
19 |
504104447 |
RETAINER |
|
20 |
504104446 |
RETAINER |
