S23ENSC20.10A004

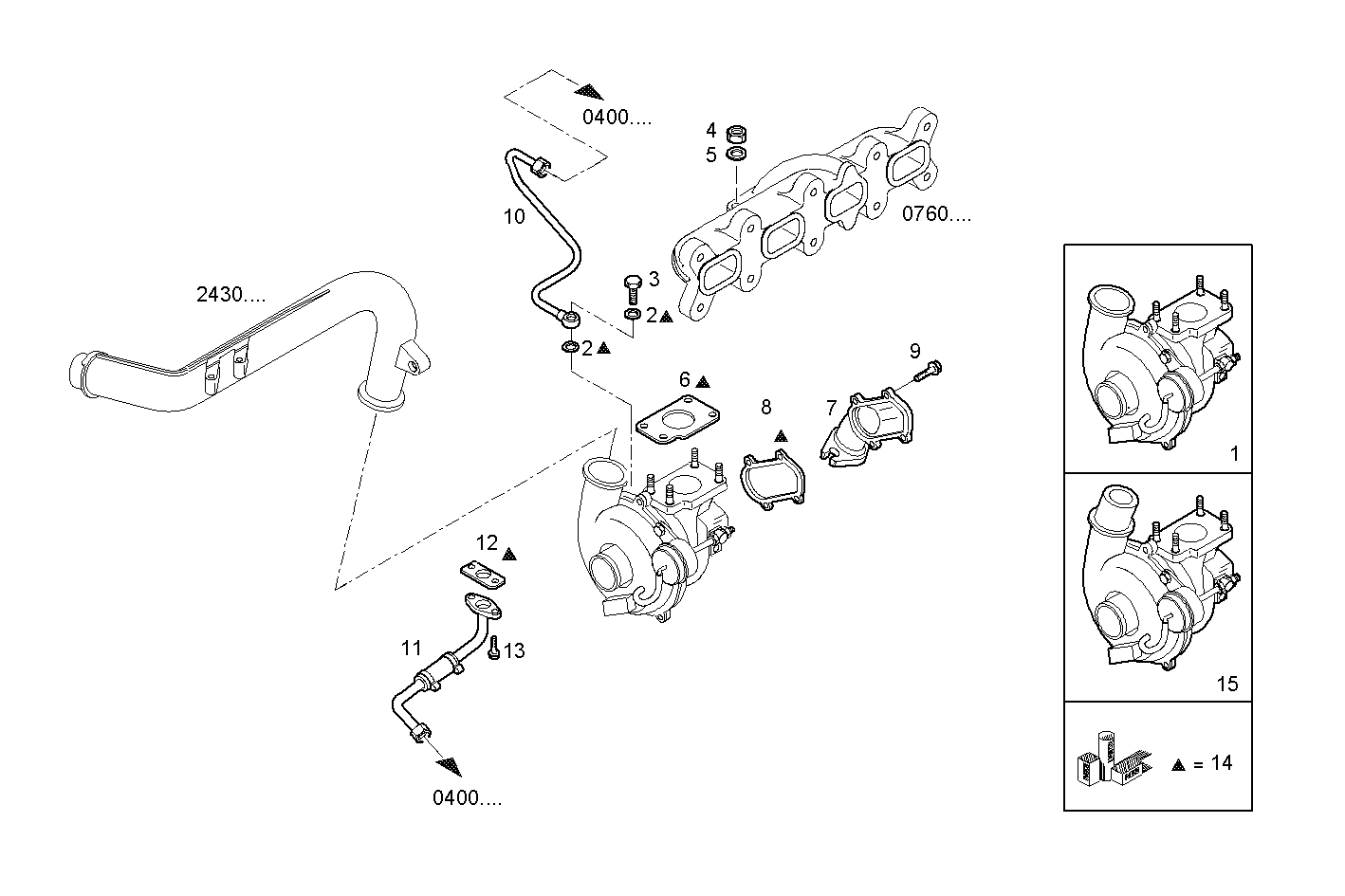

2400.219 TURBOCHARGER

Iveco/FPT TURBOCHARGER

Item Part number Description
1 504014911 TURBOCHARGER ASSY
2 10296160 SEAL GASKET Ø12X18 MM SP=1 MM
3 4864082 BANJO BOLT M12X1,5X25 MM
4 500322677 HEXAGON NUT M8
5 17094914 WASHER 8x16
6 500378462 EXH. MANIFOLD GKT
7 504001093 AIR PIPE/DUCT
8 98484659 FLAT ENGINE GASKET
9 16586424 HEXAGON BOLT M8X25 MM
10 504044738 OIL LINE
11 504017521 OIL LINE
12 500370706 FLAT ENGINE GASKET
13 16585824 HEXAGON BOLT M6X20 MM
14 504049364 KIT-SEAL.GASKETS
15 504071262 TURBOCHARGER [FROM # 101866]
