S23ENSC20.10A005

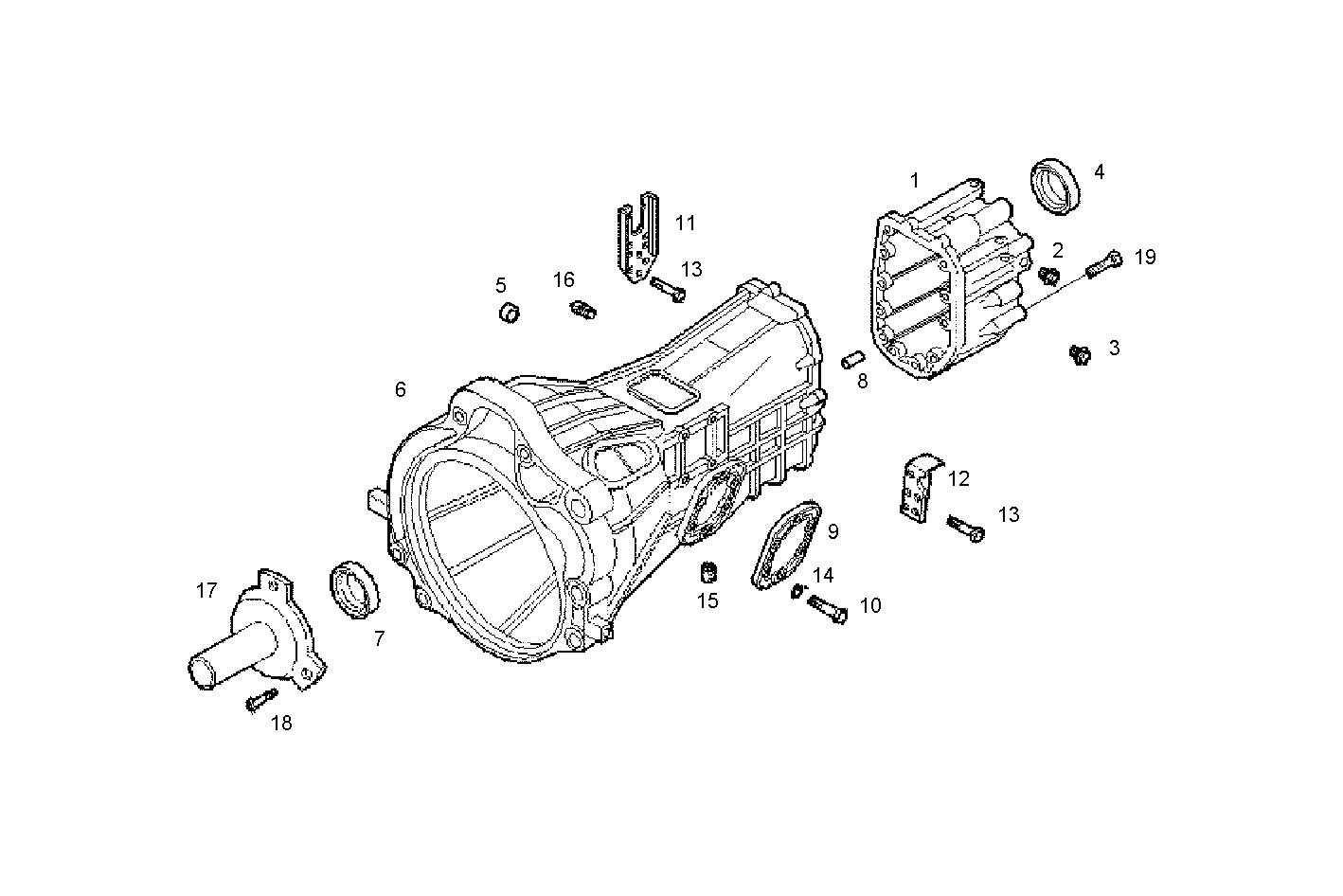

A27610501/02 TRANSMISSION - (components)

Iveco/FPT TRANSMISSION

Item Part number Description
1 8870899 TRANSMISSION CASE
2 8863564 THREADED PLUG M18X1.5
3 8869104 THREADED PLUG M12X1
4 40102773 SHAFT SEAL
5 16988301 LOCK PLUG Ø20 MM
6 8868913 TRANSMISSION CASE
7 40102763 SHAFT SEAL
8 8869098 DOWEL PIN M12X1
9 8859471 SIDE G.BOX COVER
10 16607824 HEXAGON BOLT M10X35 MM (8.8)
11 8868800 SUPPORT
12 8869105 SUPPORT
13 16605624 HEXAGON BOLT M8X25 MM (8.8)
14 16665614 WASHER Ø10,5 MM
15 16998511 THREADED PLUG M22X1,5
16 16996511 THREADED PLUG M22X1,5
17 8868584 FRONT G.BOX COVER
18 16605534 HEXAGON BOLT M8X20 MM (10.9)
19 16606234 HEXAGON BOLT M8X55 MM
