S23ENSC20.10A006

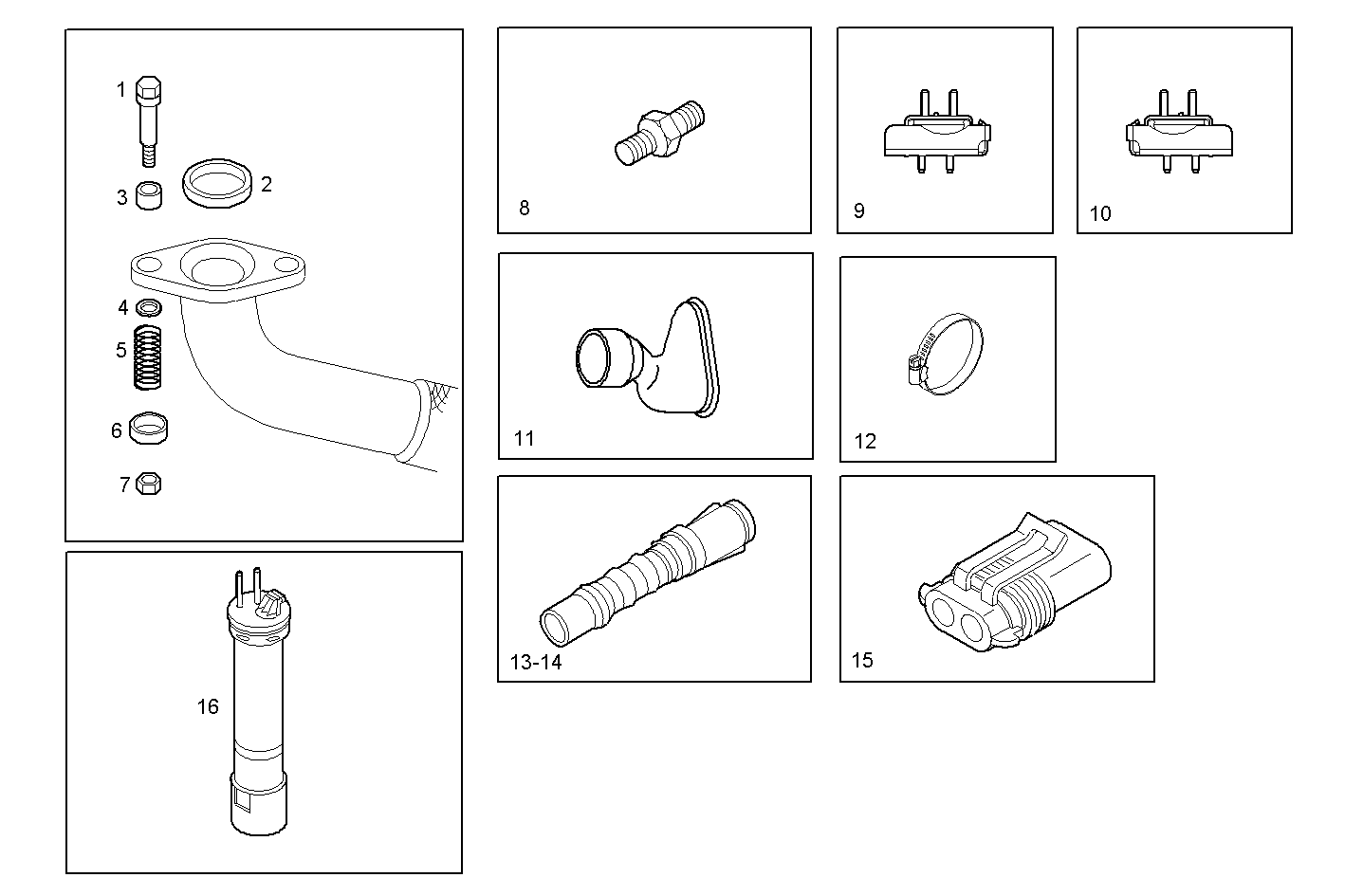

8600.225/01 ACCESSORIES [FROM 15/04/05] [FROM 15/04/05]
| Item |
Part number |
Description |
|
1 |
9152127080 |
SCREW |
|
2 |
9603895480 |
RING |
|
3 |
9150951680 |
BUSH |
|
4 |
9603945980 |
WASHER |
|
5 |
9607970680 |
SPRING |
|
6 |
9150917480 |
COVER |
|
7 |
14058419 |
NUT M6 |
|
8 |
500344937 |
THREADED UNION M10X1 |
|
9 |
504046292 |
ENGINE SILENTBLOCK RIGHT |
|
10 |
504046294 |
ENGINE SILENTBLOCK LEFT |
|
11 |
500325384 |
AIR INDUCT.FILTER |
|
12 |
18089191 |
CLIP |
|
13 |
500373711 |
PIPE SOCKET Ø10 MM |
|
14 |
500373710 |
PIPE SOCKET Ø8 MM |
|
15 |
8030572 |
CONNECTION |
|
16 |
504055611 |
FUEL LEVEL GAUGE |
