S23ENSC20.10A006

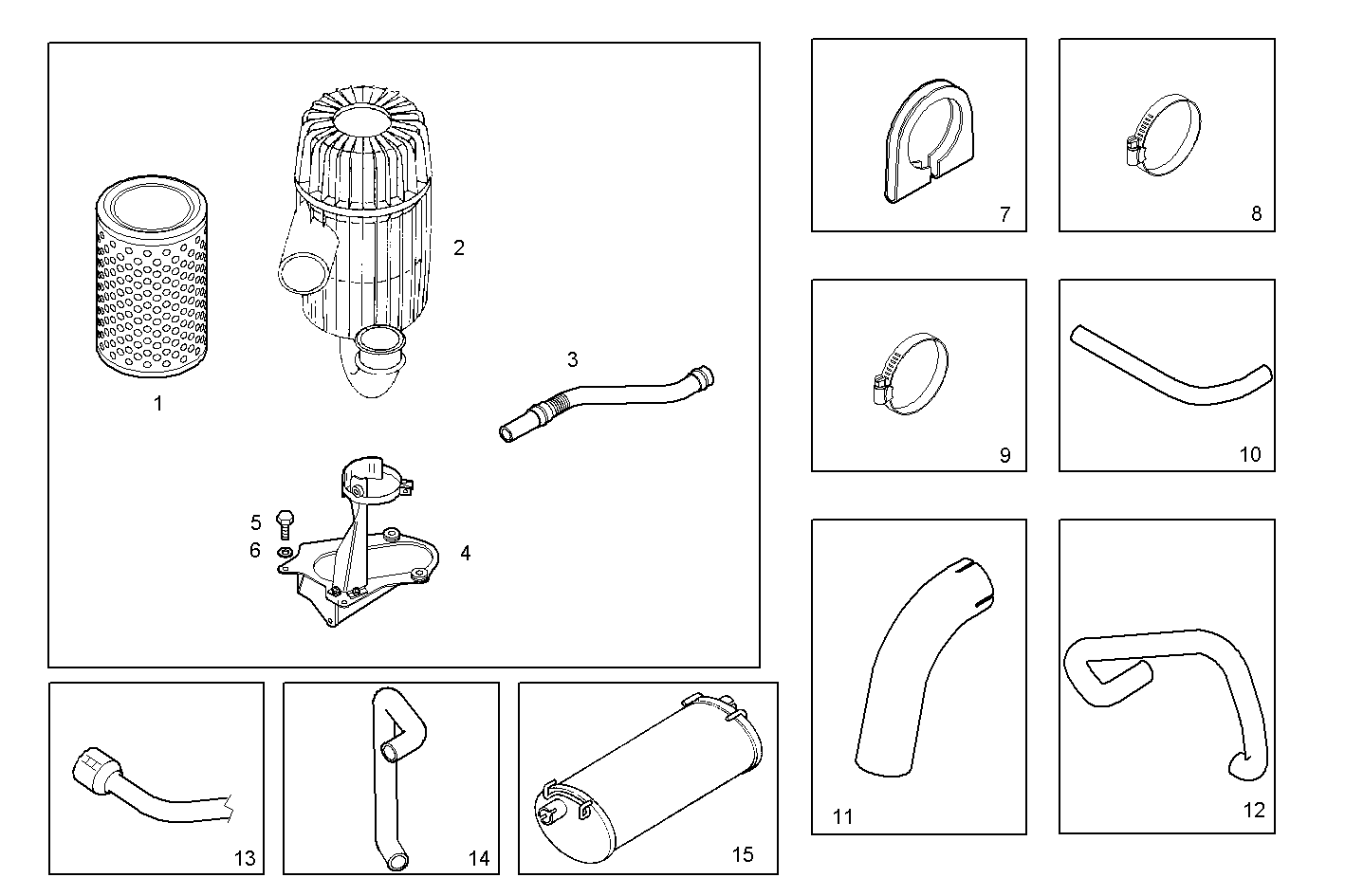

8600.225/02 ACCESSORIES [FROM 15/04/05] [FROM 15/04/05]
| Item | Part number | Description |
|---|---|---|
| 1 | 1903669 | AIR FILTER ELEMENT |
| 2 | 504054587 | AIR CLEANER ASSY |
| 3 | 500396509 | BREATHER PIPE |
| 4 | 504054585 | FASTENING BRACKET |
| 5 | 16604024 | HEXAGON BOLT M6X35 MM |
| 6 | 12647724 | WASHER Ø6X21 MM SP=1 MM |
| 7 | 8585923 | CLIP |
| 8 | 18089191 | CLIP |
| 9 | 13127770 | CLIP |
| 10 | 504018469 | WATER HOSE |
| 11 | 500314665 | TAIL PIPE |
| 12 | 504044686 | WATER HOSE |
| 13 | 504098506 | WATER HOSE |
| 14 | 504032760 | SUCTION LINE |
| 15 | 500329483 | SILENCER |
