S23ENSC20.10A007

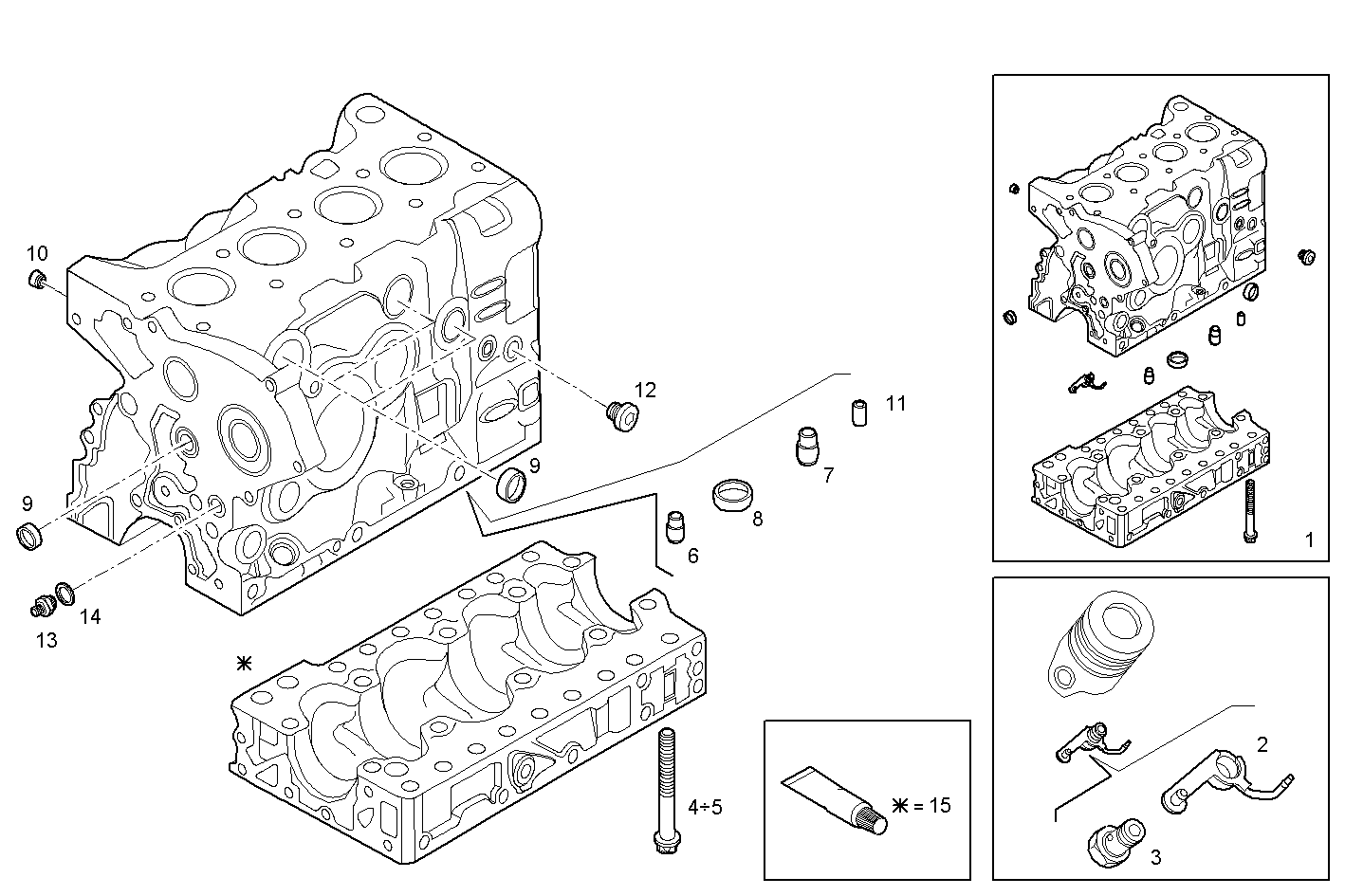

0400.194 CRANKCASE
| Item | Part number | Description |
|---|---|---|
| 1 | 504049279 | CRANKCASE ASSY |
| 2 | 504039888 | OIL NOZZLE |
| 3 | 500370623 | SCREW CONNECTOR M10X1 |
| 4 | 500373969 | SCREW |
| 5 | 504015885 | SCREW M8X1.25X80 MM |
| 6 | 504014642 | DOWEL PIN |
| 7 | 504014645 | DOWEL PIN |
| 8 | 16988501 | LOCK PLUG Ø25 MM |
| 9 | 16988601 | LOCK PLUG Ø28 MM |
| 10 | 504051238 | THREADED PLUG DIAM=3/8" |
| 11 | 99445814 | DOWEL PIN |
| 12 | 504016052 | LOCK PLUG M14X1,5 |
| 13 | 504033691 | THREADED UNION |
| 14 | 11270460 | GASKET Ø17X21X1,5 MM |
| 15 | 2992504 | ADHESIVE/STICKER LOCTITE |
