S23ENSC20.10A007

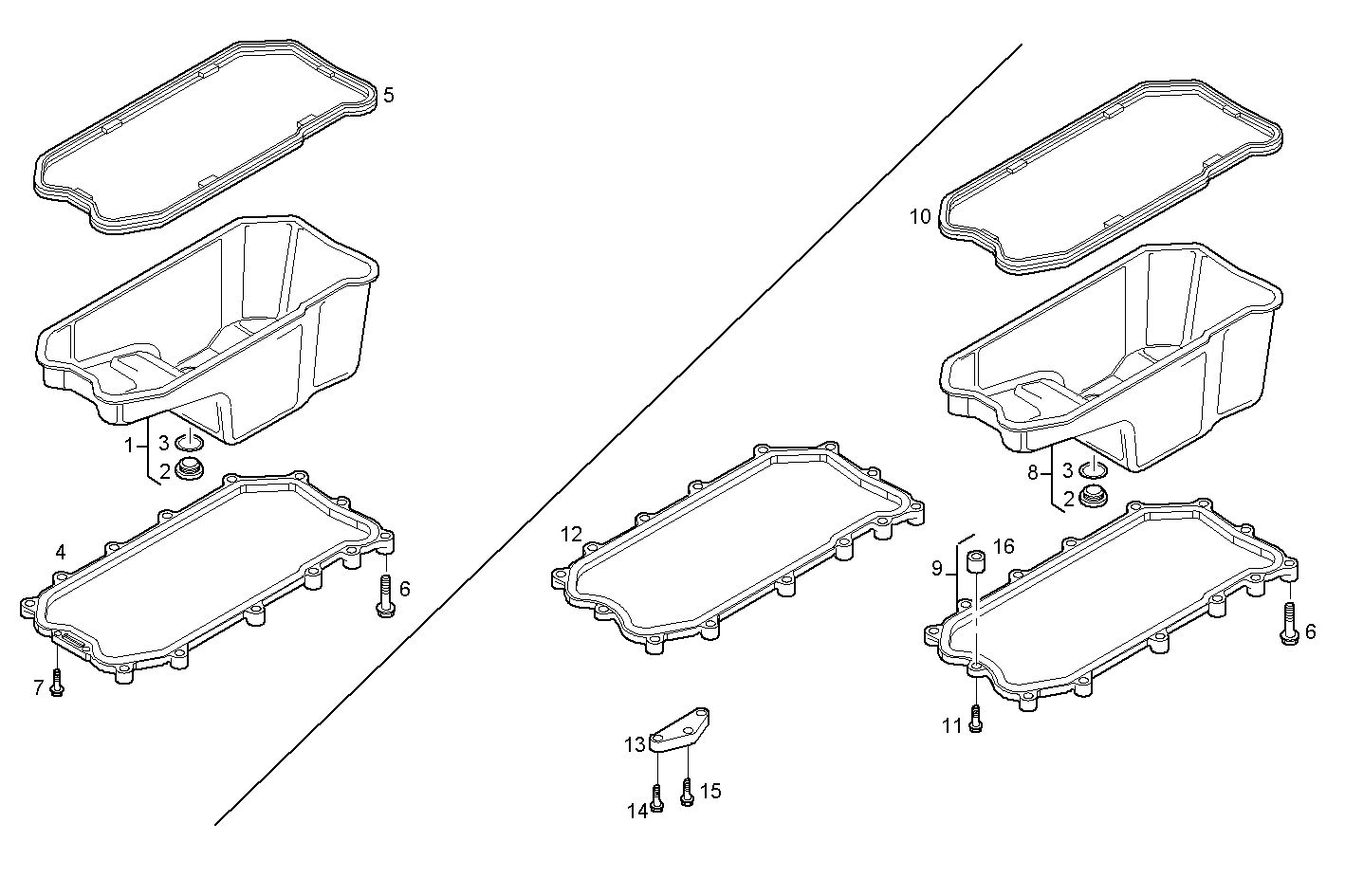

0420.211 OIL SUMP

Iveco/FPT OIL SUMP

Item Part number Description
1 504025487 OIL SUMP [UP TO # 273486]
2 16993411 THREADED PLUG M22X1,5
3 16508460 WASHER 22x27x1,5
4 504018341 SUPPORT
5 504018342 OIL SUMP GASKET
6 16586625 HEXAGON BOLT M8X35 MM
7 18137724 SCREW M6X30 MM
8 504154992 OIL SUMP [FROM # 273487]
9 504154880 FRAME [FROM # 273487]
10 504018307 OIL SUMP GASKET [FROM # 273487]
11 16586125 HEXAGON BOLT
12 504018306 FRAME
13 504002723 RETAINER
14 16689224 SOCKET-HEAD SCREW M6X20 MM
15 16586025 HEXAGON BOLT M6X30 MM
16 13604111 SPACER
