S23ENSC20.10A007

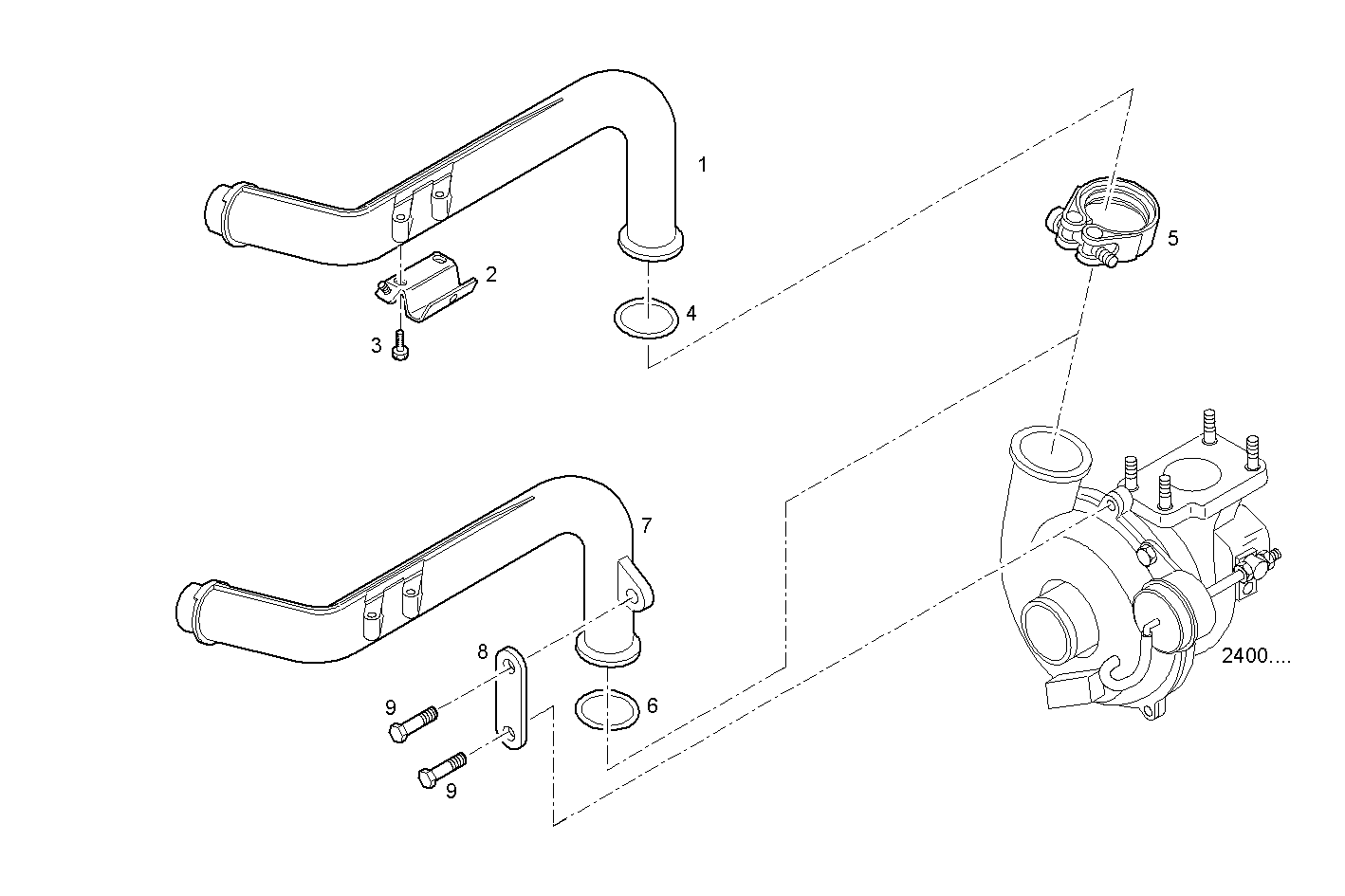

2430.030 EXIT AIR PIPE
| Item | Part number | Description |
|---|---|---|
| 1 | 504016430 | AIR PIPE/DUCT [UP TO # 101865] |
| 2 | 504038524 | FASTENING BRACKET |
| 3 | 16586324 | HEXAGON BOLT M8X1,25X20 MM |
| 4 | 17283581 | O-RING Ø44,12 MM SP=2,62 MM |
| 5 | 504017427 | CLIP |
| 6 | 14471181 | O-RING Ø46,99x5,33 MM |
| 7 | 504071244 | AIR PIPE/DUCT [FROM # 101866] |
| 8 | 504071257 | FASTENING BRACKET |
| 9 | 18137825 | HEXAGON BOLT M6X16 |
