S23ENSC20.10A007

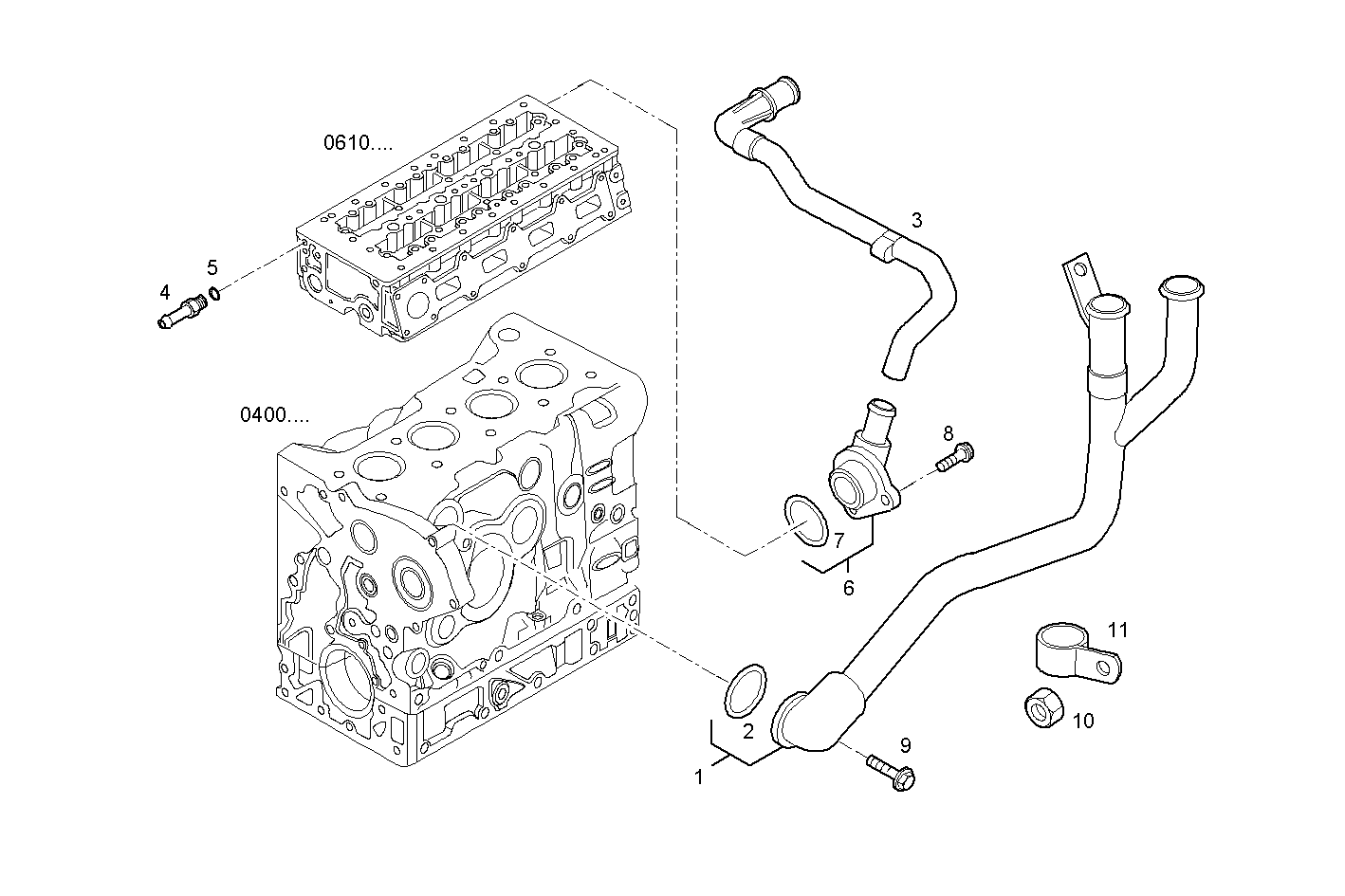

3240.207 DELIV. HEATING PIPE
| Item | Part number | Description |
|---|---|---|
| 1 | 504043221 | WATER PIPE |
| 2 | 17288480 | O-RING 3,53x21,81 |
| 3 | 504014196 | WATER PIPE |
| 4 | 500389975 | CONNECTION PIPE [UP TO # 361300] |
| 5 | 16550760 | GASKET Ø10X13,5 MM SP=1 |
| 6 | 504042174 | ELBOW COUPLING ASSY |
| 7 | 17288881 | O-RING Ø28,1 MM SP=3,5 MM |
| 8 | 18138424 | HEXAGON BOLT M8X20 MM |
| 9 | 18137824 | HEXAGON BOLT M6X16 MM |
| 10 | 17044731 | HEXAGON NUT M8 |
| 11 | 10450790 | PIPE CLIP Ø22 MM |
| 12 | 504158477 | CONNECTION PIPE [FROM # 361301] |
