S23ENSC24.10A009

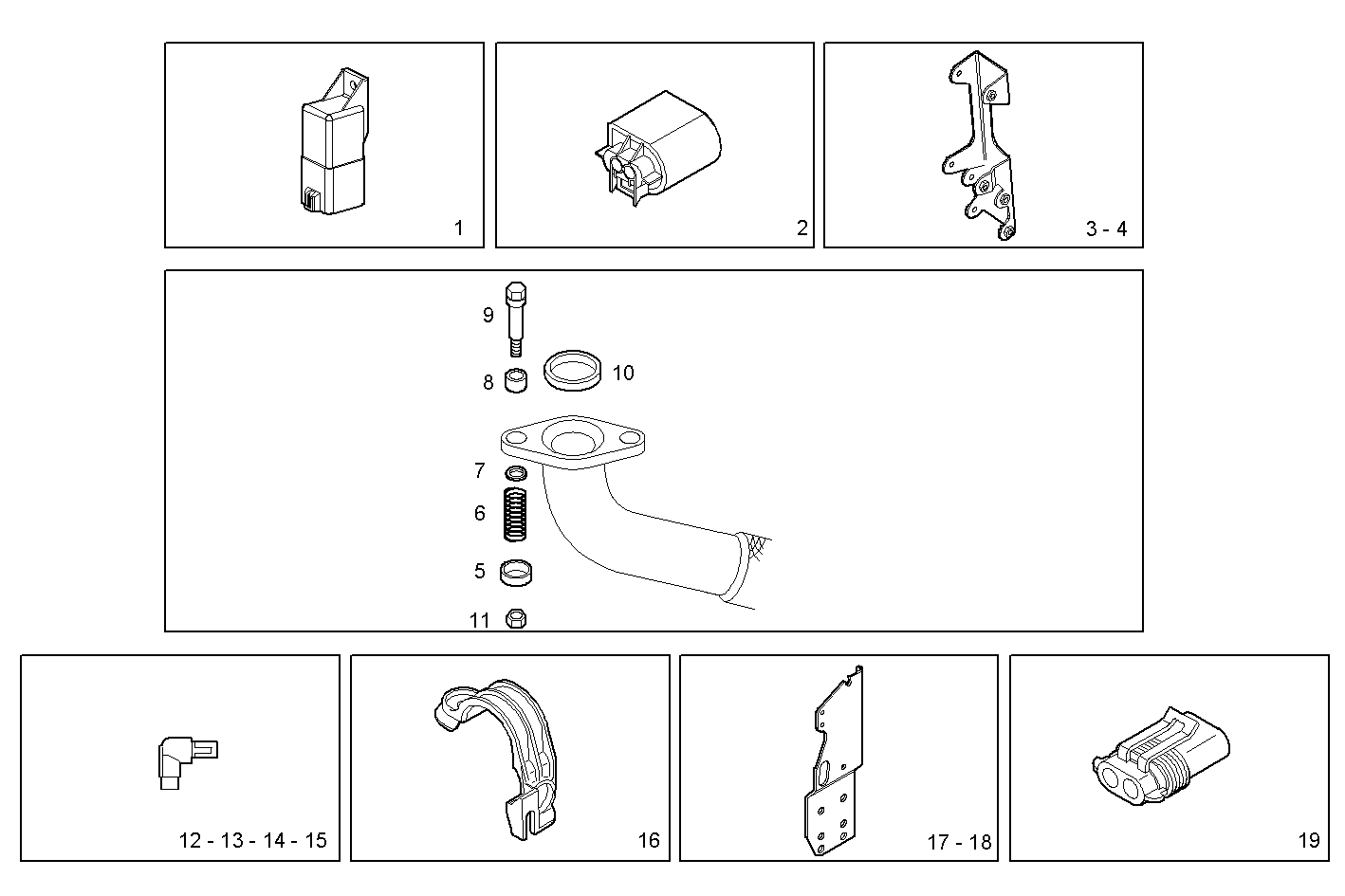

8600.181 ACCESSORIES
| Item | Part number | Description |
|---|---|---|
| 1 | 504013085 | ELECTR.CONTR.UNIT PREHEATER CONTROL |
| 2 | 8030896 | CONNECTION assy for alternator |
| 3 | 99487945 | RETAINER LEFT |
| 4 | 500333124 | RETAINER RIGHT |
| 5 | 9150917480 | COVER |
| 6 | 9607970680 | SPRING |
| 7 | 9603945980 | WASHER |
| 8 | 9150951680 | BUSH |
| 9 | 9152127080 | SCREW |
| 10 | 9603895480 | RING |
| 11 | 14058419 | NUT M6 |
| 12 | 99466089 | WIRE CONNECTOR |
| 13 | 99467579 | TERMINAL |
| 14 | 99472719 | PROTECTION |
| 15 | 98458120 | GASKET |
| 16 | 504045490 | FASTENING BRACKET |
| 17 | 504052019 | RETAINER LEFT |
| 18 | 504052020 | RETAINER RIGHT |
| 19 | 8033710 | CONNECTION ASSY |
