S30ENT422.10P002

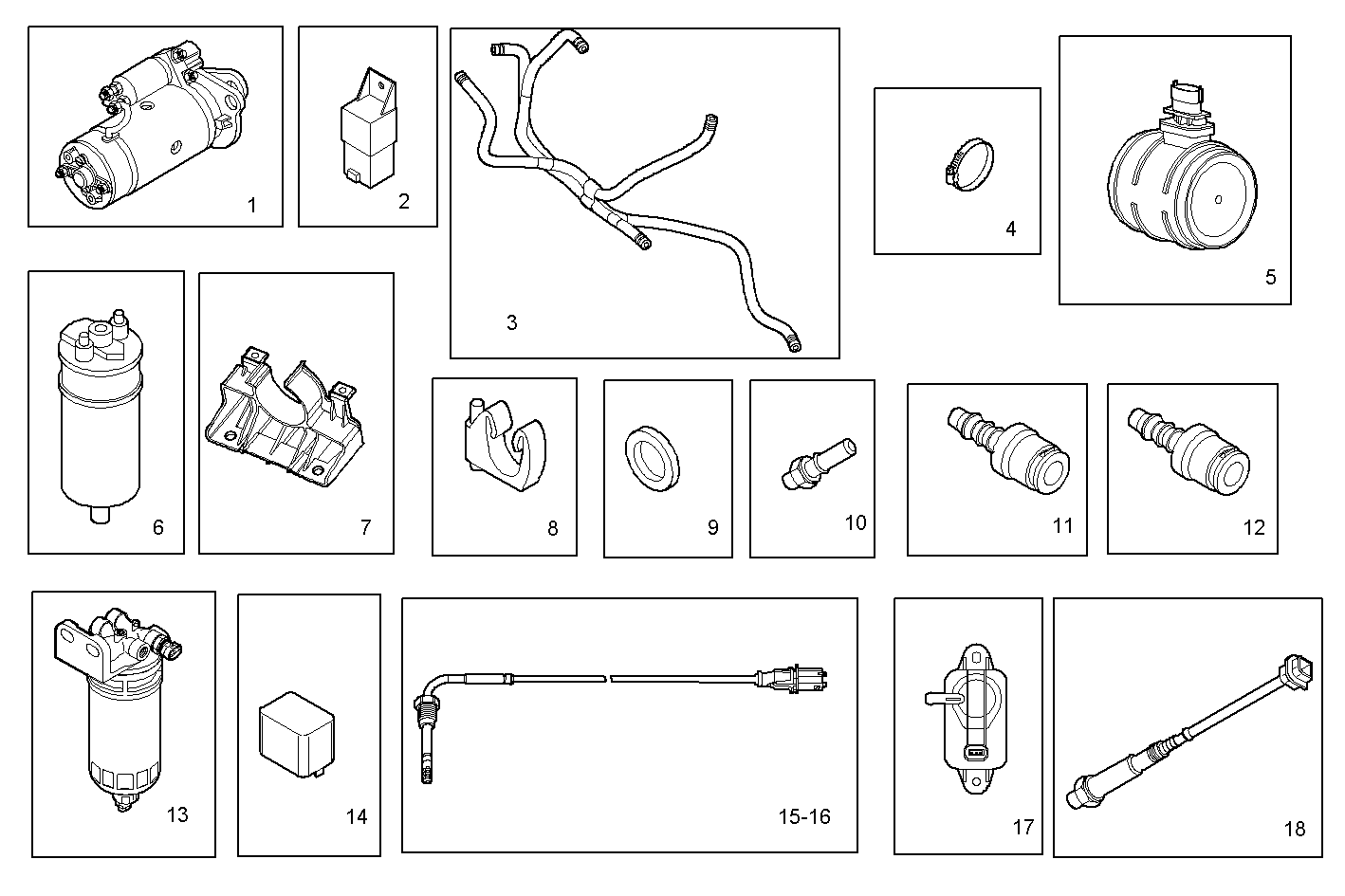

8600.224 ACCESSORIES
| Item | Part number | Description |
|---|---|---|
| 1 | 8029647 | STARTER MOTOR ASSY |
| 2 | 69500830 | ELECTR.CONTR.UNIT for Heather plug |
| 3 | 504134167 | WATER PIPE |
| 4 | 18088294 | CLIP |
| 5 | 504136035 | METER AIR FÚOW |
| 6 | 504125595 | PUMP Electric for fuel |
| 7 | 504066074 | FASTENING BRACKET |
| 8 | 500350985 | SPRING CLAMP |
| 9 | 10284460 | SEAL GASKET Ø10X16 MM |
| 10 | 500344937 | THREADED UNION M10X1 |
| 11 | 500373710 | PIPE SOCKET Ø8 MM |
| 12 | 500373711 | PIPE SOCKET Ø10 MM |
| 13 | 504080664 | FUEL FILTER ASSY |
| 14 | 504049024 | RELAY 10/20A - 15,5X23 |
| 15 | 504109529 | SENSOR gas temperature |
| 16 | 504102603 | SENSOR gas temperature |
| 17 | 504102810 | SENSOR Pressure |
| 18 | 504135503 | SENSOR LAMBDA |
