S30ENT422.11A001

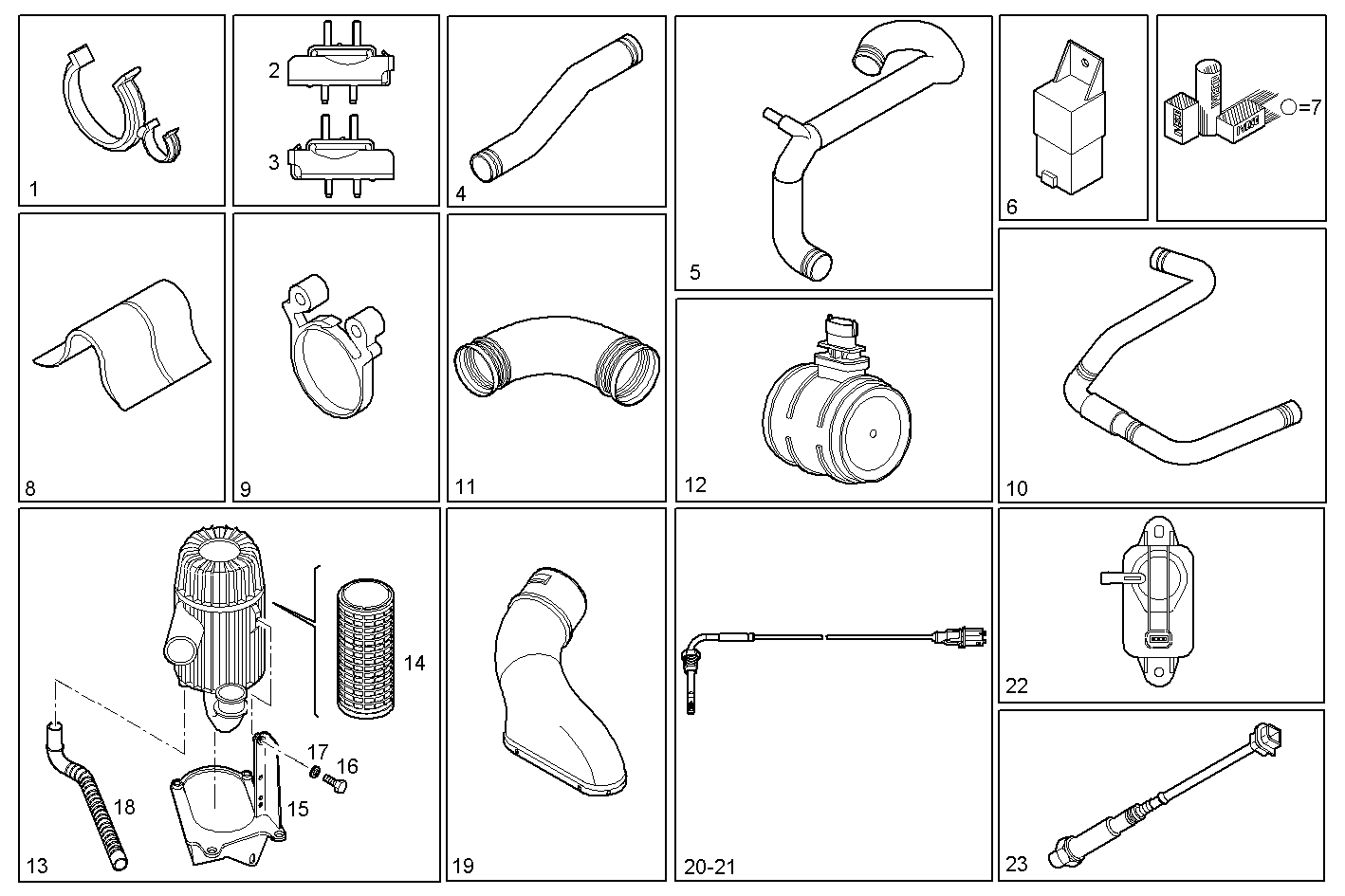

8600.350/01 ACCESSORIES
| Item | Part number | Description |
|---|---|---|
| 1 | 504074141 | SPRING CLAMP |
| 2 | 504046292 | ENGINE SILENTBLOCK RIGHT |
| 3 | 504046294 | ENGINE SILENTBLOCK LEFT |
| 4 | 504086541 | WATER HOSE |
| 5 | 504215702 | WATER HOSE |
| 6 | 69500830 | ELECTR.CONTR.UNIT for Heather plug |
| 7 | 504191582 | KIT-HYDRAULIC CLUTCH CYL. |
| 8 | 504108950 | LINER |
| 9 | 500317511 | SPRING CLAMP |
| 10 | 504131280 | BREATHER PIPE |
| 11 | 504134674 | FILTER HOSE |
| 12 | 504136035 | METER AIR FÚOW |
| 13 | 504154699 | AIR CLEANER |
| 14 | 1903669 | AIR FILTER ELEMENT |
| 15 | 504023257 | FASTENING BRACKET |
| 16 | 16604024 | HEXAGON BOLT M6X35 MM |
| 17 | 12647724 | WASHER Ø6X21 MM SP=1 MM |
| 18 | 500396509 | BREATHER PIPE |
| 19 | 504193548 | AIR INDUCT.FILTER |
| 20 | 504109529 | SENSOR gas temperature |
| 21 | 504102603 | SENSOR gas temperature |
| 22 | 504102810 | SENSOR Pressure |
| 23 | 504135503 | SENSOR LAMBDA |
