S30ENT422.11A001

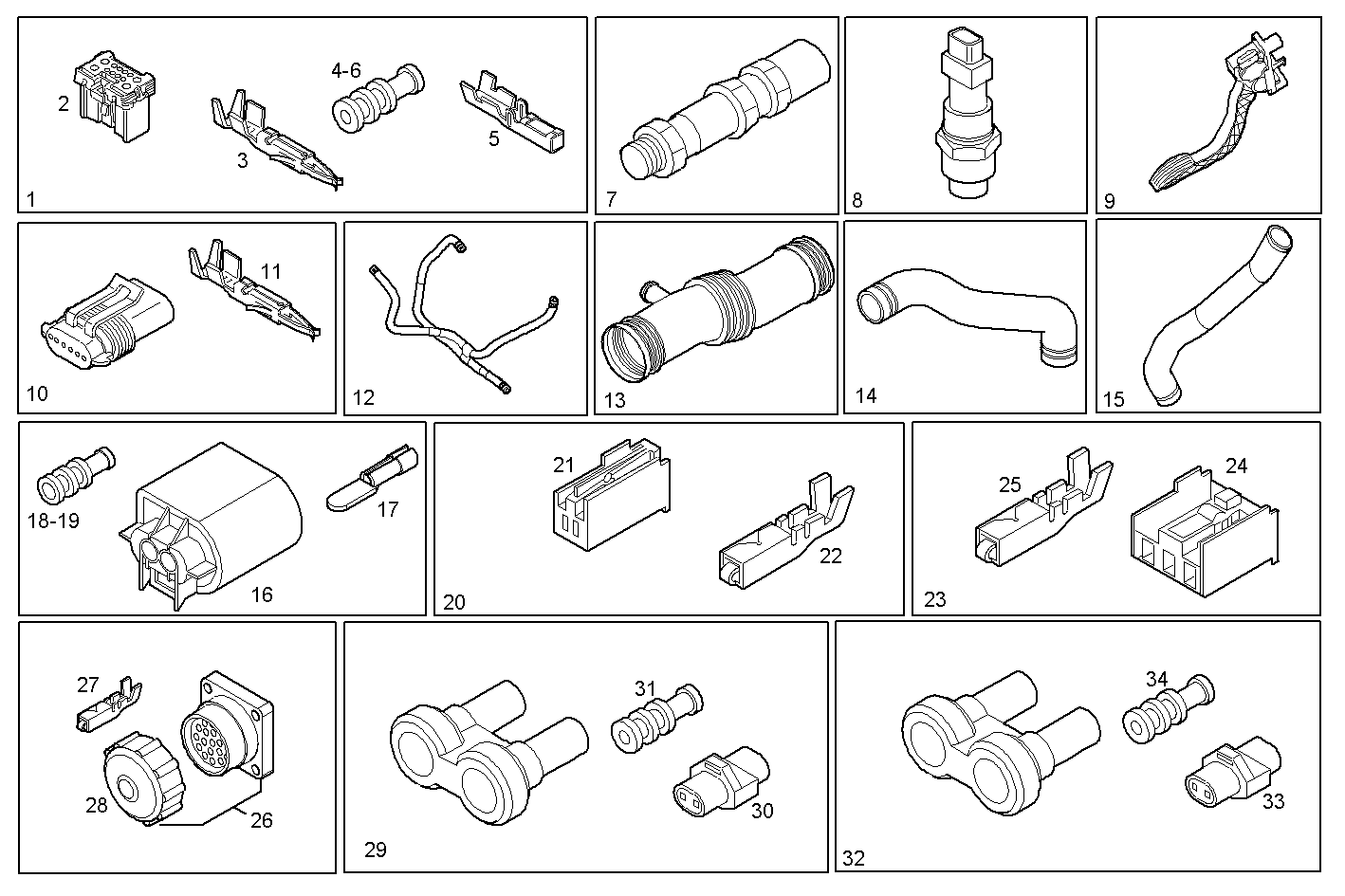

8600.350/04 ACCESSORIES
| Item | Part number | Description |
|---|---|---|
| 1 | 8048176 | WIRE CONNECTOR ASSY |
| 2 | 504079117 | WIRE CONNECTOR |
| 3 | 504079558 | TERMINAL |
| 4 | 504079611 | GASKET |
| 5 | 504079453 | TERMINAL |
| 6 | 504079468 | GASKET |
| 7 | 500319244 | LIGHT STOP SWITCH |
| 8 | 500365771 | SWITCH |
| 9 | 504061734 | ACCELERATOR PEDAL |
| 10 | 8029084 | CONNECTION kit for accelerator pedal |
| 11 | 99488897 | TERMINAL |
| 12 | 504152582 | WATER PIPE |
| 13 | 504134675 | FILTER HOSE |
| 14 | 504136611 | RUBBER SLEEVE |
| 15 | 504300628 | RUBBER SLEEVE |
| 16 | 8030896 | CONNECTION assy for alternator |
| 17 | 12309290 | TERMINAL |
| 18 | 4835259 | GASKET |
| 19 | 98420215 | PLUG |
| 20 | 8031429 | CONNECTION ASSY |
| 21 | 12374089 | WIRE CONNECTOR |
| 22 | 12366054 | TERMINAL |
| 23 | 8031430 | CONNECTION ASSY |
| 24 | 12366680 | WIRE CONNECTOR |
| 26 | 8034787 | WIRE CONNECTOR ASSY |
| 27 | 99462549 | TERMINAL |
| 28 | 8033302 | CAP |
| 29 | 8045169 | CONNECTION ASSY |
| 30 | 16849387 | WIRE CONNECTOR |
| 31 | 500382761 | RUBBER BUSH BLUE |
| 32 | 8045170 | CONNECTION ASSY |
| 33 | 16849388 | WIRE CONNECTOR |
