S30ENT422.11A001

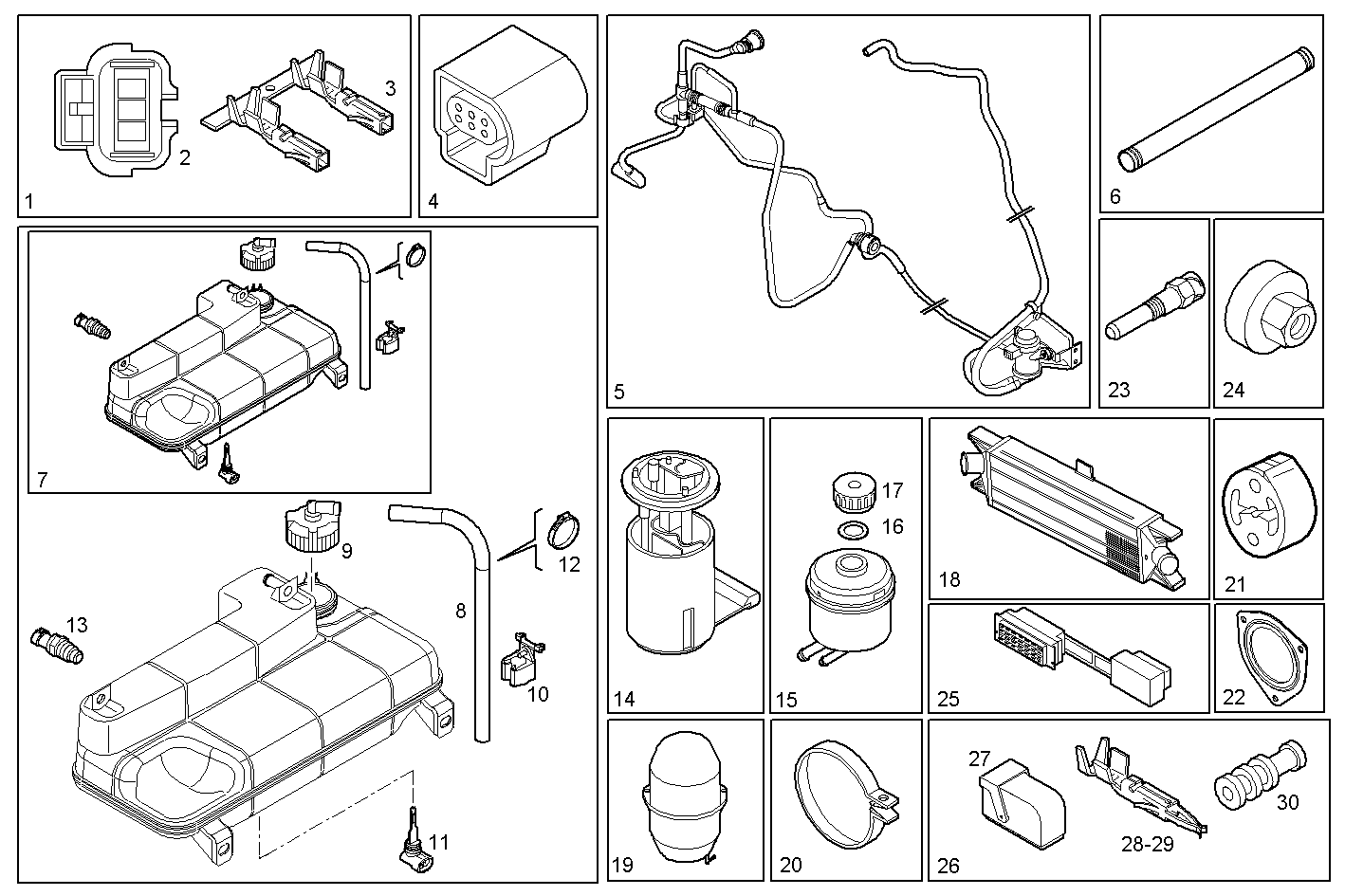

8600.350/05 ACCESSORIES
| Item |
Part number |
Description |
|
1 |
8045846 |
CONNECTION ASSY |
|
2 |
500324460 |
WIRE CONNECTOR |
|
3 |
500324482 |
TERMINAL |
|
4 |
8045925 |
CONNECTION |
|
5 |
504201291 |
HOSE |
|
6 |
504163465 |
HOSE |
|
7 |
504136607 |
EXPANSION TANK ASSY |
|
8 |
93804651 |
PLASTIC TUBE |
|
9 |
99489567 |
PLUG [from …] |
|
10 |
500386067 |
SPRING CLAMP |
|
11 |
504008619 |
SENSOR |
|
12 |
17766901 |
CLIP |
|
13 |
69502214 |
SWITCH |
|
14 |
69503526 |
LEVEL SENSOR |
|
15 |
504073722 |
OIL TANK ASSY |
|
16 |
42546129 |
WASHER |
|
17 |
42547928 |
LOCK PLUG |
|
18 |
504084140 |
INTERCOOLER |
|
19 |
99480041 |
TANK |
|
20 |
504054445 |
CABLE STRAP |
|
21 |
504131271 |
RUBBER LUG |
|
22 |
504131270 |
GASKET D.P.F./SILENCER |
|
23 |
500327763 |
TRANSMITTER |
|
24 |
500335678 |
REAR LIGHT SWITCH |
|
25 |
8046385 |
CONNECTION OBD |
|
26 |
8048168 |
CONNECTION ASSY |
|
27 |
504084148 |
WIRE CONNECTOR |
|
28 |
504084153 |
TERMINAL |
|
29 |
504079558 |
TERMINAL |
|
30 |
504079610 |
GASKET |
