S30ENT422.30A001

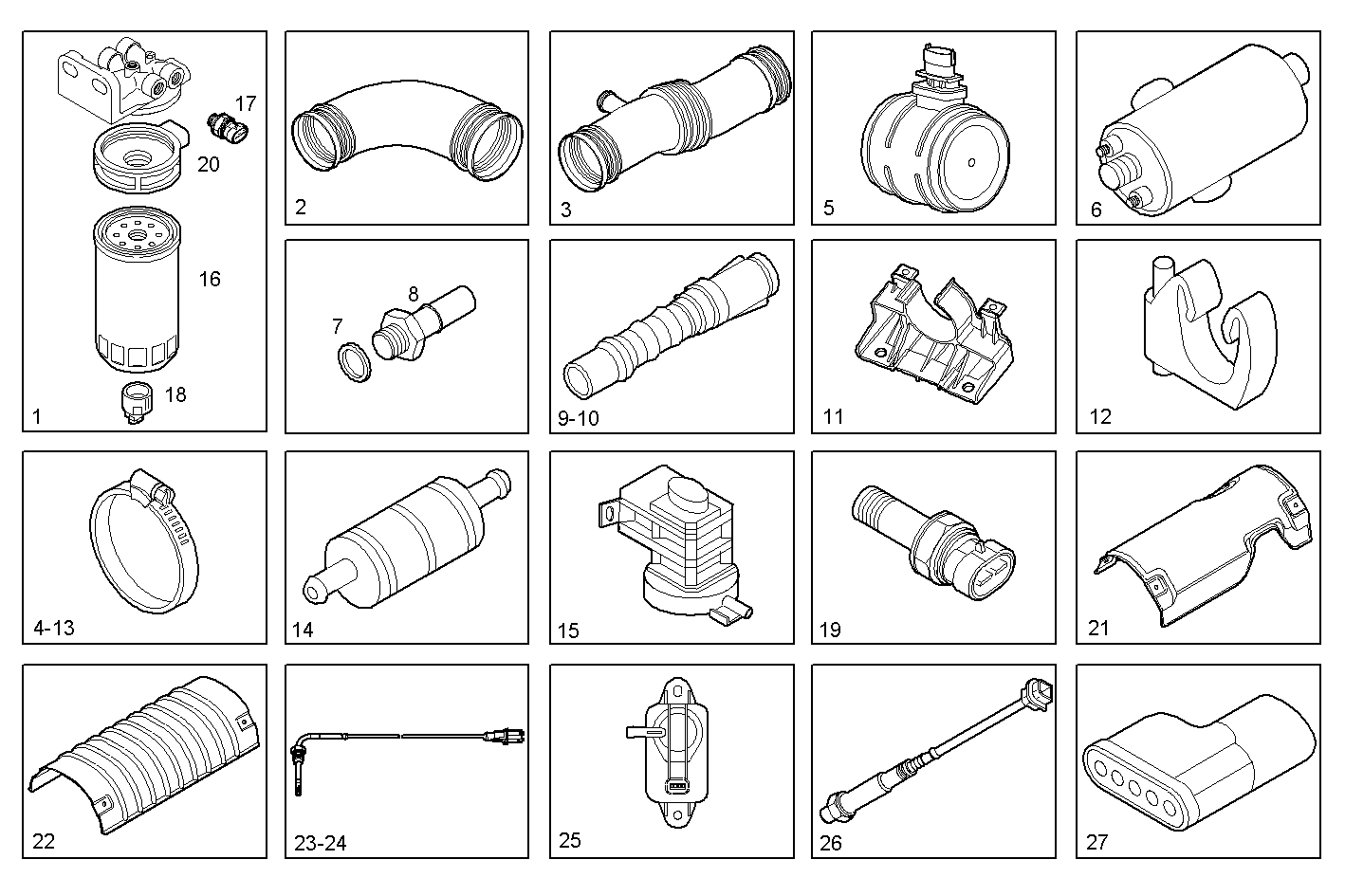

8600.329/03 ACCESSORIES
| Item | Part number | Description |
|---|---|---|
| 1 | 504034184 | FUEL FILTER ASSY |
| 2 | 504134674 | FILTER HOSE |
| 3 | 504134675 | FILTER HOSE |
| 4 | 17765193 | CLIP Ø70/90 MM |
| 5 | 504136035 | METER AIR FÚOW |
| 6 | 500358094 | FUEL PUMP |
| 7 | 4858606 | GASKET Ø10X14X1 MM |
| 8 | 500344937 | THREADED UNION M10X1 |
| 9 | 500373710 | PIPE SOCKET Ø8 MM |
| 10 | 500373711 | PIPE SOCKET Ø10 MM |
| 11 | 504066074 | FASTENING BRACKET |
| 12 | 500350985 | SPRING CLAMP |
| 13 | 17765093 | CLIP Ø60/80 MM |
| 14 | 500318246 | PREFILTER |
| 15 | 46524556 | ELECTROVALVE EGR |
| 16 | 2992300 | FUEL FILTER ELEM. |
| 17 | 42535227 | SENSOR |
| 18 | 42536684 | SENSOR water in fuel |
| 19 | 42538752 | SENSOR |
| 20 | 42548584 | HEATER FUEL FILTE |
| 21 | 504129349 | PROTECTION for D.P.F. |
| 22 | 504129350 | PROTECTION for Silencer |
| 23 | 504109529 | SENSOR gas temperature |
| 24 | 504102603 | SENSOR gas temperature |
| 25 | 504102810 | SENSOR Pressure |
| 26 | 504135503 | SENSOR LAMBDA |
| 27 | 8030193 | WIRE CONNECTOR assy 5 pin female |
