S30ENT422.40A001

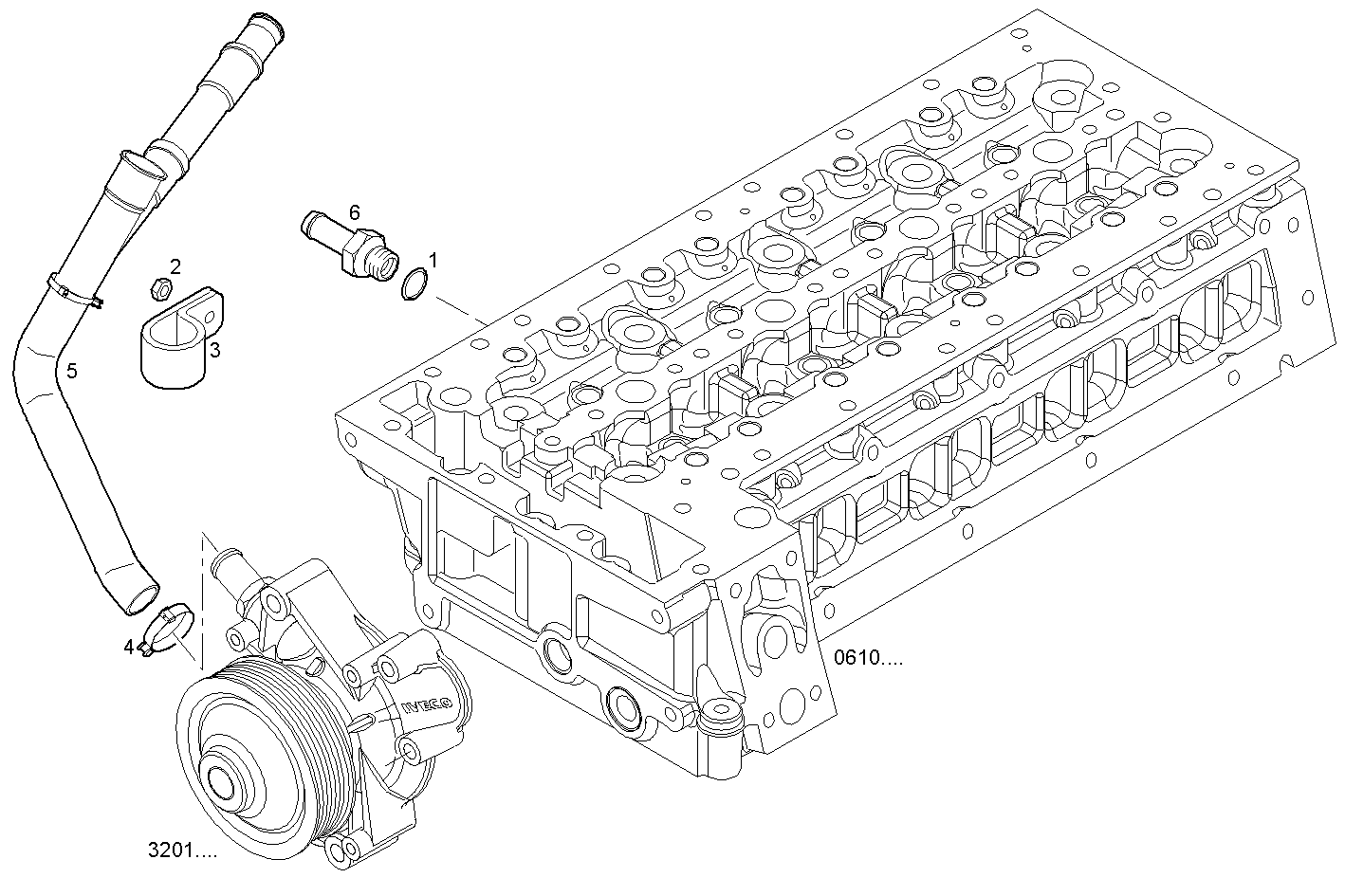

3240.203 DELIV. HEATING PIPE
| Item | Part number | Description |
|---|---|---|
| 1 | 10260160 | SEAL GASKET Ø10X14 MM SP=1 MM |
| 2 | 17044725 | HEXAGON NUT M8 |
| 3 | 17315290 | LOCK/YOKE |
| 4 | 98463348 | CLIP |
| 5 | 504095970 | HEATING TUBE |
| 6 | 504158477 | CONNECTION PIPE [FROM # 361301] |
