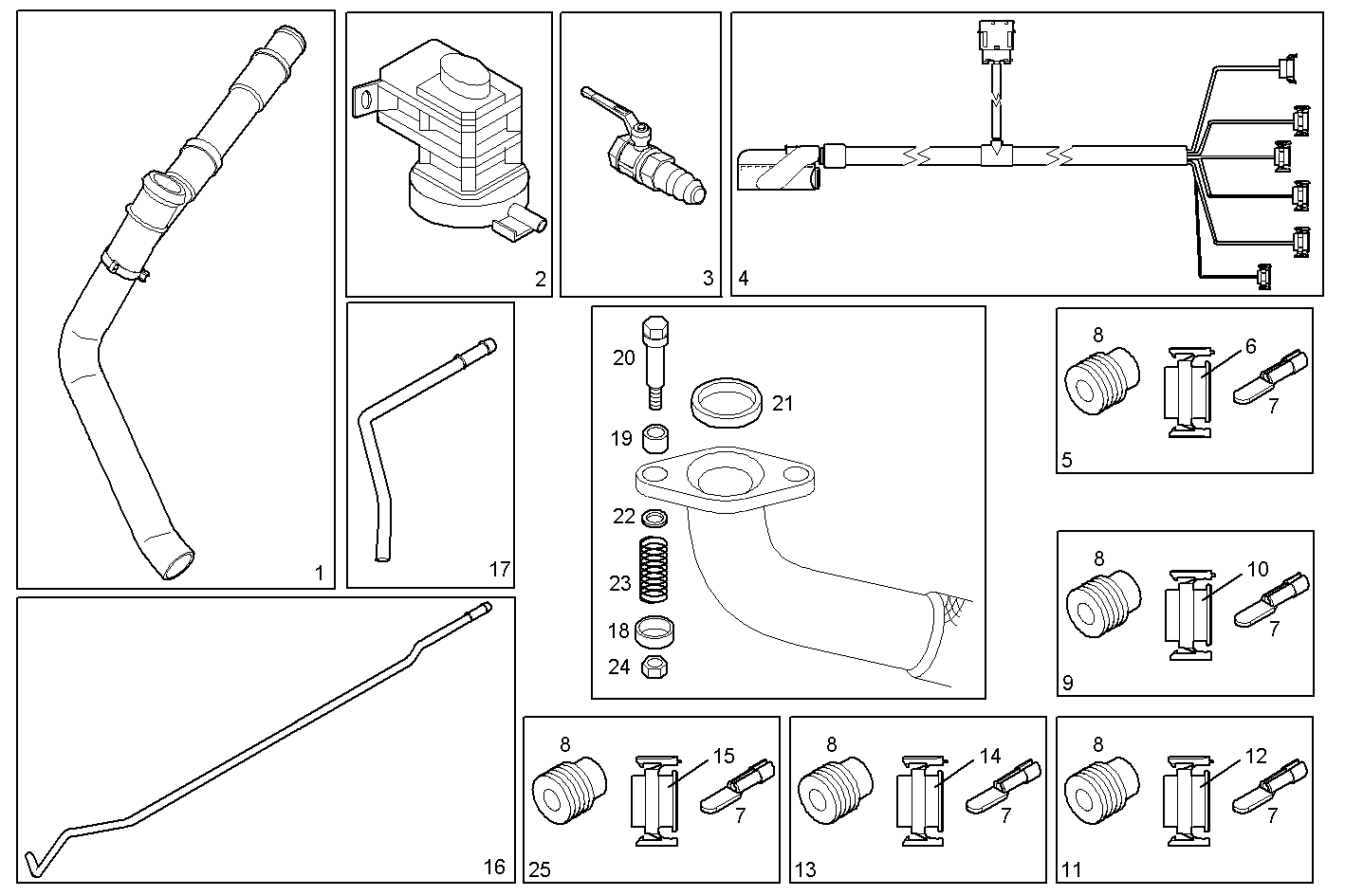

| Item |
Part number |
Description |
|
1 |
504095970 |
HEATING TUBE |
|
2 |
46524556 |
ELECTROVALVE EGR |
|
3 |
77363342 |
DRAIN COCK |
|
4 |
8047027 |
ENGINE HARNESS [UP TO 22/02/08] |
|
5 |
8035244 |
WIRE CONNECTOR assy 19 pin male -pin layout A |
|
6 |
4859430 |
CONNECTION 19 pin male - black colour |
|
7 |
4863438 |
TERMINAL |
|
8 |
4861937 |
RUBBER BUSH |
|
9 |
8032279 |
WIRE CONNECTOR assy 19 pin male -pin layout B |
|
10 |
4859433 |
CONNECTION 19 pin male - yellow colour |
|
11 |
8032280 |
WIRE CONNECTOR assy 19 pin male -pin layout C |
|
12 |
4859431 |
CONNECTION 19 pin male - white colour |
|
13 |
8032282 |
WIRE CONNECTOR assy 10 pin male -pin layout E |
|
14 |
4859418 |
CONNECTION 10 pin male - black colour |
|
15 |
4859428 |
WIRE CONNECTOR |
|
16 |
504282140 |
PIPE rear - for pressure sensor |
|
17 |
504131274 |
PIPE front - for pressure sensor |
|
18 |
9150917480 |
COVER |
|
19 |
9150951680 |
BUSH |
|
20 |
9152127080 |
SCREW |
|
21 |
9603895480 |
RING |
|
22 |
9603945980 |
WASHER |
|
23 |
9607970680 |
SPRING |
|
24 |
16750125 |
HEXAGON NUT M6 |
|
25 |
8042735 |
WIRE CONNECTOR assy 19 pin male -pin layout H |
