S30ENT422.70A002

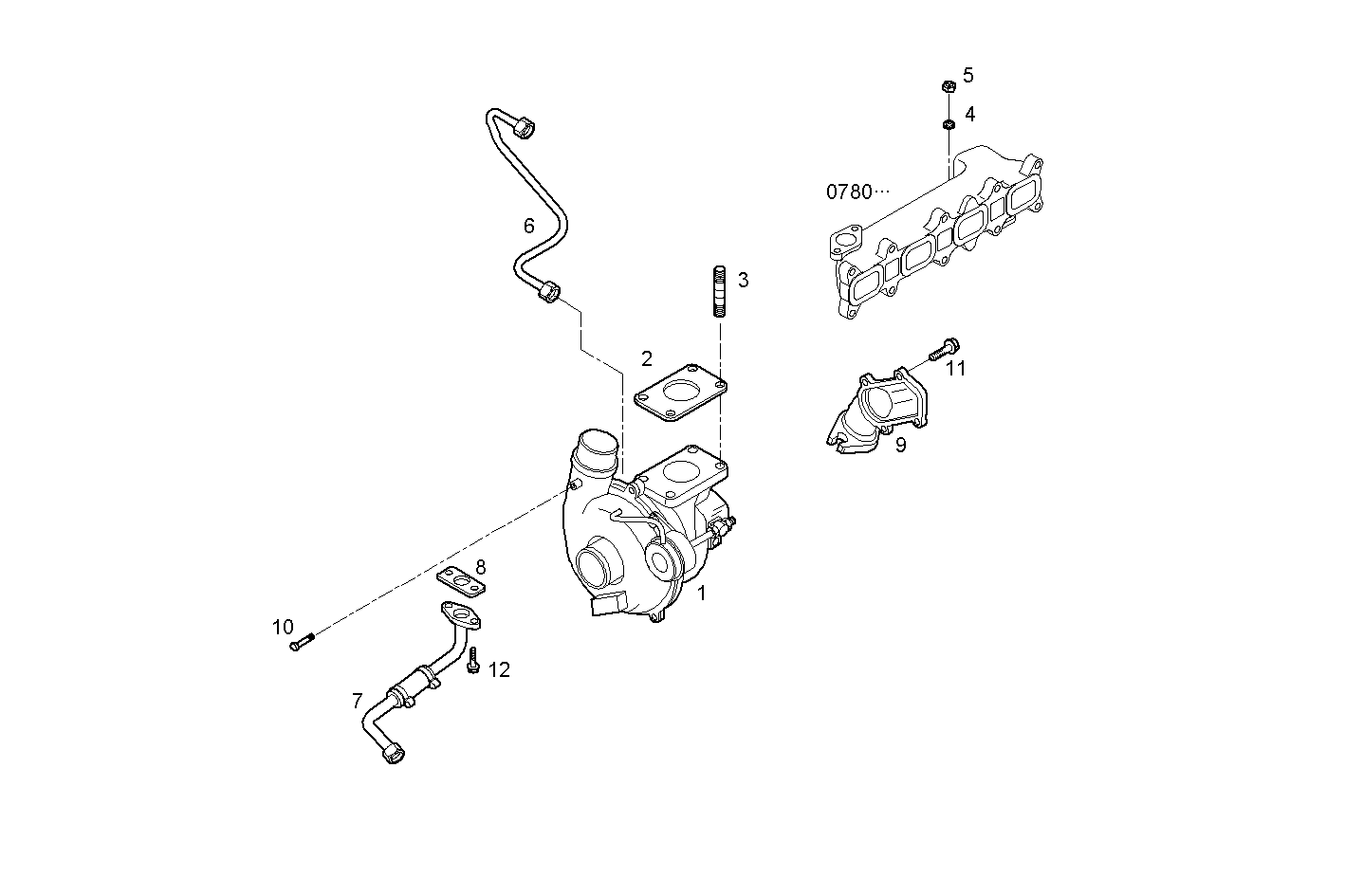

2400.072 TURBOCHARGER
| Item | Part number | Description |
|---|---|---|
| 1 | 504340177 | TURBOCHARGER ASSY |
| 2 | 4834948 | EXH. MANIFOLD GKT |
| 3 | 16729424 | STUD M8X1,25X25 |
| 4 | 17094914 | WASHER 8x16 |
| 5 | 500322677 | HEXAGON NUT M8 |
| 6 | 504235465 | OIL LINE INLET |
| 7 | 504235467 | OIL LINE OUTLET |
| 8 | 500370706 | FLAT ENGINE GASKET |
| 9 | 504229266 | AIR PIPE/DUCT |
| 10 | 18137825 | HEXAGON BOLT M6X16 |
| 11 | 16673735 | HEXAGON BOLT M8X25 MM |
| 12 | 16585870 | HEXAGON BOLT M6X20 |
