S30ENT422.70A002

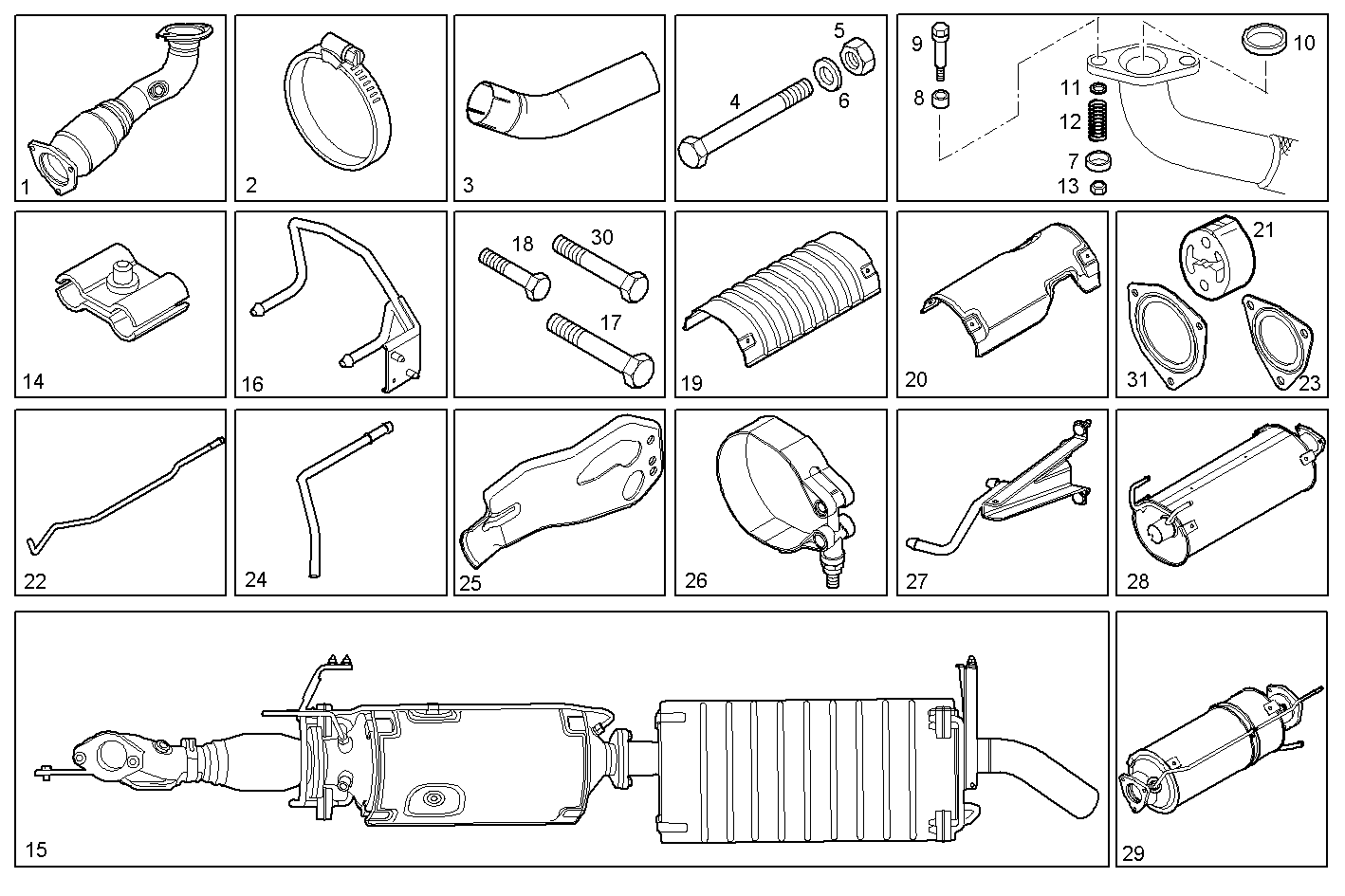

8600.329/04 ACCESSORIES

Iveco/FPT ACCESSORIES

Item Part number Description
1 504161873 EXHAUST PIPE
2 8582510 CLIP
3 504041806 TAIL PIPE
4 16598425 HEXAGON BOLT M8X110 MM
5 16750225 HEXAGON NUT M8
6 16889624 WASHER
7 9150917480 COVER
8 9150951680 BUSH
9 9152127080 SCREW
10 9603895480 RING
11 9603945980 WASHER
12 9607970680 SPRING
13 16750125 HEXAGON NUT M6
14 504131272 SPRING CLAMP
15 504161924 SILENCER ASSY
16 504131268 RETAINER for D.P.F.
17 16587125 HEXAGON BOLT M10X25 MM
18 16596924 HEXAGON BOLT M6X10 MM
19 504129350 PROTECTION for Silencer
20 504129349 PROTECTION for D.P.F.
21 504131271 RUBBER LUG
22 504282140 PIPE rear - for pressure sensor
23 504131269 GASKET FRONT PIPE/D.P.F.
24 504131274 PIPE front - for pressure sensor
25 504166349 RETAINER
26 504131267 CLIP
27 504041802 FASTENING BRACKET
28 504131265 SILENCER [UP TO 22/02/08]
29 504290373 SILENCER
30 16673635 HEXAGON BOLT M8X1.25X20
31 504131270 GASKET D.P.F./SILENCER
