S30ENT422.70A002

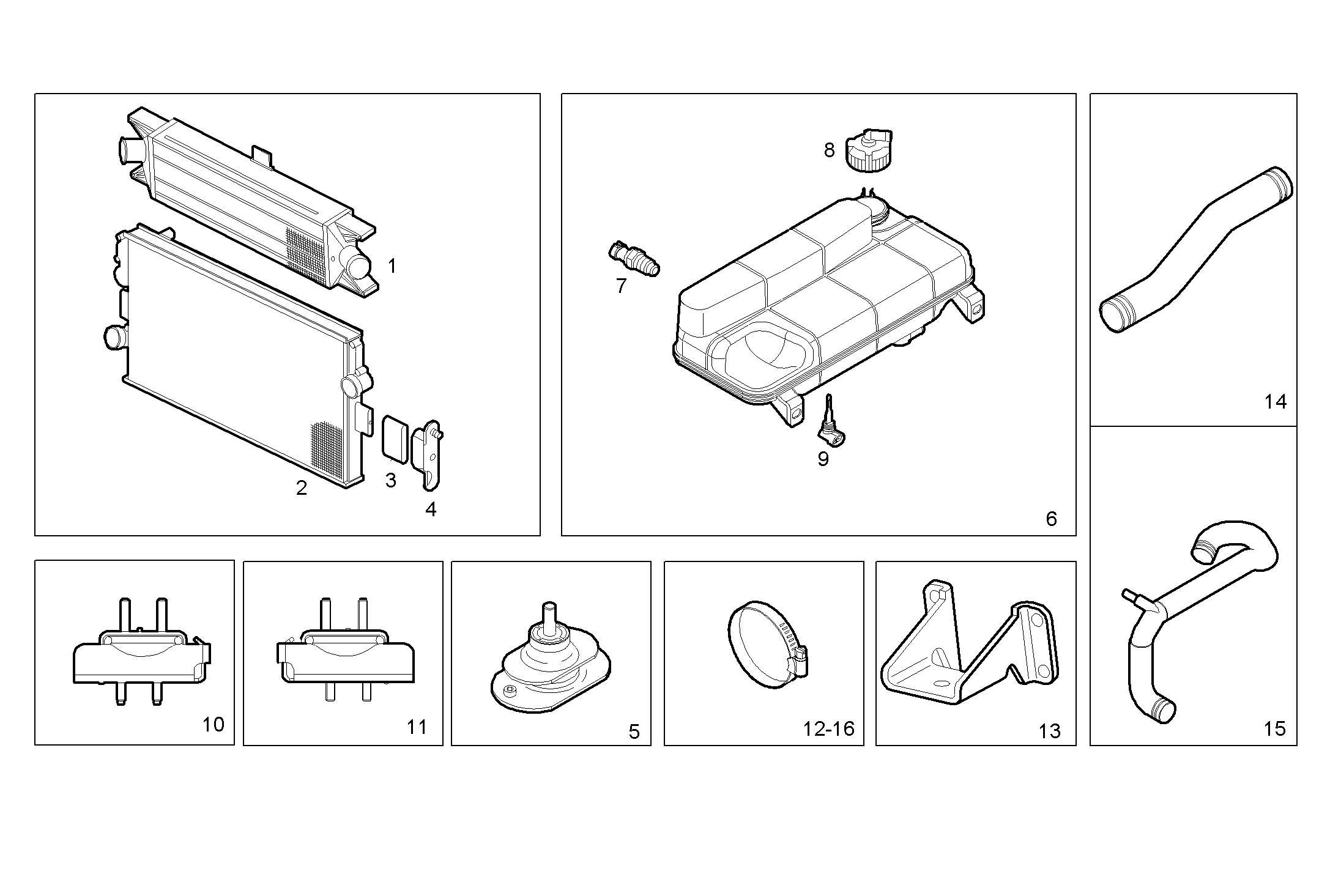

8600.347/01 ACCESSORIES
| Item | Part number | Description |
|---|---|---|
| 1 | 504084140 | INTERCOOLER |
| 2 | 504084141 | WATER RADIATOR |
| 3 | 93809291 | RUBBER PAD |
| 4 | 93810564 | SUPPORT |
| 5 | 504074159 | DOWEL |
| 6 | 504136607 | EXPANSION TANK ASSY |
| 7 | 69502214 | SWITCH |
| 8 | 99489567 | PLUG [from …] |
| 9 | 504008619 | SENSOR |
| 10 | 500339072 | DOWEL FRONT - RIGHT |
| 11 | 500345261 | DOWEL FRONT - LEFT |
| 12 | 18088692 | HOSE CLIP m32-50 |
| 13 | 504074160 | RETAINER |
| 14 | 504086541 | WATER HOSE |
| 15 | 504215702 | WATER HOSE |
| 16 | 500386067 | SPRING CLAMP |
