S30ENT422.70A002

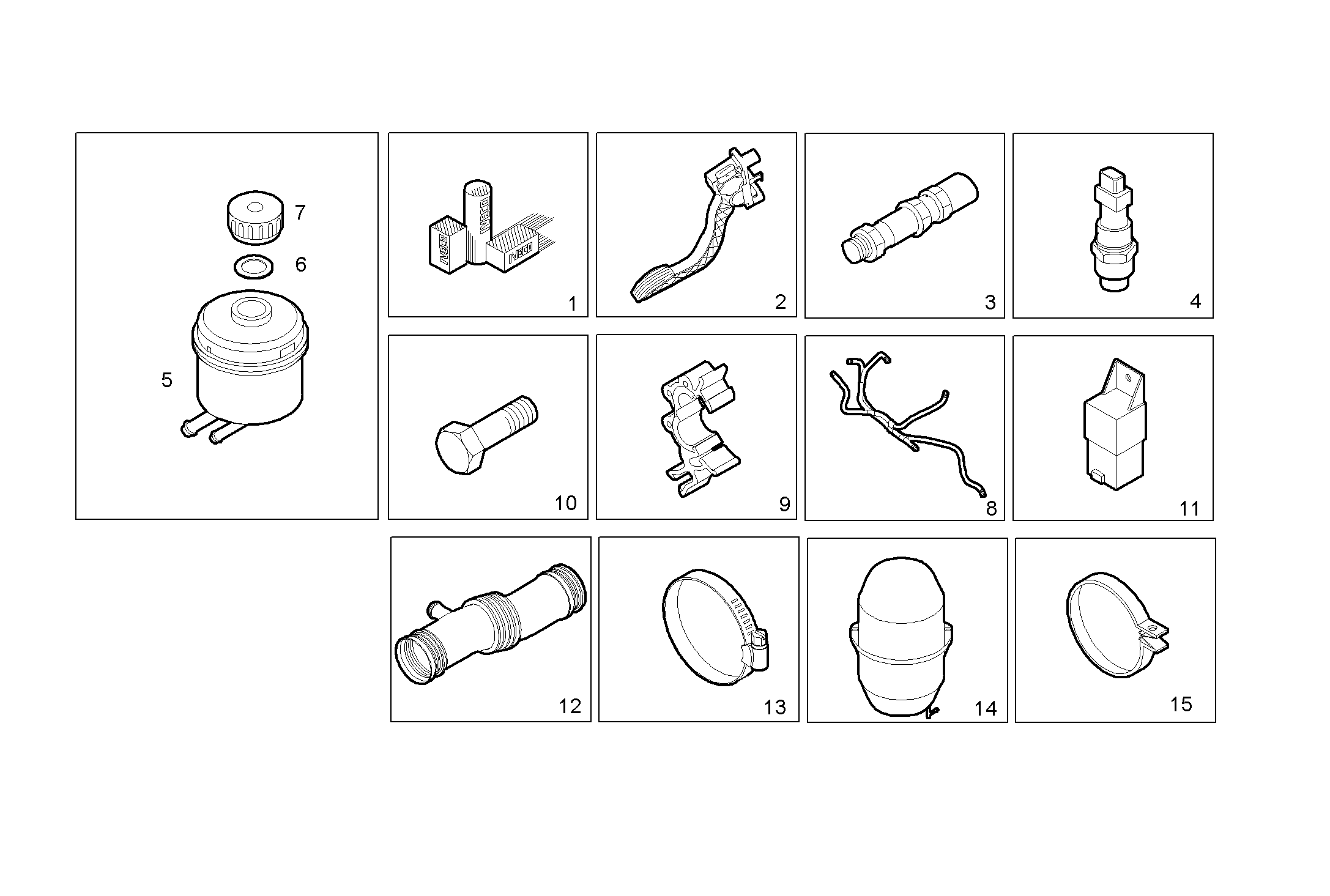

8600.347/02 ACCESSORIES
| Item | Part number | Description |
|---|---|---|
| 1 | 500334937 | KIT-HYDRAULIC CLUTCH CYL. |
| 2 | 504061734 | ACCELERATOR PEDAL |
| 3 | 500319244 | LIGHT STOP SWITCH |
| 4 | 500365771 | SWITCH |
| 5 | 504073722 | OIL TANK ASSY |
| 6 | 42546129 | WASHER |
| 7 | 42547928 | LOCK PLUG |
| 8 | 504266136 | WATER PIPE |
| 9 | 504090386 | SPRING CLAMP |
| 10 | 16585870 | HEXAGON BOLT M6X20 |
| 11 | 69500830 | ELECTR.CONTR.UNIT for Heather plug |
| 12 | 504134675 | FILTER HOSE |
| 13 | 18088293 | CLIP Ø12/20 MM |
| 14 | 99480041 | TANK |
| 15 | 504054445 | CABLE STRAP |
