S30ENT422.70A002

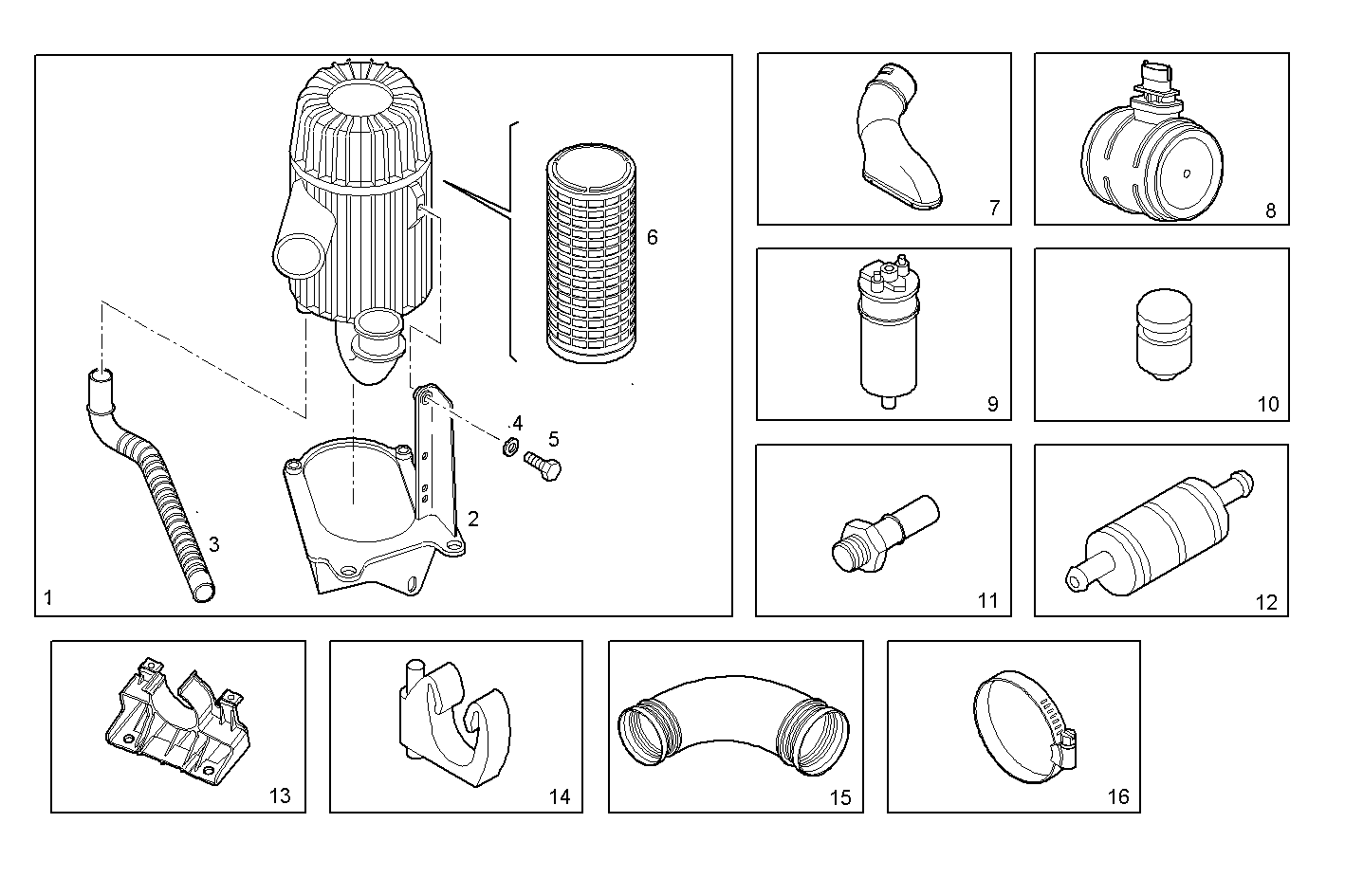

8600.347/03 ACCESSORIES
| Item | Part number | Description |
|---|---|---|
| 1 | 504079907 | AIR CLEANER ASSY |
| 2 | 504023257 | FASTENING BRACKET |
| 3 | 500396509 | BREATHER PIPE |
| 4 | 12647721 | WASHER Ø6X21 MM SP=1 MM |
| 5 | 16604024 | HEXAGON BOLT M6X35 MM |
| 6 | 1903669 | AIR FILTER ELEMENT |
| 7 | 504193548 | AIR INDUCT.FILTER |
| 8 | 504136035 | METER AIR FÚOW |
| 9 | 504125595 | PUMP Electric for fuel |
| 10 | 8027294 | CHOCKED FILTER INDIC. MECHANICAL |
| 11 | 500344937 | THREADED UNION M10X1 |
| 12 | 500318246 | PREFILTER |
| 13 | 504066074 | FASTENING BRACKET |
| 14 | 500350985 | SPRING CLAMP |
| 15 | 504134674 | FILTER HOSE |
| 16 | 17765193 | CLIP Ø70/90 MM |
