S30ENT422.70A002

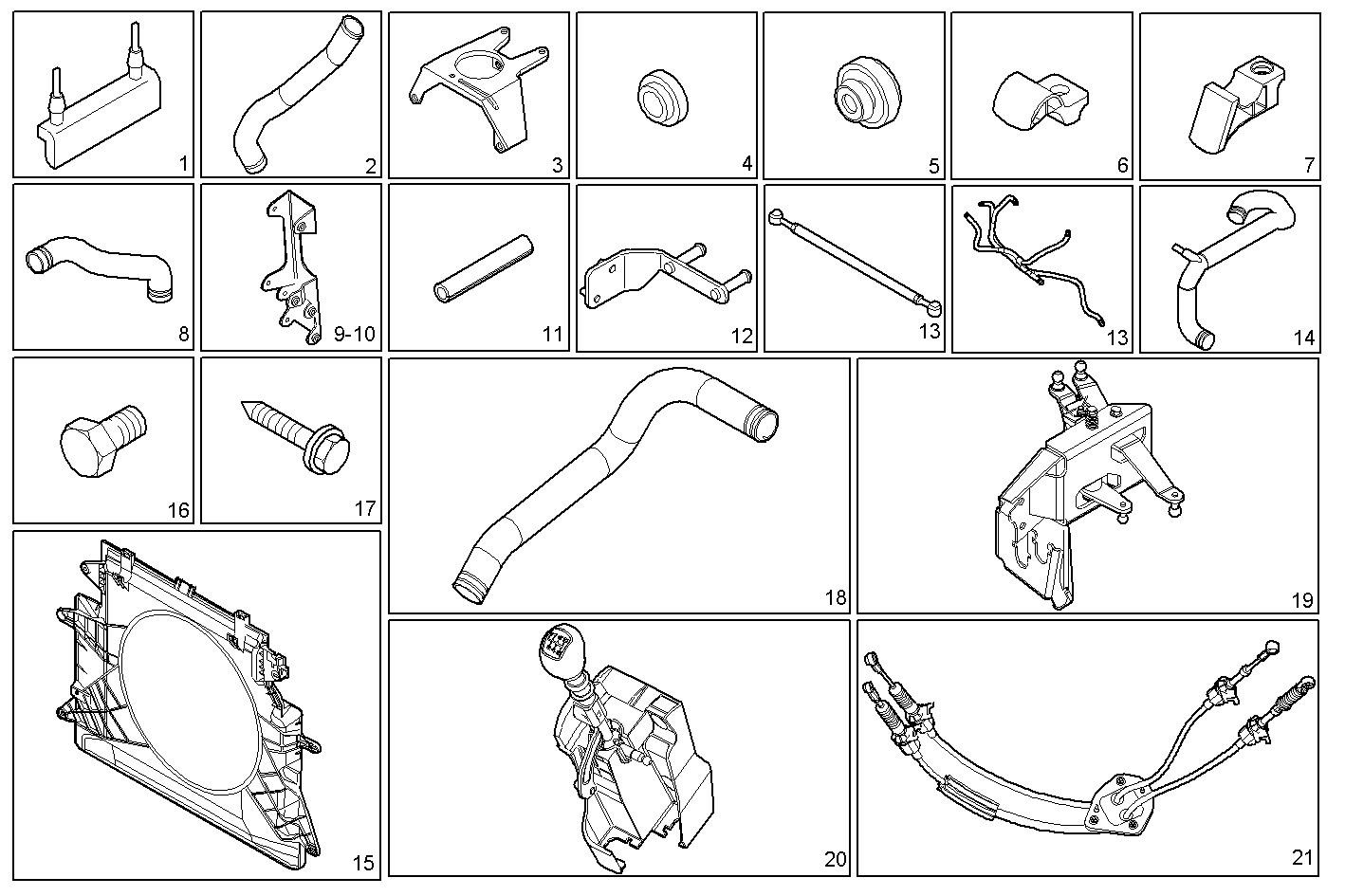

8600.347/05 ACCESSORIES
| Item |
Part number |
Description |
|
1 |
500326747 |
RUBBER GASKET |
|
2 |
504300628 |
RUBBER SLEEVE |
|
3 |
504075173 |
RETAINER |
|
4 |
500333117 |
DOWEL |
|
5 |
500339000 |
SPRING SLEEVE |
|
6 |
504104447 |
RETAINER |
|
7 |
504104446 |
RETAINER |
|
8 |
504136611 |
RUBBER SLEEVE |
|
9 |
99487945 |
RETAINER LEFT |
|
10 |
500333124 |
RETAINER RIGHT |
|
11 |
500333118 |
SPACING BAR |
|
12 |
504141543 |
RETAINER |
|
13 |
504266136 |
WATER PIPE |
|
13 |
504187067 |
TIE ROD |
|
14 |
504215702 |
WATER HOSE |
|
15 |
504104444 |
AIR HOOD |
|
16 |
18139124 |
HEXAGON BOLT |
|
17 |
16883405 |
CUTTING SCREW |
|
18 |
504136609 |
WATER PIPE |
|
19 |
504187018 |
ANGLE DRIVE |
|
20 |
5801260777 |
SUPPORT |
|
21 |
504189881 |
FLEXIBLE CONTROL |
