S30ENT422.80A002

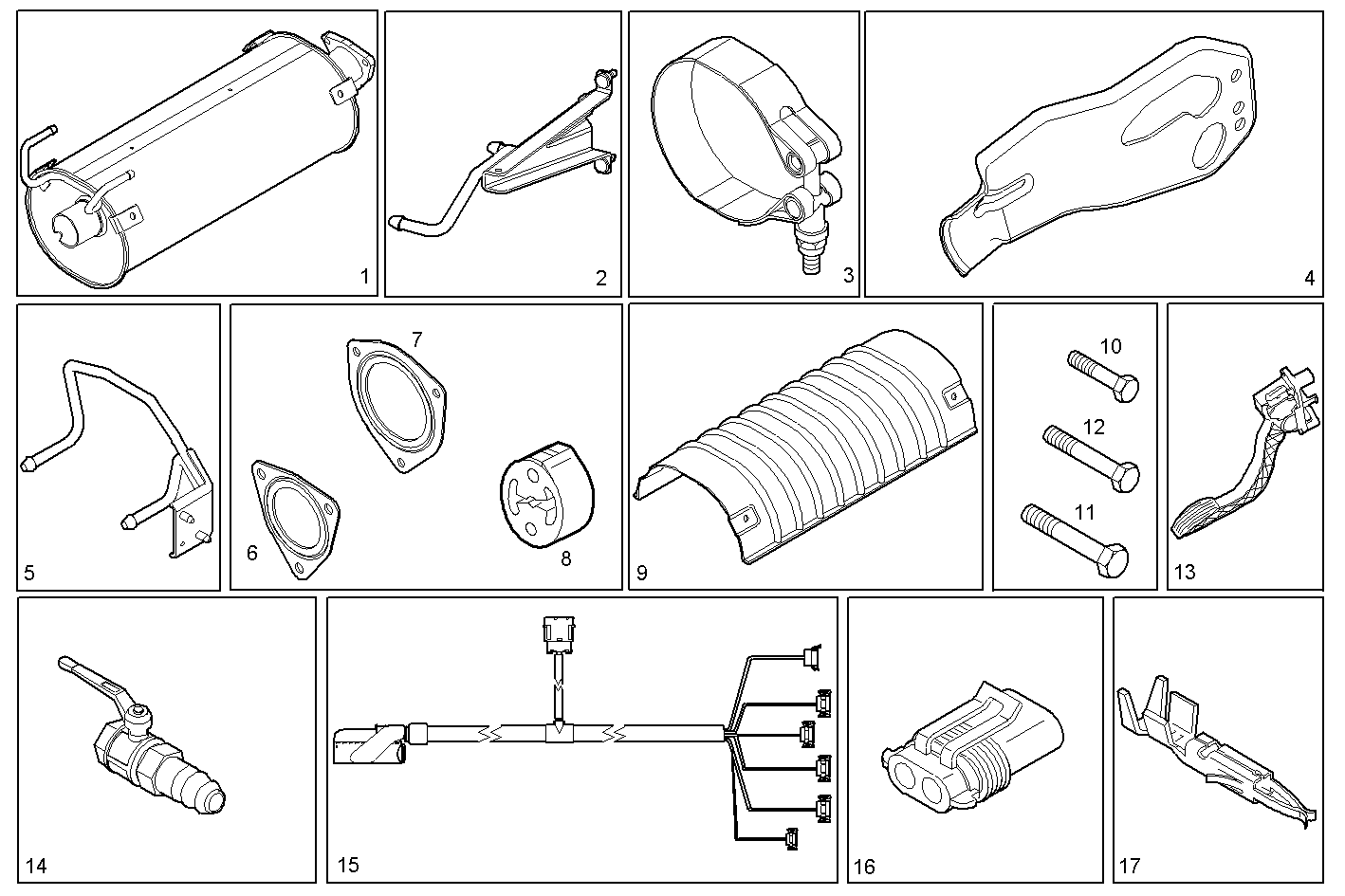

8600.015/03 ACCESSORIES

Iveco/FPT ACCESSORIES

Item Part number Description
1 504131265 SILENCER [UP TO 22/02/08]
2 504041802 FASTENING BRACKET
3 504131267 CLIP
4 504166349 RETAINER
5 504131268 RETAINER for D.P.F.
6 504131269 GASKET FRONT PIPE/D.P.F.
7 504131270 GASKET D.P.F./SILENCER
8 504131271 RUBBER LUG
9 504129350 PROTECTION for Silencer
10 16596924 HEXAGON BOLT M6X10 MM
11 16587125 HEXAGON BOLT M10X25 MM
12 16673635 HEXAGON BOLT M8X1.25X20
13 504061734 ACCELERATOR PEDAL
14 77363342 DRAIN COCK
15 8047027 ENGINE HARNESS [UP TO 22/02/08]
16 8029084 CONNECTION kit for accelerator pedal
17 99488897 TERMINAL
