S30ENT422.91L003

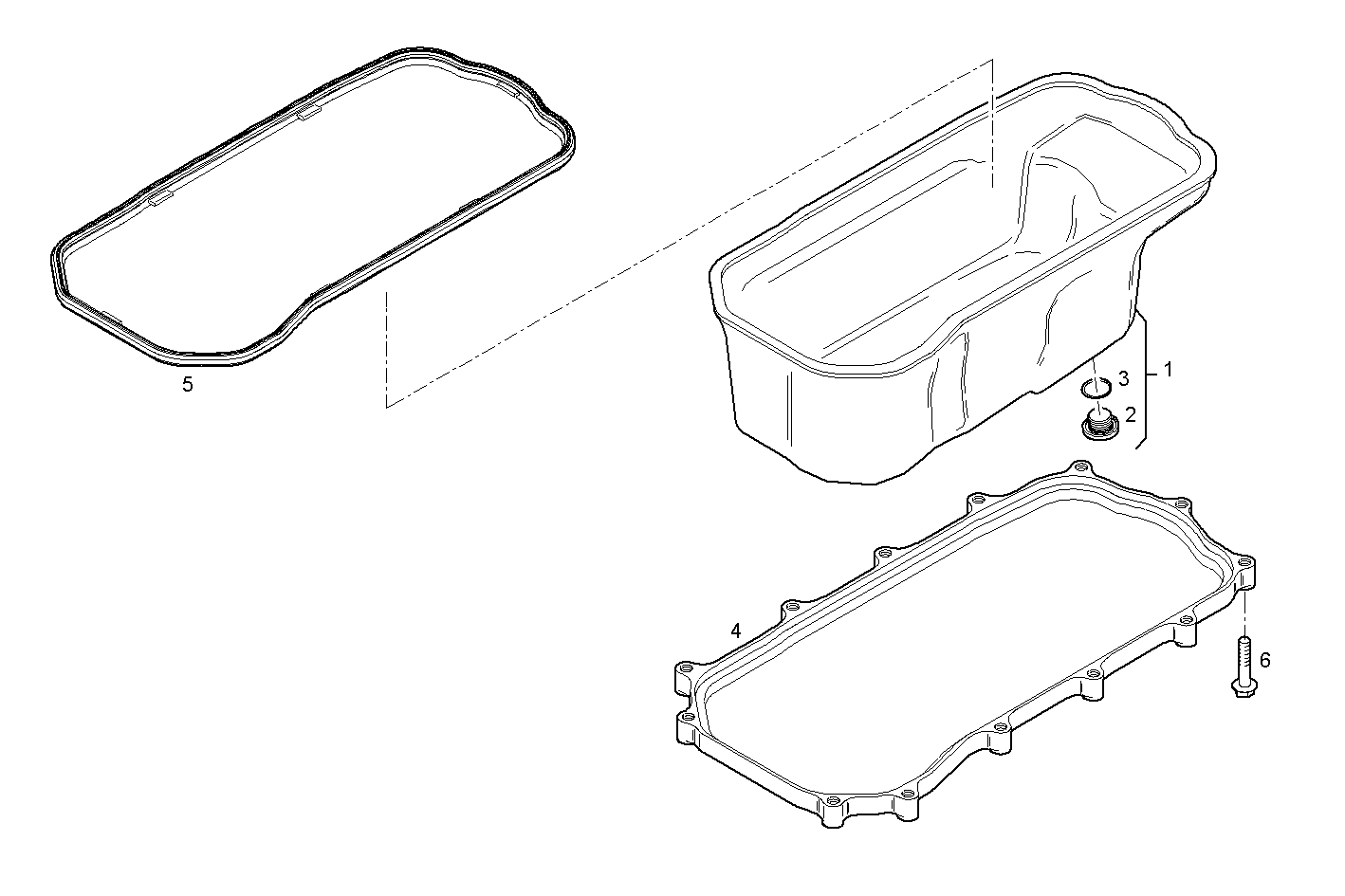

0420.029 OIL SUMP
| Item | Part number | Description |
|---|---|---|
| 1 | 8048490 | OIL SUMP |
| 2 | 4894139 | THREADED PLUG M22X1,5 |
| 3 | 17282280 | O-RING Ø2,62X23,47 MM |
| 4 | 504083379 | SPACING BAR |
| 5 | 504083813 | OIL SUMP GASKET |
| 6 | 16586625 | HEXAGON BOLT M8X35 MM |
