S30ENT422.91L003

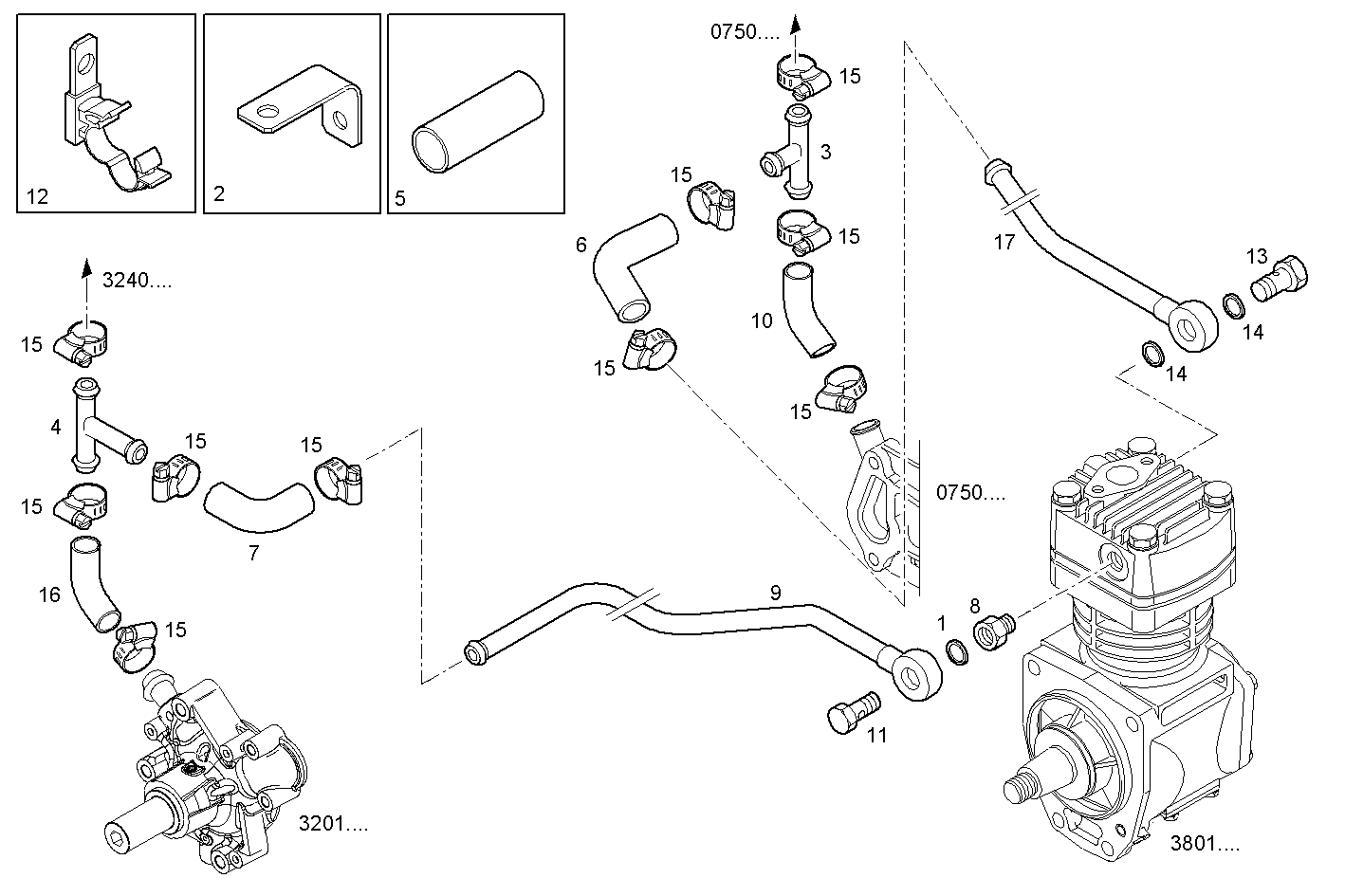

3801.016 AIR COMPRESSOR
| Item | Part number | Description |
|---|---|---|
| 1 | 98474308 | SEAL GASKET Ø14X22 MM |
| 2 | 8100819 | RETAINER |
| 3 | 8048760 | CONNECTION PIPE |
| 4 | 8048761 | CONNECTION PIPE |
| 5 | 17737687 | WATER HOSE |
| 6 | 8048829 | RUBBER SLEEVE |
| 7 | 8005430 | RUBBER SLEEVE |
| 8 | 4928330 | PIPE SOCKET M16X1,5/M14X1,5 |
| 9 | 8048882 | WATER PIPE |
| 10 | 8048909 | RUBBER SLEEVE |
| 11 | 504266555 | BANJO BOLT M14X1,5X30 MM |
| 12 | 99453771 | RETAINER |
| 13 | 504081282 | SCREW CONNECTOR M16X1,5 |
| 14 | 98474309 | WASHER Ø16X24 MM SP=1,9 MM |
| 15 | 17764594 | HOSE CLIP |
| 16 | 8048908 | RUBBER SLEEVE |
| 17 | 8048880 | WATER PIPE |
