S30ENT422.91L003

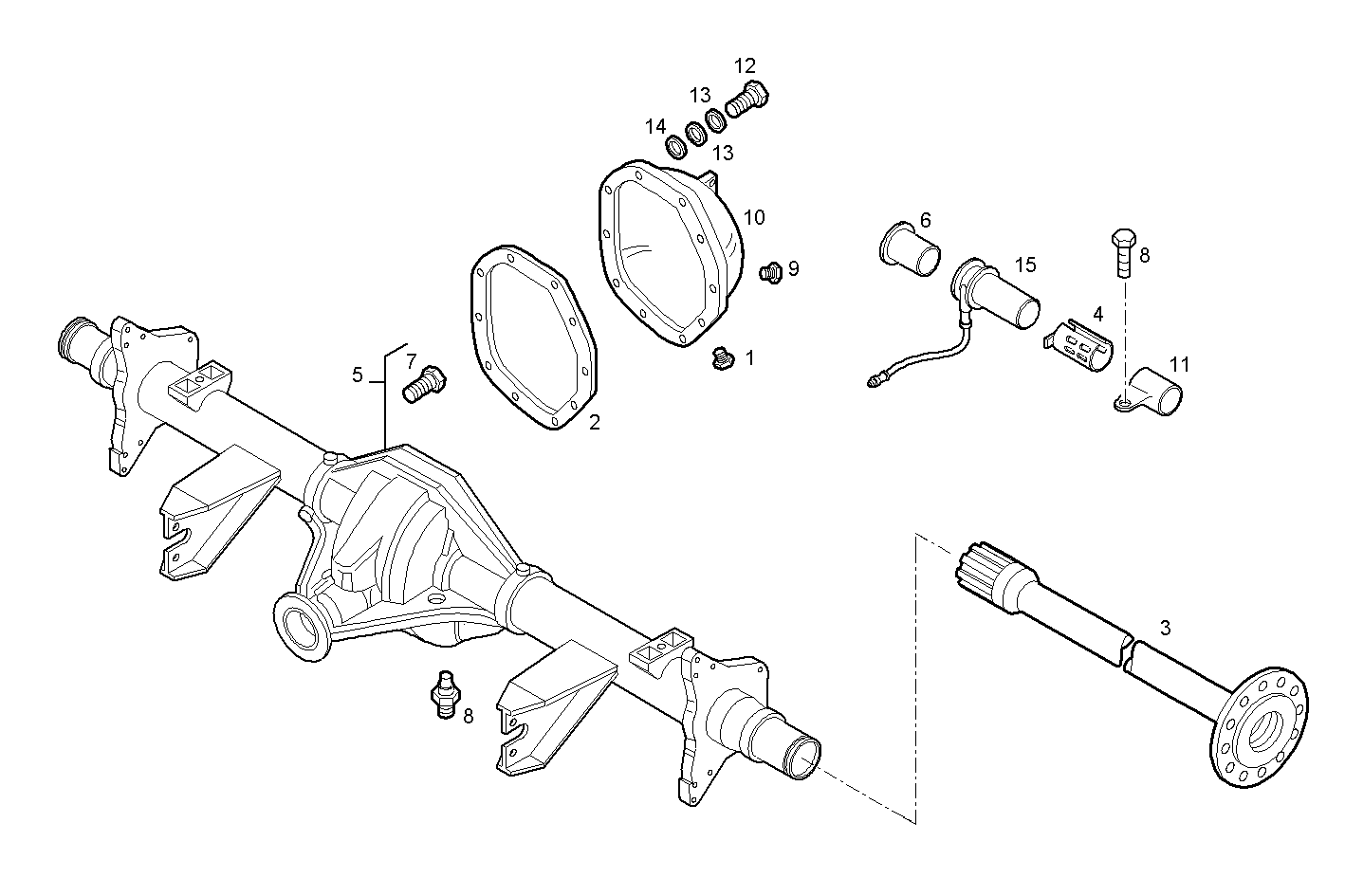

522410.000/02 REAR AXLE - components
| Item | Part number | Description |
|---|---|---|
| 1 | 16998511 | THREADED PLUG M22X1,5 |
| 2 | 7172786 | GASKET |
| 3 | 7172991 | SIDE SHAFT |
| 4 | 99475788 | BUSH |
| 5 | 46390833 | REAR AXLE BODY |
| 6 | 99433826 | RUBBER PLUG |
| 7 | 16678934 | HEXAGON BOLT M12X80 MM |
| 8 | 18127774 | HEXAGON BOLT |
| 9 | 16996511 | THREADED PLUG M22X1,5 |
| 10 | 7175682 | COVER |
| 11 | 7180041 | SUPPORT |
| 12 | 16625434 | HEXAGON BOLT M8X20 MM |
| 13 | 12654421 | WASHER SP=3 MM |
| 14 | 17089574 | WASHER Ø8X16 MM |
| 15 | 504007426 | SENSOR |
