S30ENT425.10A001

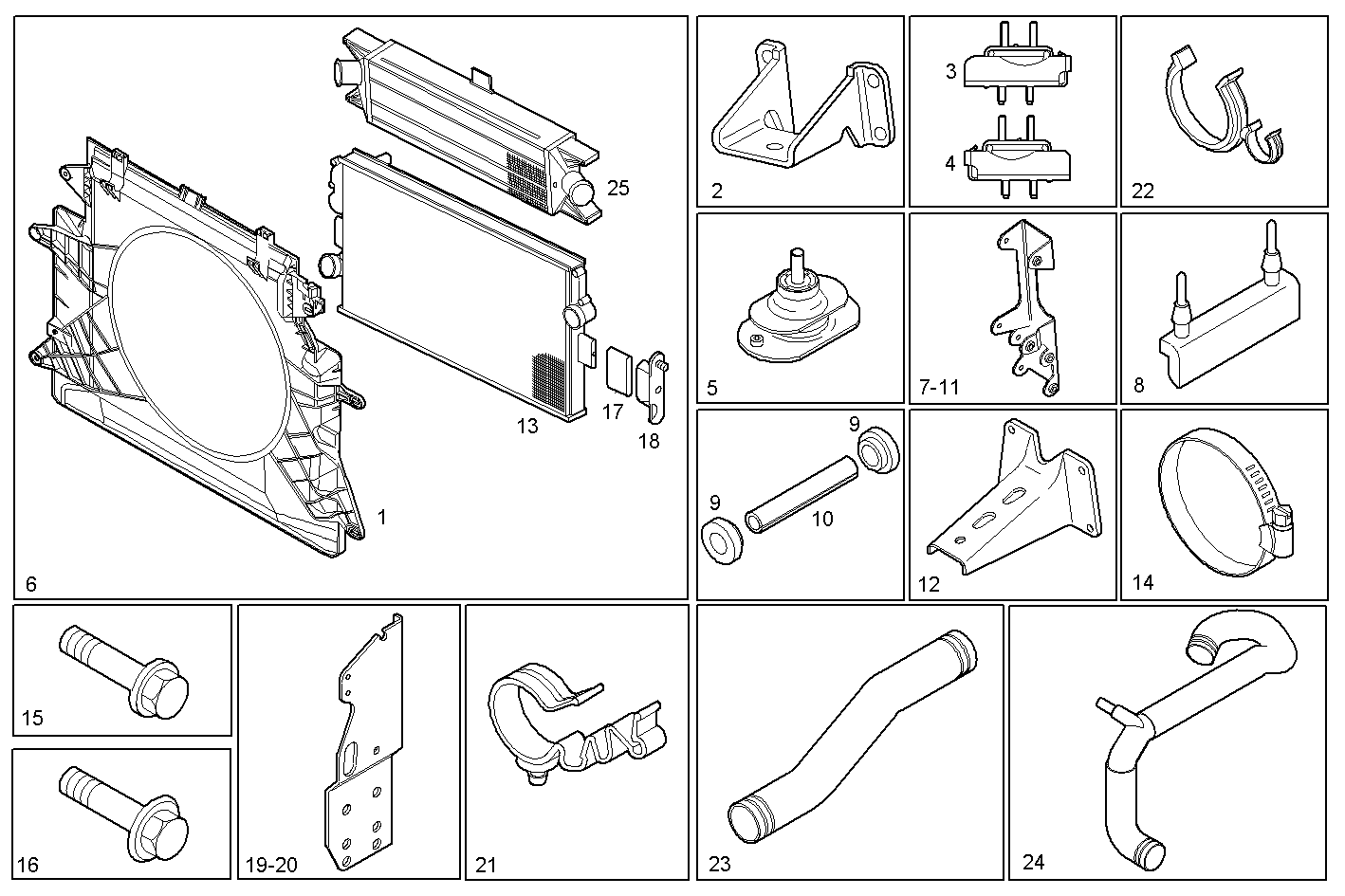

8600.330/01 ACCESSORIES
| Item |
Part number |
Description |
|
1 |
504104444 |
AIR HOOD |
|
2 |
504074160 |
RETAINER |
|
3 |
504046292 |
ENGINE SILENTBLOCK RIGHT |
|
4 |
504046294 |
ENGINE SILENTBLOCK LEFT |
|
5 |
504074159 |
DOWEL |
|
6 |
504068679 |
WATER RADIATOR ASSY |
|
7 |
99487945 |
RETAINER LEFT |
|
8 |
500326747 |
RUBBER GASKET |
|
9 |
500333117 |
DOWEL |
|
10 |
500333118 |
SPACING BAR |
|
11 |
500333124 |
RETAINER RIGHT |
|
12 |
500339815 |
BRACKET SIDE FRAME |
|
13 |
504084141 |
WATER RADIATOR |
|
14 |
18088692 |
HOSE CLIP m32-50 |
|
15 |
16883405 |
CUTTING SCREW |
|
16 |
18139224 |
HEXAGON BOLT |
|
17 |
93809291 |
RUBBER PAD |
|
18 |
93810564 |
SUPPORT |
|
19 |
504052019 |
RETAINER LEFT |
|
20 |
504052020 |
RETAINER RIGHT |
|
21 |
504057429 |
SPRING CLAMP |
|
22 |
504074141 |
SPRING CLAMP |
|
23 |
504086541 |
WATER HOSE |
|
24 |
504215702 |
WATER HOSE |
|
25 |
504084140 |
INTERCOOLER |
