S30ENTC24.00L008

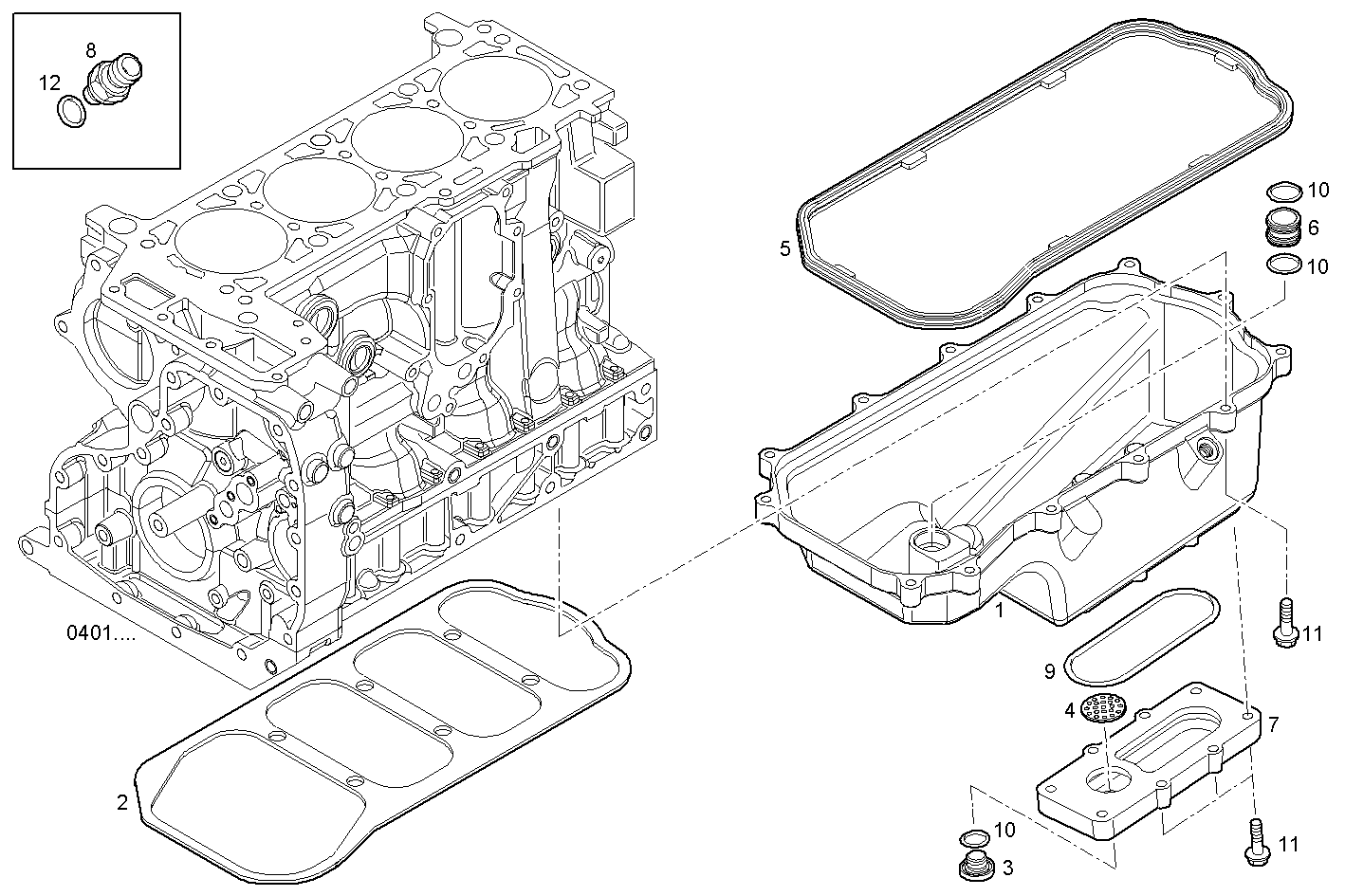

0420.041 OIL SUMP
| Item | Part number | Description |
|---|---|---|
| 1 | 504256800 | OIL SUMP |
| 2 | 504253730 | OIL TRAY |
| 3 | 504152596 | THREADED PLUG M22X1,5 |
| 4 | 504112881 | STRAINER |
| 5 | 504083813 | OIL SUMP GASKET |
| 6 | 504074863 | BEARING HOUSING |
| 7 | 504064758 | STIFFENING PLATE |
| 8 | 504033691 | THREADED UNION |
| 9 | 17292781 | O-RING Ø142,50X3,53 MM |
| 10 | 17282281 | O-RING 2,62x23,47 |
| 11 | 16586625 | HEXAGON BOLT M8X35 MM |
| 12 | 11270460 | GASKET Ø17X21X1,5 MM |
