S30ENTC24.00L008

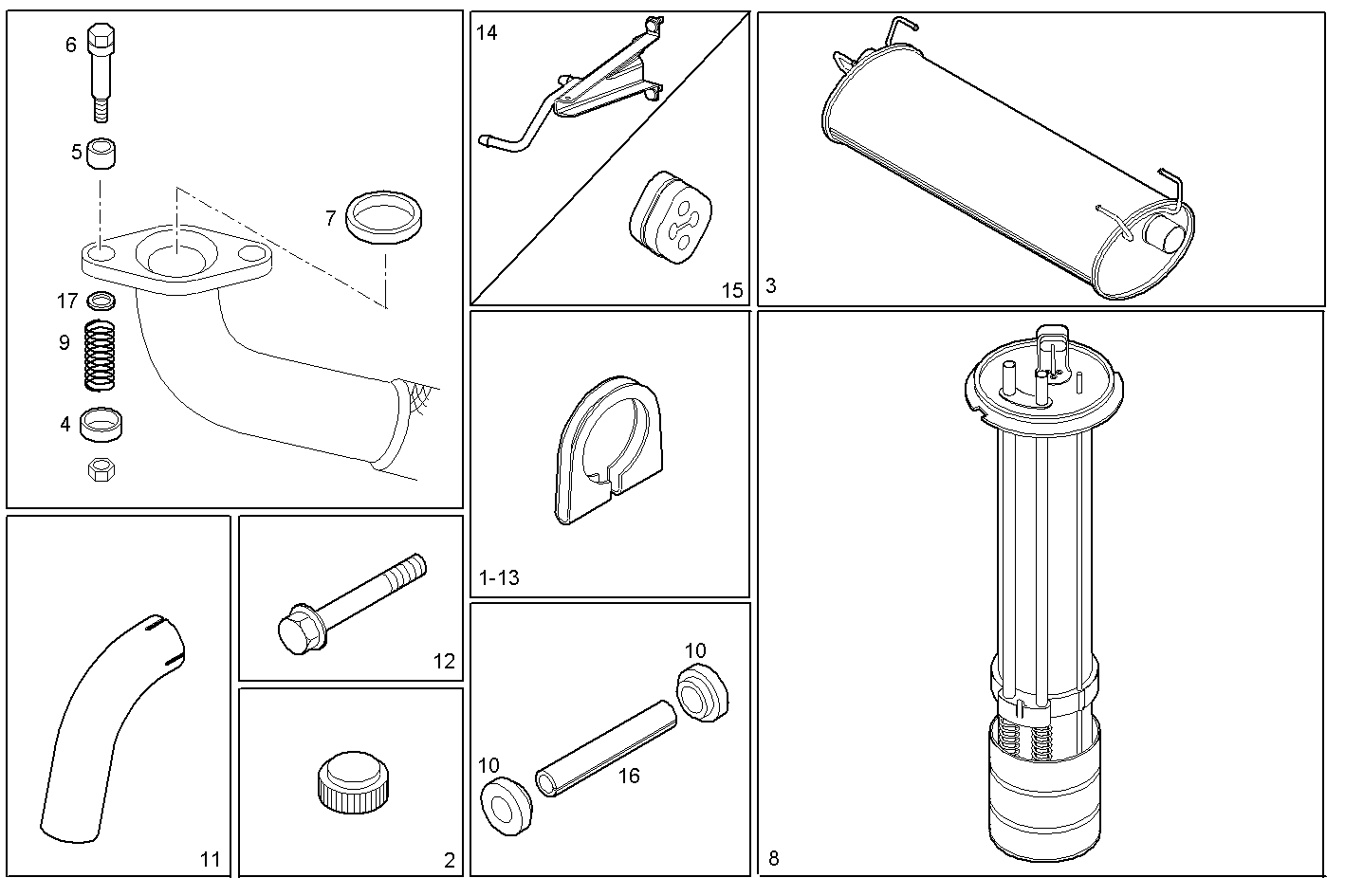

8600.351/02 ACCESSORIES
| Item | Part number | Description |
|---|---|---|
| 1 | 8582510 | CLIP |
| 2 | 500025735 | LOCKABLE FUEL CAP |
| 3 | 500329483 | SILENCER |
| 4 | 9150917480 | COVER |
| 5 | 9150951680 | BUSH |
| 6 | 9152127080 | SCREW |
| 7 | 9603895480 | RING |
| 8 | 504075430 | LEVEL SENSOR |
| 9 | 9607970680 | SPRING |
| 10 | 500333117 | DOWEL |
| 11 | 500314665 | TAIL PIPE |
| 12 | 16598425 | HEXAGON BOLT M8X110 MM |
| 13 | 8585923 | CLIP |
| 14 | 500329484 | FASTENING BRACKET |
| 15 | 500329485 | RUBBER LUG |
| 16 | 500333118 | SPACING BAR |
| 17 | 9603945980 | WASHER |
