S30ENTC24.00L008

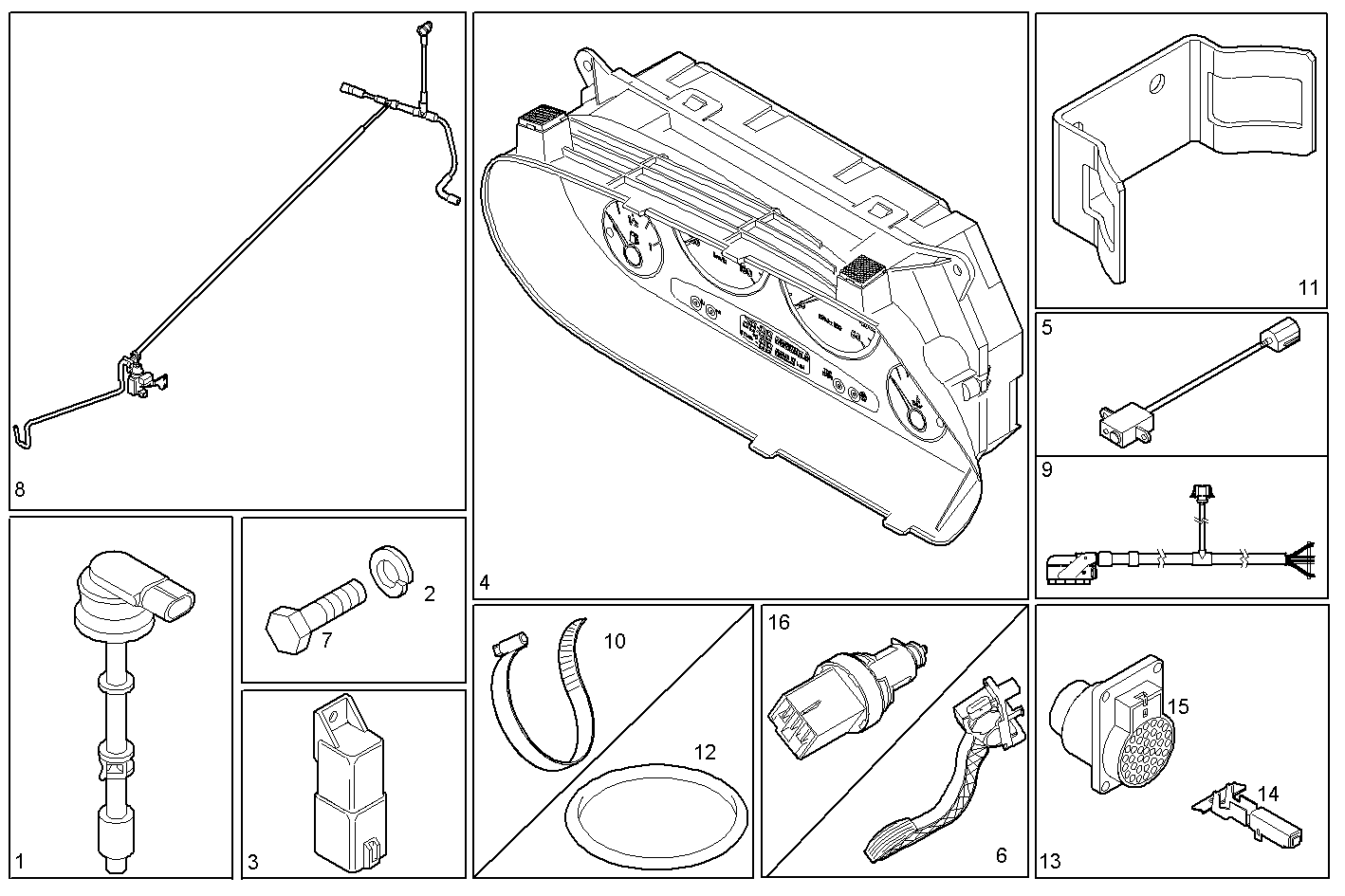

8600.351/03 ACCESSORIES
| Item | Part number | Description |
|---|---|---|
| 1 | 93192923 | SWITCH |
| 2 | 17088474 | WASHER Ø6X12 MM |
| 3 | 504013085 | ELECTR.CONTR.UNIT PREHEATER CONTROL |
| 4 | 504055190 | SPEEDOMETER |
| 5 | 99464594 | SWITCH for "Blink code" |
| 6 | 504061734 | ACCELERATOR PEDAL |
| 7 | 16603734 | HEXAGON BOLT M6X20 MM |
| 8 | 500354366 | HOSE for vacuum pump |
| 9 | 8045773 | ENGINE HARNESS |
| 10 | 8588943 | CABLE STRAP |
| 11 | 93828867 | RETAINER |
| 12 | 14471181 | O-RING Ø46,99x5,33 MM |
| 13 | 8031432 | WIRE CONNECTOR assy 30 pin female |
| 14 | 99462549 | TERMINAL |
| 15 | 504013633 | CONNECTION |
| 16 | 500319244 | LIGHT STOP SWITCH |
