S30ENTG20.00A002

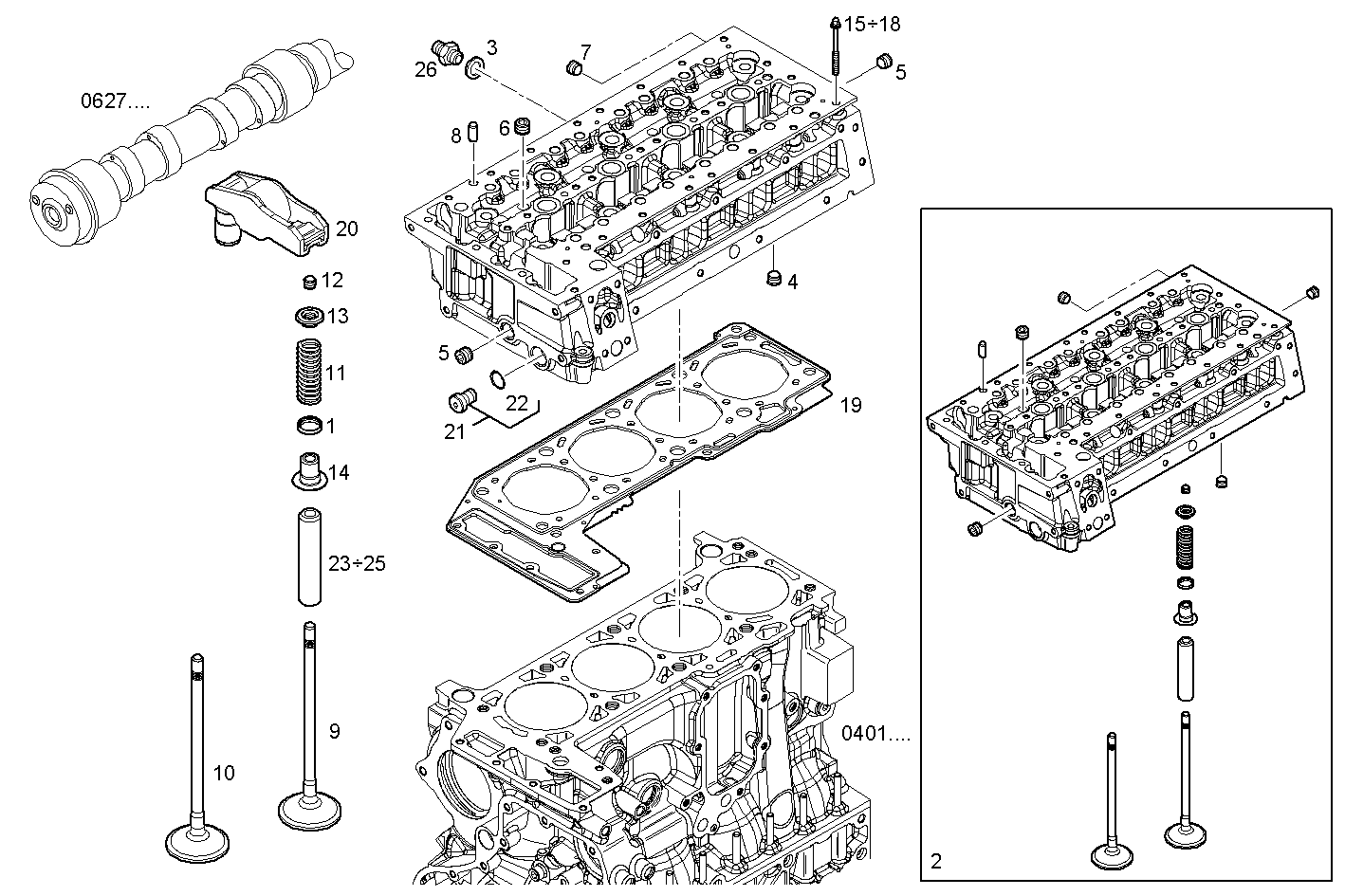

0610.024 CYLINDER HEAD
| Item | Part number | Description |
|---|---|---|
| 1 | 504075442 | VALVE SEAT STD. |
| 2 | 504278047 | CYLINDER HEAD |
| 3 | 504077652 | WASHER |
| 4 | 504113860 | THREADED PLUG DIAM=1/2" |
| 5 | 504051237 | THREADED PLUG DIAM=1/4" |
| 6 | 504051238 | THREADED PLUG DIAM=3/8" |
| 7 | 504051236 | THREADED PLUG DIAM=1/8" |
| 8 | 504087365 | DOWEL PIN |
| 9 | 504072531 | INLET VALVE |
| 10 | 504081062 | EXHAUST VALVE |
| 11 | 500348686 | ENGINE VALV.SPRING |
| 12 | 14194670 | VALVE CONE |
| 13 | 500348685 | SPRING CAP |
| 14 | 500395378 | CAP |
| 15 | 504081515 | CYL.HEAD STUD M15X1,5 |
| 16 | 504081531 | CYL.HEAD STUD M12X1.5 |
| 17 | 504081543 | CYL.HEAD STUD M8X1.25 |
| 18 | 504081546 | CYL.HEAD STUD M8X1.25 |
| 19 | 504093499 | CYL.HEAD GASKET SP=1,2 MM |
| 20 | 504074464 | ROCKER ARM |
| 21 | 504113994 | THREADED PLUG M14X1,5 |
| 22 | 99489024 | SEAL GASKET dia. 26x36x1,5 |
| 23 | 504053804 | VALVE GUIDE +0,05 MM |
| 24 | 504053805 | VALVE GUIDE +0.10 |
| 25 | 504053806 | VALVE GUIDE +0.25 |
| 26 | 504033677 | THREADED UNION DIAM=1/4" |
